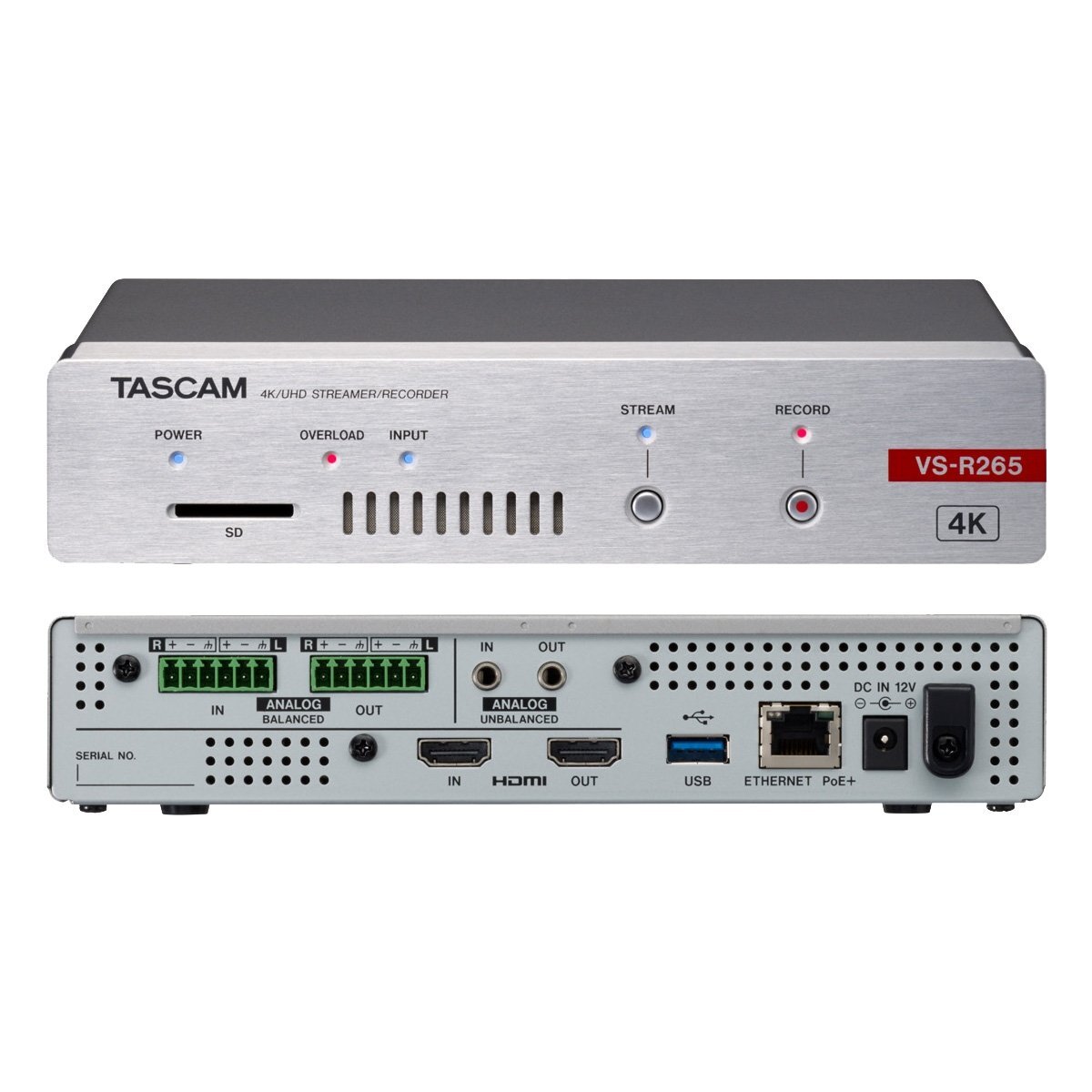

TASCAM VS-R265 4k Av Stream Encoder/decoder

Product Information VS-R265 4K/UHD AV Over IP Live Streaming EncoderThe VS-R265 is a 4K/UHD AV over IP streaming encoder and decoder that simultaneously records, encodes, streams, and decodes 4K video streams (3840x2160) using High Efficiency Video Coding (HEVC), a high efficiency coding scheme that delivers H.264 video quality at half the bit rate. Specifications VS-R264 VS-R265 Video HDMI IN Connector HDMI v1.4a (Type A) HDMI OUT Connector HDMI v2.0 (Type A) Input Resolutions 2160p - 30/ 29.97/ 25 / 24 / 23.98 fps 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps 720p 60 / 59.94 / 50 fps 576p 50 fps 480p 60 / 59.94 fps Frame Rate Limit on/off Encode Scalling Resolutions Passthru / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p Passthru / 3840x2160p / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p Encode Format H.264 (Baseline / Main/High) H.264 / H.265 Encode bitrates 500k to 30M bps Bitrate Control Variable / Constant key frame interva 0.25-1.00-16.5(sec) or 3-1000(frame) Audio Analog Audio inputs (UNBALANCED) Connector 3.5mm Stereo mini jack Nominal input level -10dBV (0.316Vrms) Maximum input level +6dBV (2.0Vrms) Analog Audio inputs (BALANCED) Connector Euroblock (balanced) 3.81 mm pitch Nominal input level +4dBu(1.23Vrms, Ref.Level other than -9dBFS)+6dBu(1.55Vrms, Ref.Level -9dBFS) Maximum input level +15dBu(4.36Vrms, Ref.Level -9dBFS)+18dBu(6.16Vrms, Ref.Level -14dBFS)+20dBu(7.75Vrms, Ref.Level -16dBFS) Analog Audio outputs (UNBALANCED) Connector 3.5mm Stereo mini jack Nominal output level -10dBV (0.316Vrms) Maximum output level +6dBV (2.0Vrms) Analog Audio outputs (BALANCED) Connector Euroblock (balanced) 3.81 mm pitch Nominal output level +4dBu(1.23Vrms) Maximum output level +15dBu(4.36Vrms, Ref.Level -9dBFS)+18dBu(6.16Vrms, Ref.Level -14dBFS)+20dBu(7.75Vrms, Ref.Level -16dBFS) Output Volume -?, -72 to +6dB (1dB step) Audio Codec AAC, 64k to 512k bps, 32k/44.1k/48k Hz Storage Storage Media USB Drive, SD/SDHC card USB Connection USB3.0 A-type Record Bit Rates 500k to 30M bps Stream Video Transport Protocols RTMP / RTSP / HLS / Unicast / Multicast Simultaneous Streaming 1 x RTMP / 2 x Unicast / 1 x Multicast Stream Bit Rates 500k to 30M bps Network Network Connectivity 1Gb Ethernet Full-featured web browser based UI Designed for tablets and desktopsEncoder and decoder configuration for unicast, multicast and RTMP IP Address DHCP (Default) / Static Command and Control HTTPAuto-detect and discover other TASCAM encoder and decoder units on subnet. Other Power PoE+,TASCAM PS-P1220E AC adapter (sold separately) Dimensions 214(W) × 44.5(H) × 136.1(D)mm (including protrusions) Weight 0.85kg Operating temperature range 0 to 40 °C Included items Installation brackets, Euroblock plugs, Cable band kit, USB memory(including Discovery app, reference Manual), Quick Start guide, warranty
