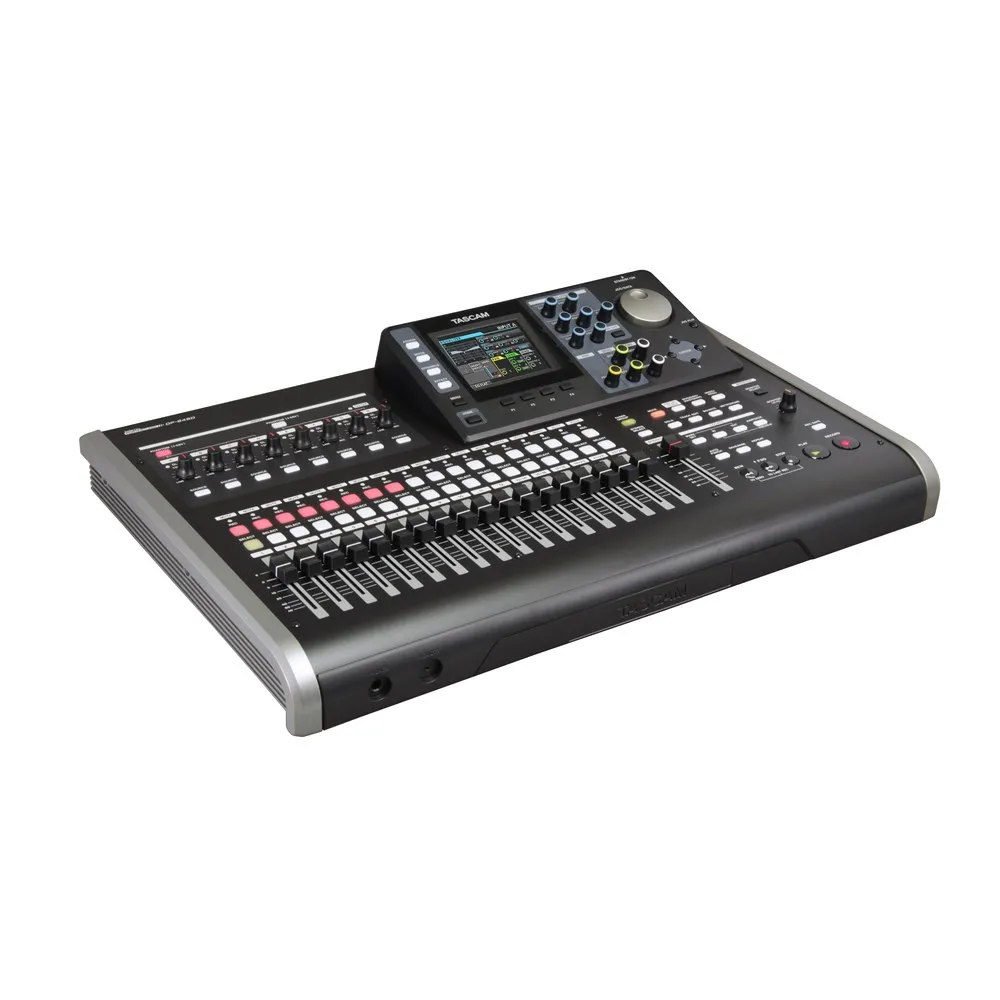

Tascam DP-24SD 24-Track Digital Portastudio with 8-Track Simultaneous Recording, Effects, and Solid-State Storage

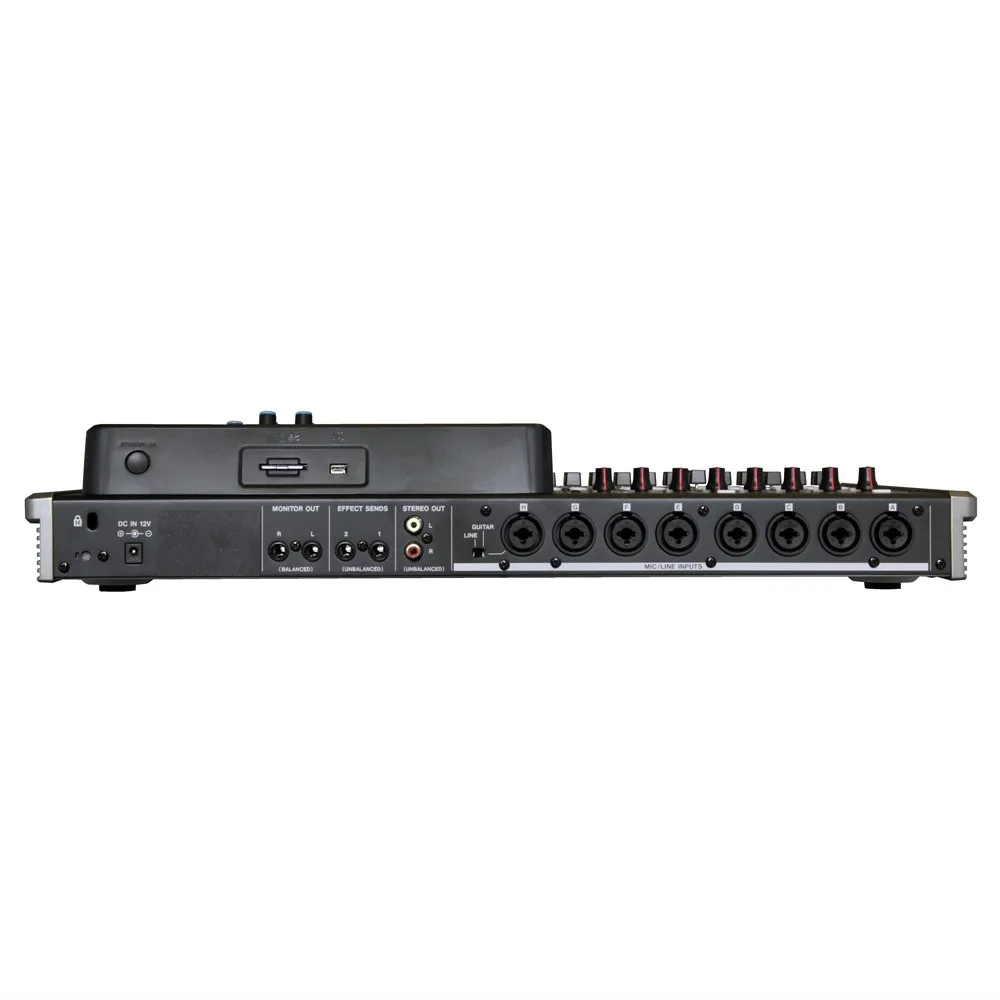

DP-24SD 24-Track Digital Portastudio The TASCAM DP-24SD Digital Portastudio records 24 tracks to solid-state drive, with up to eight track simultaneous recording via XLR and 1/4" combo jacks. Input processing includes compression and limiting, as well as guitar amp simulation and multi-effects for use with the instrument-level input. The color display and channel strip knobs make mixing fast and creative, and the included 4GB SD card can be replaced with up to 32GB SDHC media or swapped with other cards between projects for up to 50 hours of music. Record your entire band with 8 track simultaneous recording The DP-24SD has 8 XLR-TRS combo inputs that can withstand multi-microphone recording with drums. Phantom power supply is also possible, with the INPUT H compatible with direct guitar inputs. With dynamic effects, which are indispensable for high-quality recording, up to 8 effects can be used for each input. In addition, the DP-24SD comes with built-in guitar multi-effects, tuner, and metronome, allowing users to complete recording preparations with this device alone. The most intuitive recording workstation ever lets you focus on capturing your best performance. You don't need a PHD in studio recording to sound like a pro with the TASCAM DP-24DS Portastudio. We put everything you need at your fingertips so you can see and control everything that's happening. Full-color LCD screens and self-illuminated buttons visually communicate the recording process, and everything from level setting, compression, and limiting happens with sturdy sliders, buttons, and knobs. The TASCAM DP-24DS's intuitive design allows you to quickly dive deeper into any setting without distracting you from your creative session Solid State Storage for No Moving Parts The DP-24SD uses SD/SDHC media to ensure secure shock resistance as stores files as FAT 16 or 32 format. You can also transfer the recorded files Effects and Processing Power for Polished Productions Use up to 8 dynamics effects at once, one for each input source, for unlimited sound! Each of the effect blocks (Compressor, Exciter, Amp, Modulation, Delay, and Reverb) features many studio-quality variations. Additional Features Features at a Glance Simultaneous 24-track playback 8 mono tracks + 8 mono/stereo selectable tracks Simultaneous 8-track recording 44.1k or 48 kHz, 16 or 24-bit recording 8 XLR/TRS combo connectors Phantom power supplied on all inputs (INPUT A-D,E-H) High-impedance input available (INPUT H) Stereo RCA output 2 effect send outputs (1/4" TS jack) 70mW/ch headphone amplifier Remote connector for optional RC-3F footswitch INPUT A-H and each track equipped with 3-band EQ Automatic punch in/out Various edit functions (COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT) Undo and Redo function with Undo history Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter) Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser) Mix-down effects (Reverb, Delay, Stereo Chorus) Mastering Effects (Multi-band Compressor, Equalizer, Dither, Normalize) Track bounce function Virtual track (8 virtual track per one track: including use track) Locate mark up to 99 for one song File transferring via USB2.0 Chromatic tuner Metronome 19 Faders Peak-hold function on the level meter of the LCD Sub-frame editing Dedicated AC adapter included (TASCAM GPE248-120200-Z) SD card included RoHS certified Simultaneous 24-track playback 8 mono tracks + 8 mono/stereo selectable tracks Simultaneous 8-track recording 44.1k or 48 kHz, 16 or 24-bit recording 8 XLR/TRS combo connectors Phantom power supplied on all inputs (INPUT A-D,E-H) High-impedance input available (INPUT H) Stereo RCA output 2 effect send outputs (1/4" TS jack) 70mW/ch headphone amplifier Remote connector for optional RC-3F footswitch INPUT A-H and each track equipped with 3-band EQ Automatic punch in/out Various edit functions (COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT) Undo and Redo function with Undo history Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter) Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser) Mix-down effects (Reverb, Delay, Stereo Chorus) Mastering Effects (Multi-band Compressor, Equalizer, Dither, Normalize) Track bounce function Virtual track (8 virtual track per one track: including use track) Locate mark up to 99 for one song File transferring via USB2.0 Chromatic tuner Metronome 19 Faders Peak-hold function on the level meter of the LCD Sub-frame editing Dedicated AC adapter included (TASCAM GPE248-120200-Z) SD card included RoHS certified DP-24, DP-24SD and DP-32 firmware update PRODUCT Media Player / Recorder Portable Handheld / Field Recorder Audio Recorder for Video Multitrack Recorder Digital Recording & Mixing Console Recording Mixer Audio Interface Podcast Mixer & Streaming Dante Processors Headphones & Microphones Installation Products Clock Generator / Mic Preamp LEARN TASCAM Magazine Link Applications Heritage News Blog Tech Knowledge Video/Audio News SUPPORT Contact Support TASCAM ID Downloads OS & Tested Media Contact the Repair Department Distributors Dealers FAQ YOUR ACCOUNT TASCAM ID Privacy Policy Trademarks Terms Please choose your language.
