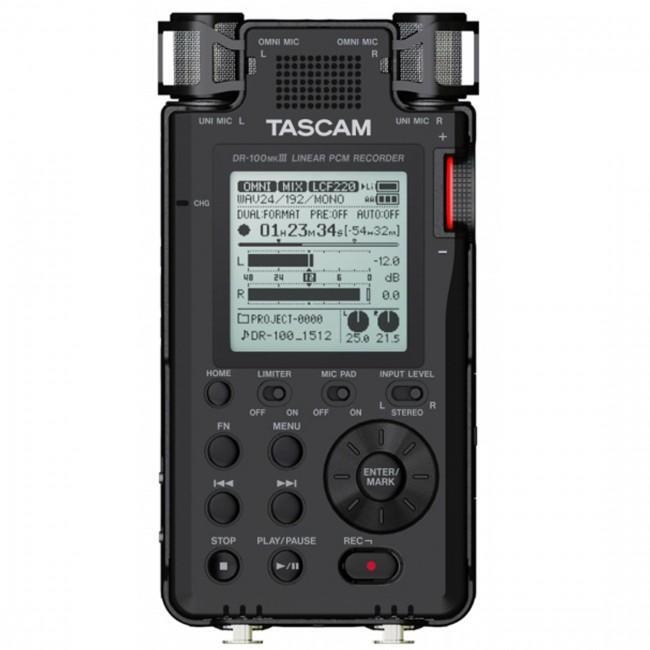

TASCAM Portable Digital Recorder Mk Iii

Product Information: Road-ready, studio-quality 192Khz/24bit compatible linear PCM recorder TASCAM’s top-of-the-line Handheld Digital Recorder, the DR-100mkIII boasts a signal-to-noise ratio exceeding 100dB, delivering the best audio performance in the history of TASCAM portable stereo recorders. Designed to meet the needs of the most demanding audio designers and engineers, this new model combines robust reliability, an updated user interface and studio quality sonic performance to deliver a truly breathtaking audio experience. The pinnacle of two-channel performace Used in a variety of combinations, depending upon the selected function, the DR-100mkIII features dual AKM AK4558 converters with VELVET SOUND architecture, providing both high sound quality and low power consumption, achieving a signal-to-noise ratio of 102dB The DR-100mkIII uses two independent AK4558 ADC converters. By eliminating interference between left and right channels, signal-to-noise ratio is maximized and audio fidelity is improved. In addition, each of those AD converters can work in a Dual ADC mode. The two AD converters work in tandem then combine their results for a 109dB S/N ratio, beating the (already excellent) 102dB S/N ratio achieved when recording in standard mode. Note: As the S/N ratio when recording exceeds the S/N ratio of the entire circuit, data recorded in dual mono ADC mode will be limited to a 102dB S/N ratio when played back on the DR-100mkIII. This does not affect the S/N ratio of the actual file, which is maintained at 109dB S/N The XLR/TRS inputs, used to connect external mics, deliver the highest sound quality and lowest noise of any TASCAM Handheld Digital Recorder. HDDA (High Definition Discrete Architecture) mic preamps are also included to maintain a pristine audio signal path throughout A newly designed microphone housing for the directional mics is based on exhaustive research of previous TASCAM handheld recorders and achieves the perfect marriage of protection and performance. Similarly, the omnidirectional stereo microphone setup features a sound pressure level tolerance of 125dB SPL – able to withstand virtually any audio environment - and includes an integrated shock mount structure to suppresses unwanted vibration and handling noise. The TASCAM DR-100mkIII supports high definition recording at both 96kHz/24bit and 192kHz/24, ensuring that remote recordings achieve the same sonic fidelity as their studio-born counterparts TASCAM reliability and features designed for professionals in the field With a dual battery structure that features a built-in high-capacity lithium-ion battery as well as with hot-swappable AA batteries, operation is possible for extended periods of time and is ready to go when you are. Additionally, the DR-100mkIII can be rapidly charged by connecting an AC adapter and even support USB Bus power from an external battery pack commonly used to charge mobile phones and tablets. TASCAM’s exclusive Dual Level Recording function simultaneously records a secondary backup file at a lower gain level than the primary recording. This safety file, recorded at a 12db lower level protects your recording session from unexpected volume spikes and accidental overload. Marrying light weight with long-term reliability, the TASCAM DR-100mkIII’s tough aluminum body ensures many years of trouble-free use. The precision of the built-in clock is crucial when digital recordings made on what device are to be used in conjunction with materials recorded on other devices, such as when combining digital audio and video assets. To ensure stability, the DR-100mkIII utilizes the same Temperature-Compensated Crystal Oscillator (TCXO) used in professional studio master recorders. Moreover, the TCXO is not affected by the temperature of the environment, critical for a portable device which must maintain its precision in support of high-quality recording. Used in a variety of combinations, depending upon the selected function, the DR-100mkIII features dual AKM AK4558 converters with VELVET SOUND architecture, providing both high sound quality and low power consumption, achieving a signal-to-noise ratio of 102dB The TASCAM DR-100mkIII offers improved usability based on user feedback When working on location, decisions must be made quickly and efficiently, and an intuitive and consistent User Interface is critical. By gathering feedback from users of the original DR-100 and the mkII, we have been able to add a variety of usability enhancements designed to streamline workflow and help audio professionals achieve success quickly and efficiently. The user interface has been designed to maximize visual confirmation, and includes a large LCD screen (double the size of the screen on the DR-100mkII), dedicated status LEDs for features such as record levels and status and easy-to-read legends on the casework. Dedicated hardware controls have been implemented for the most commonly accessed features to enable quick, positive operation in the field Dual format recording function allows simultaneous recording of both uncompressed WAV(BWF) and MP3 files. This provides the user with instant access to both the original, full resolution master file and a compressed MP3 file (with a much smaller file size) for easy emailing or posting to social media sites. XRI (eXtended Recording Information) function stores keeps track of all recording settings as part of the file. This powerful features allows the user to easily double-check the details of the original recording for logging or replication of recording conditions at a later date. This information includes date and time of recording, input sources selection and levels, ADC mode on/off status and more. XRI information is stored as part of the BWF data block. Specifications: World class audio performance AKM AK4558 converters with VELVET SOUND architecture deliver a S/N ratio of 102dB Dual mono mode, using independent AK4558 converters for both the left and right channels, provides a S/N ratio of 109dB External microphones supported with XLR/TRS inputs and built-in low-noise HDDA mic preamps Onboard dual (directional/omnidirectional) stereo microphones with integrated shockmounts deliver flexible recording options while retaining professional quality audio performance Supports up to 192kHz/24bit recording Robust design for real-world use Dual battery structure allows the built-in high-capacity lithium-ion battery to be used along with 2 AA batteries AA batteries may be replaced during operation (when using the lithium-ion battery) delivering hours of uninterrupted recording TASCAM’s unique Dual Level recording function allows simultaneous recording of a backup file at a lower gain level Dual format recording function allows simultaneous recording of both WAV and MP3 files Locking XLR/TRS combo jacks made by Amphenol Tough aluminum body to deliver years of reliable use High-precision clock featuring a temperature-compensated crystal oscillator (TCXO) Streamlined operation based on user feedback The user interface has been designed to provide clear visual feedback, and includes both a large LCD screen and dedicated status LEDs Select hardware switches for quick and positive setting control Recording Media SD card(64MB to 2GB), SDHC card(4GB to 32GB), SDXC card(48GB to 128GB) File System FAT16/32 File Format WAV, MP3 Recording/Playback Format WAV 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz, 16/24-bit Quantization bit rate 16bit / 24bit MP3 Sampling frequency 44.1k / 48kHz Recording bit rate 128k / 192k / 256k / 320k bps Number of Channels 2 channels(stereo) Analog Inputs MIC/LINE IN Phantom Power Compatible Connecter XLR-3-31 (1 : GND, 2 : HOT, 3 : COLD) MIC Source is set to MIC Input Impendance 2k ohms Minimum Input Level -70.5dBu (Pad off) Maximum Input Level +2dBu (Pad on) LINE Source is set to LINE Input Impendance 20k ohms Nominal Input Level +4dBu Maximum Input Level +24dBu EXT IN Connector 3.5mm(1/8") Stereo mini jack MIC Source is set to EXT MIC Input Impendance 50k ohms Minimum Input Level -62.8dBu (Pad off) Maximum Input Level -2.8dBu (Pad on) LINE Source is set to EXT LINE Input Impendance 2k ohms Nominal Input Level -10dBv Maximum Input Level +6dBv DIGITAL IN Connector 2.5mm TRS jack (phono adapter included) Format S/PDIF (IEC60958-3) Analog Output LINE OUT Connector 3.5mm(1/8") Stereo mini jack Output Impendance 200 ohms Nominal Output Level -14dBV Maximum Output Level +6dBV PHONES Connector 3.5mm(1/8") Stereo mini jack Maximum Output Better than 40mW+40mW (32ohms loaded) USB Connector micro-B type Format USB 2.0 HIGH SPEED mass storage class REMOTE Connector 2.5mm(3/32") TRS jack Format TASCAM RC-10 / RC-3F Built-in Speaker 0.4W (mono) Power Supply Built-in lithium-ion rechargeable battery (14.2Wh), 2 AA batteries, USB buss power, AC Adapter (TASCAM PS-P520E, sold separately), Exclusive external battery pack (BP-6AA, sold separately) Power Consumption 7.5W(MAX) Battery operation time (Recording) (Recording WAV, 44.1kHz, 16 bit) Built-in lithium-ion rechargeable battery Built-in mics (UNI) Approx 12 hours Mic In with +48V on Approx 6 hours Alkaline batteries (EVOLTA) Built-in mics (UNI) Approx 2 hours Mic In with +48V on Approx 1 hour Ni-MH batteries (eneloop) Built-in mics (UNI) Approx 3 hours, 30 minutes Mic In with +48V on Approx 2 hours, 15 minutes Lithium-ion batteries (Energizer ULTIMATE LITHIUM) Built-in mics (UNI) Approx 7 hours Mic In with +48V on Approx 3 hours Dimensions 3.15(W)×6.13(H)×1.38(D) inch 80(W)×155.7(H)×35(D) mm Weight (without AA batteries) 0.83lb 375g Weight (with AA batteries) 0.94lb 425g Operating Temerature 32° to 104°F (0?C to 40?C) Included Accessories Digital input conversion cable Audio Performance Frequency response 20 to 20kHz +0.5/-1dB (EXT IN to LINE OUT, Fs 44.1/48kHz, JEITA) 20 to 40kHz +0.5/-2dB (EXT IN to LINE OUT, Fs 88.2/96kHz, JEITA) 20 to 80kHz +0.5/-4dB (EXT IN to LINE OUT, Fs 176.4/192kHz, JEITA) Distortion 0.007% or less (Fs 44.1/48/88.2/96/176.4/192kHz, JEITA) S/N Ratio 102dB or more (Fs 44.1/48/88.2/96/176.4/192kHz, JEITA) DR-100mkIII Tested Media List Last update: July 22, 2016 Note: The last group of digits of SanDisk SD cards vary by region and can be ignored (shown as ### below.) Maker Series Model Capacity Result SanDisk Ultra Plus SDHC® UHS-I SDSDUM-016G-### 32GB OK *1 SanDisk Extreme PRO® SDHC™ UHS-I (Class 10) SDSDXPA-128G-### 128GB OK SDSDXPA-064G-### 64GB OK SDSDXPA-016G-### 16GB OK SanDisk Extreme® SDHC™ UHS-I (Class 10) SDSDXL-064G-### 64GB OK SSDSDXL-032G-### 32GB OK SanDisk Standard SDHC™ (Class 4) SDSDB-008G-### 8GB OK SanDisk Extreme Pro® SDHC™ (Class10/UHS-II) SDSDXPB-032G-### 32GB OK SDSDXPB-016G-### 16GB OK SanDisk Extreme Pro® SDHC™ (Class 10/UHS-I) SDSDXPA-016G-### 16GB OK SanDisk Extreme Plus® SDHC™ UHS-I (Class 10) SDSDXS-016G-### 16GB OK *1 SanDisk Extreme® SDHC™ UHS-I (Class 10) SDSDXL-016G-### 16GB OK *1 SanDisk Ultra Plus® SDHC™ UHS-I SDSDUP-016G-### 16GB OK SDSDUP-008G-### 8GB OK Panasonic SDUC series (UHS-I / Class10) RP-SDUC32GJK 32GB OK Sony SDHC UHS-I SF-8UY2 8GB OK
