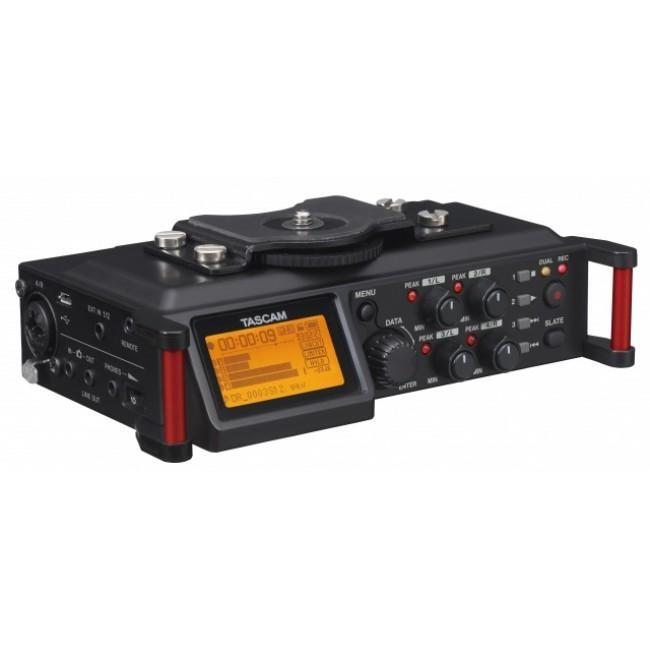

TASCAM DR-70 Audio Recorder For Dslr

Product Information: The DR-70D from TASCAM is the ultimate audio recording solution for filmmakers. Four balanced XLR mic inputs meet the requirements of production sound, from professional users to indie DSLR shooters. The compact format can be mounted either above or below a camera, and a pair of built-in microphones can capture sound on-set. The interface is designed for quick adjustment, with additional features to keep recording levels under control. Four XLR mic inputs with phantom power are included on the DR-70D, enough to cover busy scenes. The High-Quality HDDA(High Definition Discrete Architecture) Mic Preamps include 64dB of gain for quiet performances, and all four inputs have individual gain controls. Each input has a limiter and low cut filter available for controlling volume. Also included is Dual Recording mode, which records a safety copy of your audio at a lower level to prevent distorted takes. Quality components like 5532 op amps are used throughout for the clearest audio possible. Tracks on the DR-70D are captured to SD card, SDHC or SDXC media – up to 128GB cards are supported. The recorder has tripod mounts on the top and bottom of the unit, allowing it to be mounted on a camera, a follow-focus cage, or used standalone. Other production friendly features include a slate tone, low-noise buttons, a powerful headphone output, and standard AA battery power. Uniquely designed for the needs of filmmakers, television producers, advertisers, and documentarians, the DR-70D packs multitrack recording into a package compact enough to use with any camera. Specifications: Recording media SD card(64MB to 2GB), SDHC card(4GB to 32GB), SDXC card(48GB to 128GB) Recording format WAV 44.1k / 48k / 96k Hz, 16bit / 24bit BWF 44.1k / 48k / 96k Hz, 16bit / 24bit Number of channels 4-channel (stereo × 2, mono × 4) Analog audio input 1/L, 2/R, 3/L, 4/R connectors Connector XLR-3-31 (1:GND, 2:HOT, 3:COLD) / 6.3mm(1/4")TRS standard jack Set to "MIC / MIC+PHANTOM" Input impedance 2k ohms Phantom power 48V +/-4V(10mA/CH), 24V +/-4V(10mA/CH) Maximum input level 0dBu Minimum input level -72dBu MIC input gain TRIM MAX LOW +11dB HIGH +51dB HI + PLUS +63dB Set to "LINE" Input impedance 10k ohms or more Standard input level +4dBu Maximum input level +20dBu 1/2 connector Connector 3.5mm(1/8")stereo mini jack (this connector can be supplied plug-in power) Input impedance 10k ohms Maximum input level +10dBV Minimum input level -50dBV MIC input gain TRIM MAX LOW +3dB HIGH +26dB HI + PLUS +38dB CAMERA IN connector Connector 3.5mm(1/8")stereo mini jack Input impedance 10k ohms Standard input level -10dBV Maximum input level +6dBV Analog audio output LINE OUT connector Connector 3.5mm(1/8")stereo mini jack Output impedance 200 ohms Standard output level -10dBV Maximum output level +6dBV CAMERA OUT connector Connector 3.5mm(1/8")stereo mini jack Output impedance 200 ohms Standard output level -40dBV Maximum output level +24dBV PHONES connector Connector 3.5mm(1/8")stereo mini jack Maximum output level 20mW + 20mW USB Connector Micro-B type Format USB2.0 HIGH SPEED mass storage class REMOTE Connector 2.5mm TRS jack Power 4 AA batteries(Alkaline or NI-MH), USB bus power, Dedicated AC adapter(TASCAM PS-P515U, sold separately), Dedicated external battery pack(TASCAM BP-6AA, sold separately) Power consumption 5.0W Continuous operation time 2ch WAV, 44.1kHz, 16bit rec Phantom power not used DR-70D Battery Life (hours:minutes) Alkaline batteries (EVOLTA) About 6:00 : When XLR/TRS input selecte (Phantom off) About 3:30 : When XLR/TRS input selecte (Phantom on) About 11:00 : When 3/4 MIC (Built-in Mic) selected NI-MH batteries (eneloop) About 6:15 : When XLR/TRS input selecte (Phantom off) About 3:15 : When XLR/TRS input selecte (Phantom on) About 10:30 : When 3/4 MIC (Built-in Mic) selected NI-MH batteries (eneloop pro) About 7:45 : When XLR/TRS input selecte (Phantom off) About 4:45 : When XLR/TRS input selecte (Phantom on) About 14:15 : When 3/4 MIC (Built-in Mic) selected DR-70D + BP-6AA *BP-6AA is using the alkaline batteries (EVOLTA). Alkaline batteries (EVOLTA) About 13:00 : When XLR/TRS input selecte (Phantom off) About 7:30 : When XLR/TRS input selecte (Phantom on) About 25:30 : When 3/4 MIC (Built-in Mic) selected NI-MH batteries (eneloop) About 12:45 : When XLR/TRS input selecte (Phantom off) About 7:45 : When XLR/TRS input selecte (Phantom on) About 24:45 : When 3/4 MIC (Built-in Mic) selected NI-MH batteries (eneloop pro) About 14:30 : When XLR/TRS input selecte (Phantom off) About 8:45 : When XLR/TRS input selecte (Phantom on) About 27:00 : When 3/4 MIC (Built-in Mic) selected Dimensions 6.65(W)×2.2(H)×4.2(D)in 169(W)×55.2(H)×106.5(D)mm (with the top adapter attached) Weight 1.37lb ( including batteries) / 1.16lb (without batteries ) 625g ( including batteries) / 530g (without batteries ) Operating temperature 0 to 40?C Standard accessories USB cable, Camera attachment bracket screw hole covers × 6 Owner's Manual (including warranty) Audio performance Frequency response 20-20kHz +0.5/-2dB(LINE IN or MIC IN to LINE OUT, Fs44.1k/48k Hz, JEITA) 20-40kHz +0.5/-3dB(LINE IN or MIC IN to LINE OUT, Fs96kHz, JEITA) Distortion 0.02% or less(LINE IN or MIC IN to LINE OUT Fs44.1k/48k/96k Hz, JEITA) S/N ratio 92dB or more(LINE IN or MIC IN to LINE OUT Fs44.1k/48k/96k Hz, JEITA) Equivalent input noise -120dBu or less Computer compatibility Windows OS Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1 CPU Pentium 300MHz or more RAM 128MB or more USB recommended: USB2.0 Macintosh OS Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4), Mac OS X Leopard (V10.5), Mac OS X Snow Leopard(V10.6.8), OS X Lion(V10.7), OS X Mountain Lion(V10.8), OS X Mavericks(10.9) CPU Power PC, iMac, G3, G4 266MHz or more RAM 64MB or more USB recommended: USB2.0 Recording Duration The table below shows the maximum recording time on SD/SDHC cards of different capacities for different file formats for recording. File format(recording setting) SD/SDHC card capacity(hours:mintes) 1GB 2GB 4GB 8GB WAV/BWF 16bit(STEREO) 44.1kHz 1:41 3:22 6:44 13:28 48kHz 1:33 3:06 6:12 12:24 96kHz 0:46 1:33 3:06 6:12 WAV/BWF 24bit(STEREO) 44.1kHz 1:07 2:15 4:30 9:00 48kHz 1:02 2:04 4:08 8:16 96kHz 0:31 1:02 2:04 4:08 The recording times shown above are estimates. They might differ depending on the SD/SDHC card in use. The recording times shown above are not continuous recording times, but rather they are the total possible recording times for the SD/SDHC card. If recorded in mono in WAV files, the maximum recording time will be double the figures above. For dual and 4-channel recording in WAV/BWF format, the recording times are about half those shown above.
