TASCAM DCP 4ch Aes/ebu I/o

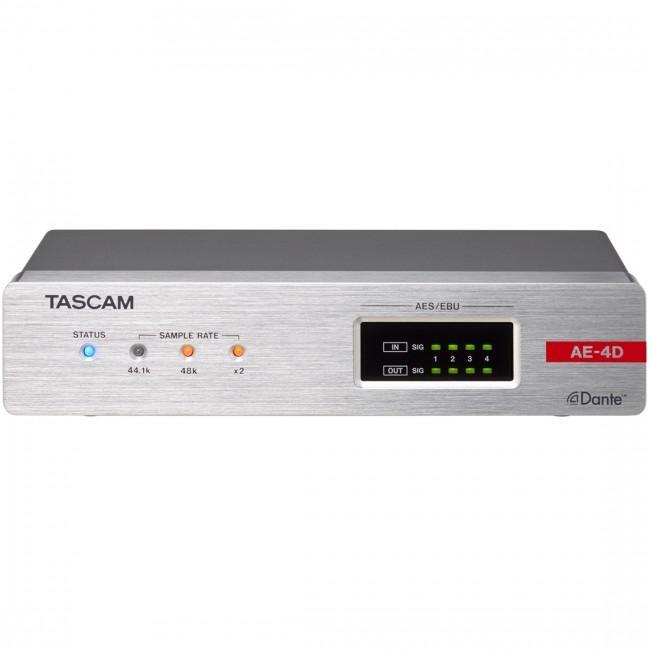

Product Information: The AE-4D is a compact converter that mutually converts AES/EBU signals and 4-channel Dante signals. With half the size of a standard 1U rack, the AE-4D is suitable for different Dante systems as an exquisite AES/EBU input/output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. AE-4D supports up to 96kHz/24bit and uses XLR connectors for AES/EBU output. 4 AES/EBU input/output?4 Dante input/output The AE-4D is a simple converter that converts 4-channel AES/EBU input signals into 4-channel Dante output signals, or 4-channel Dante input signals into 4-channel AES/EBU input signals. Half-rack size Dante Compact Processor Series The Dante Compact Processor Series has a line-up of models with different input/output specifications: MM-4D/IN, 4-channel mic/line input ML-4D/OUT, 4-channel line output MM-2D, 2-channel mic/line input/output AE-4D, AES/EBU 4-channel input/output For analog input/output models, the branch extends with units equipped with Euroblock or XLR connectors that users can choose depending on their usage. By combining multiple different units all at once, it is possible to match and introduce them into various systems. Optimal input/output unit for different Dante systems The Dante Compact Processor Series provide easy additional mic/line or AES/EBU input/output to several situations and places such as public facilities, broadcasting stations, recording studios, etc. where Dante systems are being used. They are the optimal input/output unit for small scale environments. Structuring small scale systems with the DSP function Level control is available when converting AES/EBU signals and Dante signals, and managing the input/output of an AES/EBU unit makes it easier to work with Dante systems. In addition, with a matrix mixer function and effects installed in the Dante Compact Processor Series, it is possible to build up a complete small system with units from this series only. Flexible routing Routing to each Dante device is easy via Dante controller. Input/output units can be added flexibly to new or already established Dante systems. Compatible with Dante Domain Manager and AES67 mode The Dante Compact Processor Series are compatible with Dante Domain Manager, which features security functions and enables the use of wide-area networks. This helps the Dante Compact Processor Series access easily to Dante systems using already established network infrastructures. With the AES67 mode, connection to AES67 network systems is also possible. The advantages of introducing Dante Network Audio These are some of the benefits provided when adopting Dante Network Audio: Reduction of system costs It is possible to have a maximum transmission of 128ch I/O with one single CAT5e cable. This leads to fewer cables needed, not to mention the reduction of costs on wiring and space for cable pits. Improved connection flexibility All equipment can be freely connected and routed by applying star connections. Specifications: Introducing a wide range of digital equipment into a Dante system Often used in PA/SR and pro audio environments, digital equipment compatible with AES/EBU format can be used on Dante systems. The AE-4D also includes a sampling rate converter, which enables different AES/EBU sources to be used on a Dante system. PoE supported Power supply can be provided to the unit via PoE (Power over Ethernet). No need for AC adaptors; power supply construction fees and installation costs can be reduced by using a PoE compatible network switch. Remote control via control software Controlling effects or the matrix mixer can be easily done through the dedicated control software; depending on the amount of controls the user needs, there are two types: TASCAM DCP CONNECT, designed for system integrators/managers that handle the configuration and settings of an entire system. TASCAM EZ CONNECT, designed for end-users and allowing them to use simple controls. Compatible with Windows / macOS / Android / iOS devices. Installable according to usage/environment Units can be easilly installed directly under desks or on walls with the included surface mount adaptors. With the optional rack-mountable shelf AK-RS1, up to two Dante Compact Processor models can be installed in a 19 inch rack space. 4 AES/EBU input/output 4 AES/EBU inputs with sampling rate converter 4 Dante input/output Supports PoE (Power over Ethernet) Up to 24bit/96kHz Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch Compatible with Dante Domain Manager and Dante AES67 Mode Flexible scene preset function allows to work in different area situations (Up to 50 presets) Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update) 2 types of user control software available for Windows/Mac/iOS/Android devices: For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc. For end-users: simple app design for only the necessary functions such as area volume settings, etc. Remote control via Dante Half-rack mountable size Equipped with indicators that show LAN/Dante connection status and sample rate Equipped with signal indicators that monitor digital input/output signals Configurable reference level (via remote control only) Surface rack mountable angles for installation under desks included Optional accessories: AC adapter PS-P1220E for redundant power supply available Rack-mountable shelf AK-RS1 to install and store two Dante Compact Processor models in a 19 inch rack case General Formats and channels 44.1/48kHz,16/24-bit, 4 channels 88.2/96kHz,16/24-bit, 2 channels (double speed) Input/output ratings DATA/DATA+PoE connectors Connector RJ-45 Transmission protocol Dante Gigabit Ethernet standard 1000BASE-T (IEEE 802.3ab) Cables category 5e or faster STP cables DIGITAL INPUT (AES/EBU) connectors Connector XLR-3-31 Input impedance 110 ? Format AES3-2003/IEC60958-4 (AES/EBU) Supported sampling frequencies 32 kHz - 192 kHz (Sampling rate converter is always on) DIGITAL OUTPUT (AES/EBU) connectors Connector XLR-3-32 Output impedance 110 ? Format AES3-2003/IEC60958-4 (AES/EBU) Supported sampling frequencies 44.1, 48, 88.2 and 96 kHz Other Power PoE class 0 TASCAM PS-P1220E AC adapter (sold separately) Power consumption 3W Dimensions 214 x 44.45 x 136.1 mm (W x H x D, including protrusions) Weight 795 g Operating temperature range 0°C-40°C Included items Installation brackets, Owner's manual (including warranty)
