Eikon Wireless XLR UHF Rechargeable Audio Transmission System - UXLR

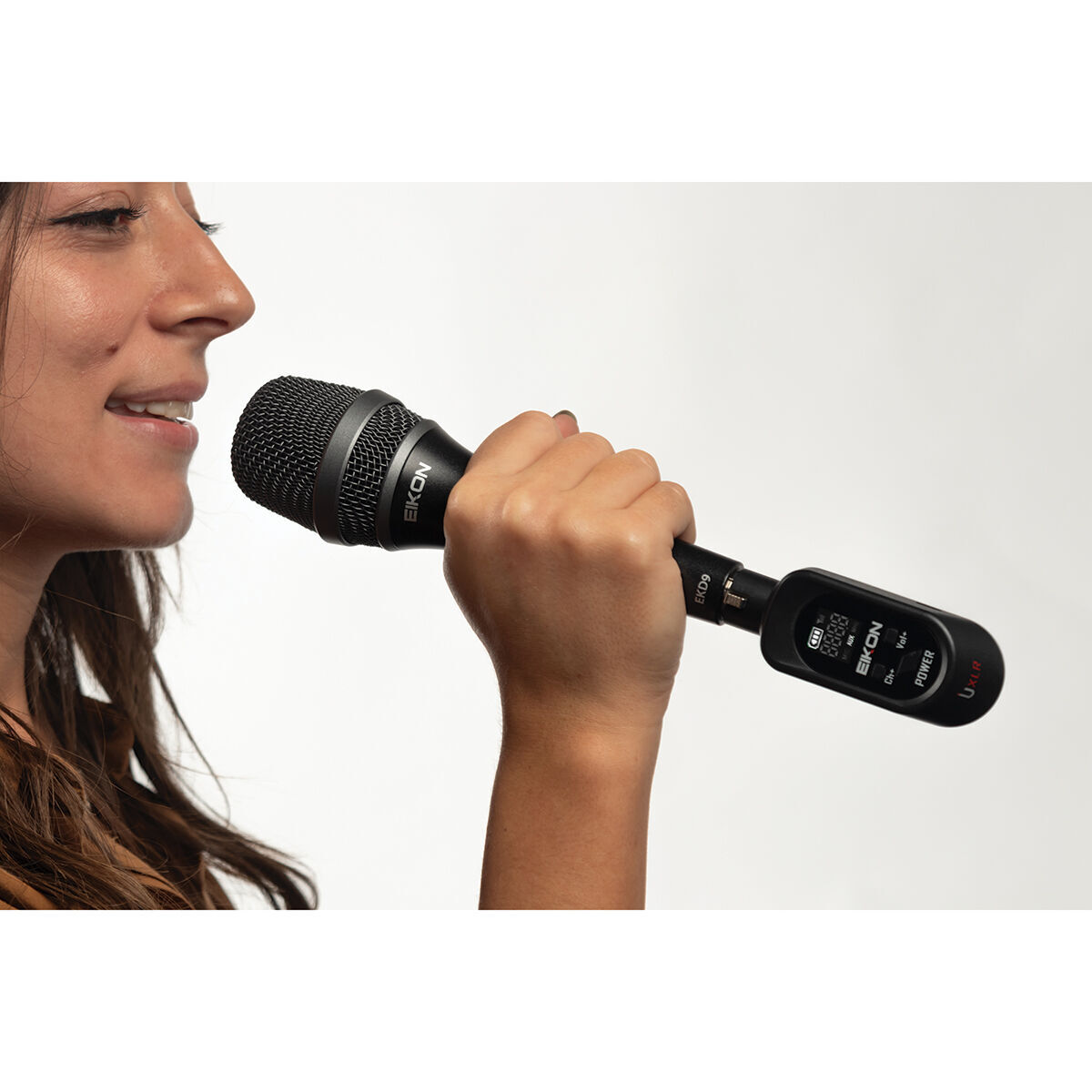

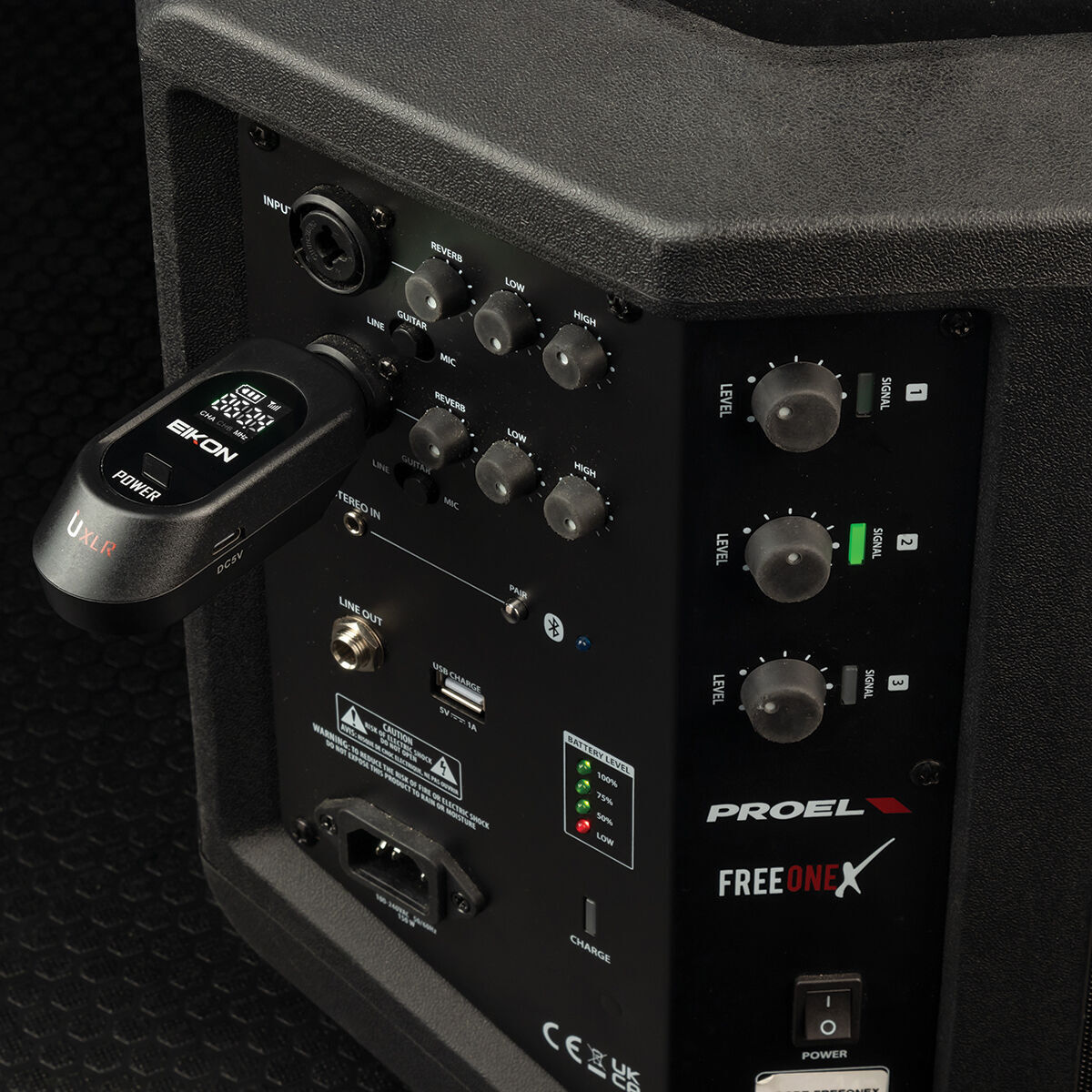

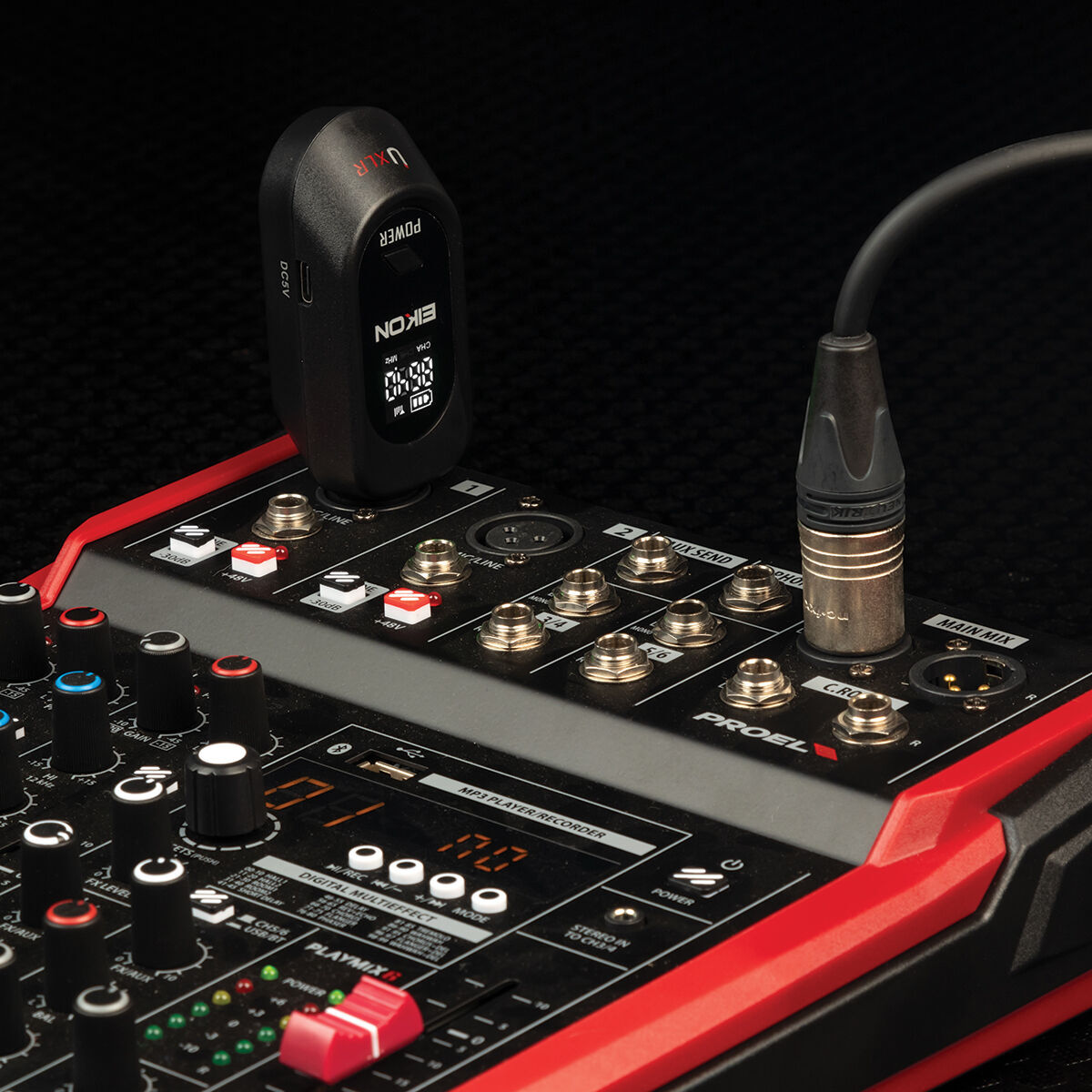

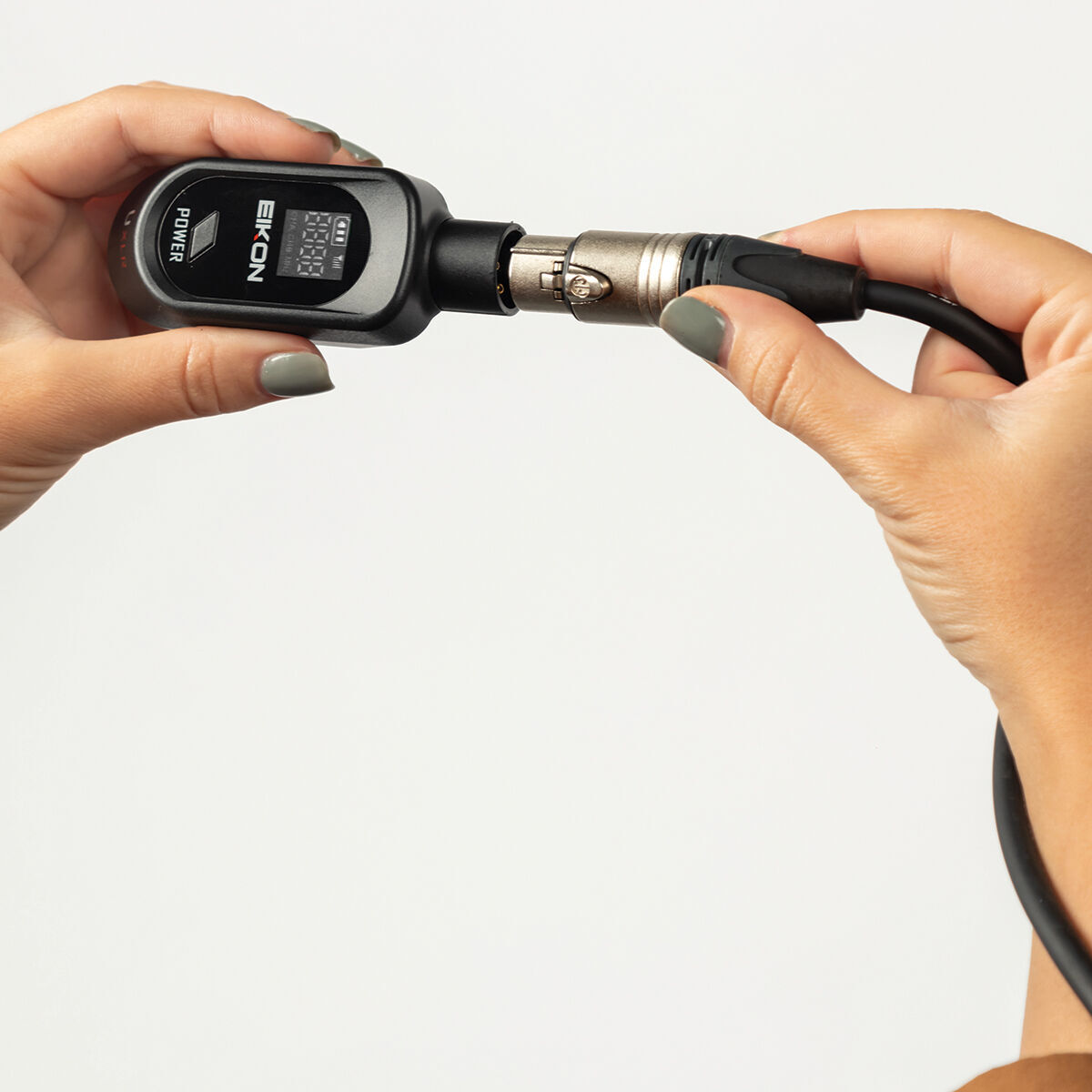

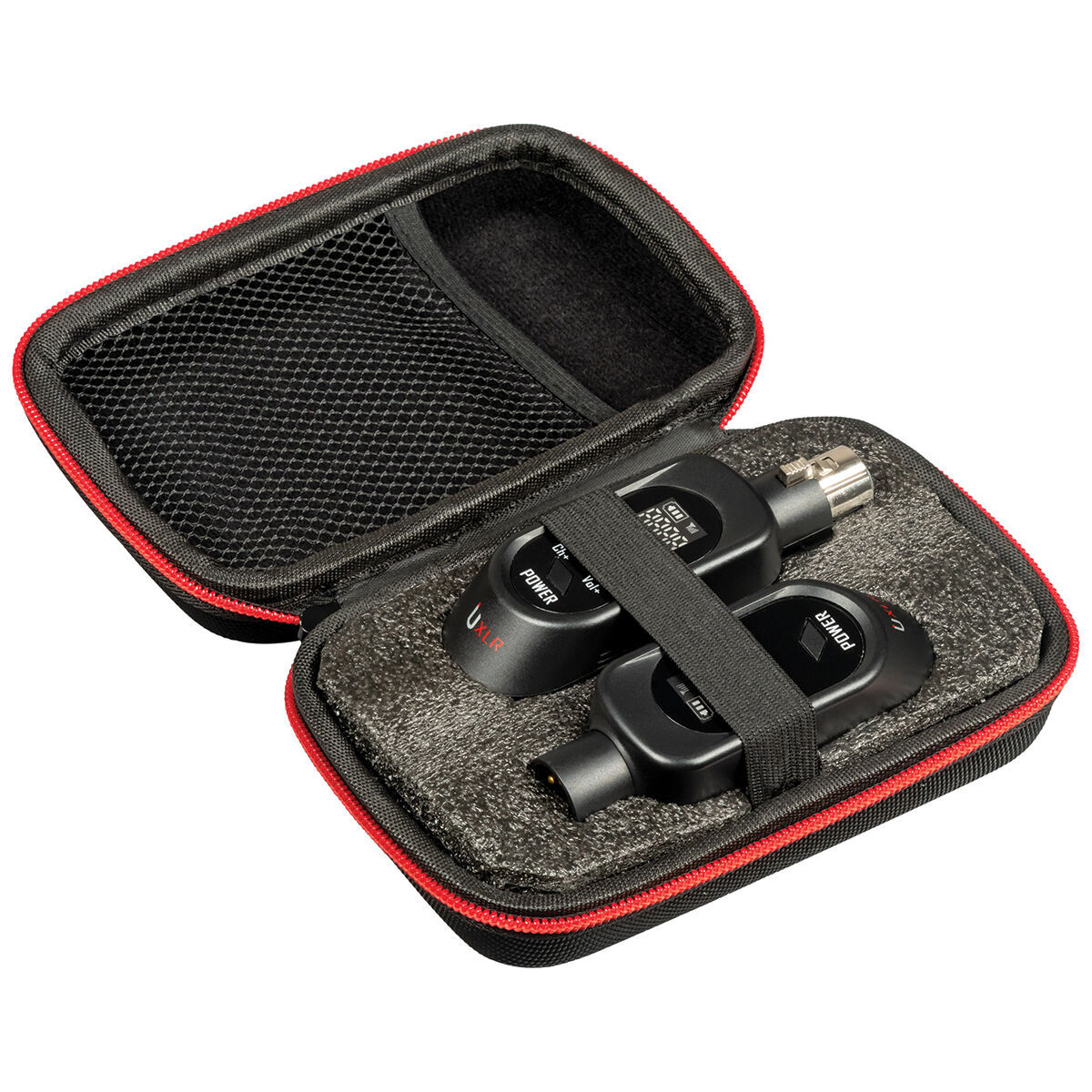

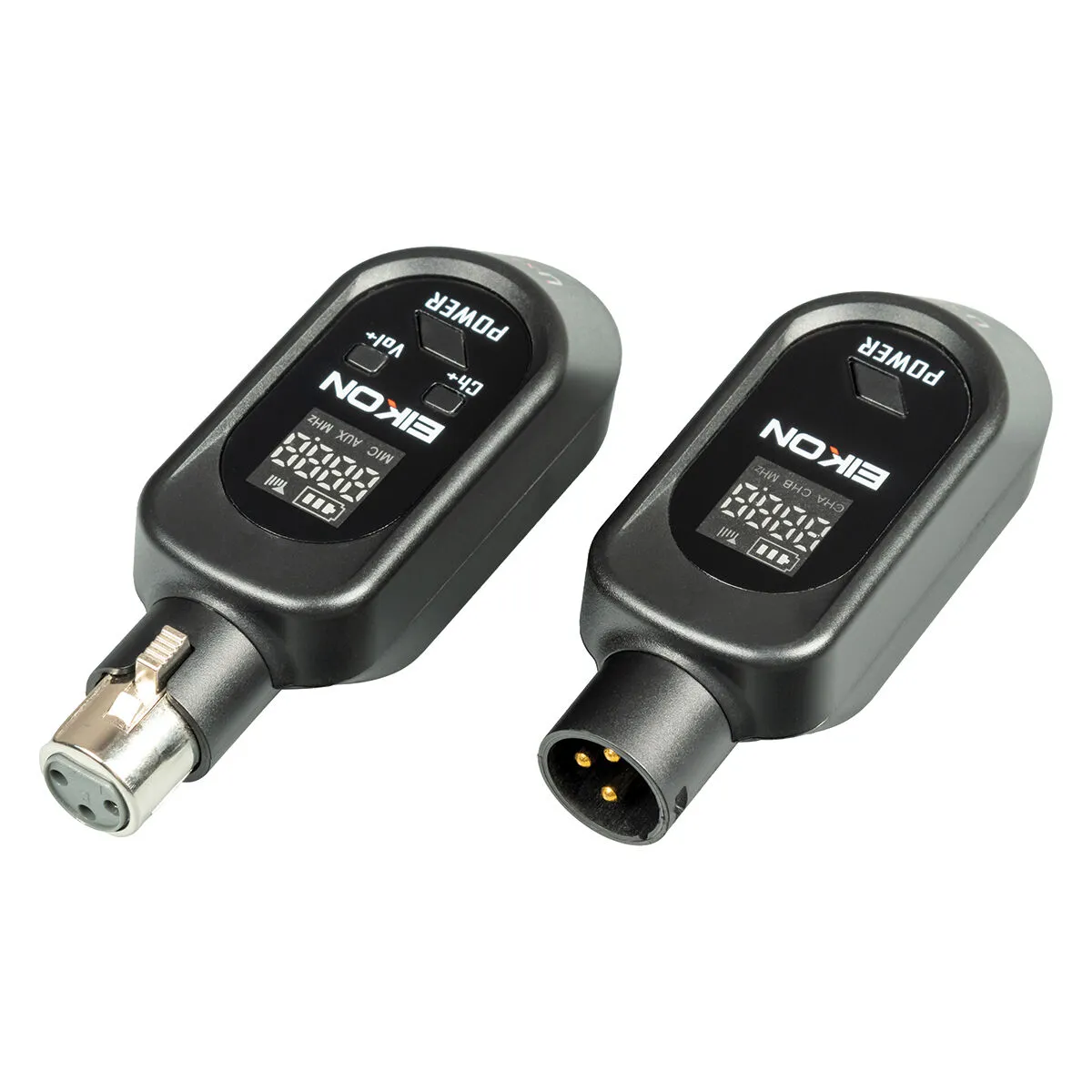

Wireless XLR transmission system EIKON UXLR EIKON is pleased to announce the arrival of UXLR, a device with an exclusive design that is accessible to everyone for extending their wireless connections. The UXLR is a UHF PLL wireless audio system designed for transmitting signals via XLR connection, providing a reliable and high-quality signal. The system consists of three units: a female XLR transmitter, a male XLR receiver, and a USB-C charging cable, all enclosed. There are 30 frequency channels available, allowing the system to be used simultaneously or in environments with other wireless equipment. UXLR is the simplest and most affordable way to wirelessly transmit balanced or unbalanced XLR signals, such as those connecting mixers to active speakers and amplifiers. It can also transform any dynamic or condenser microphone into a wireless microphone, thanks to its dual input sensitivity and Phantom Power function. MIC / LINE input sensitivity selection UHF Quartz locked DQPSK modulation mode Up to 30 meters range Built in 3.7V/800mA lithium battery 5V USB-C charging cable included Up to 5 hours autonomy Frequency band: 568.500–580.100 MHz Download Manual HERE SPECIFICATIONS UXLR – UHF PLL Transmitter RF Channels 30 frequency presets RF Frequency Band UHF: 568.500 – 580.100 MHz RF Frequency Stability ±0.002% RF Oscillation Mode PLL Synthesized RF Modulation Type DQPSK RF Output Power 10mW Sub-harmonic < 40 dB Operating current 130 mA Operating Time 3 to 5 hrs Operating Power Supply 3.7 V / 800 mA - built-in Lithium battery Charging mode USB charging 5V – type C connector Charging time 3 hours Weight 0.10 Kg UXLR – UHF PLL Receiver RF Channels 30 frequency presets RF Frequency Band UHF: 568.500 – 580.100 MHz RF Frequency Stability ±0.005% RF Oscillation Mode PLL Synthesized RF Modulation Type DQPSK RF Receiving Sensitivity < -98 dBm RF Receiving range Up to 30 meters Audio dynamic range 106 dBm THD Distortion < 0.5% S/N Ratio > 102 dBA Operating current 85 mA Operating Time 3 to 5 hrs Operating Power Supply 3.7 V / 800 mA - built-in Lithium battery Charging mode USB charging 5V – type C connector Charging time 4 hours Weight 0.10 Kg
