Eikon 4-Channel Headphone Amplifier EHPAMP4 with Stereo Input and Individual Level Controls

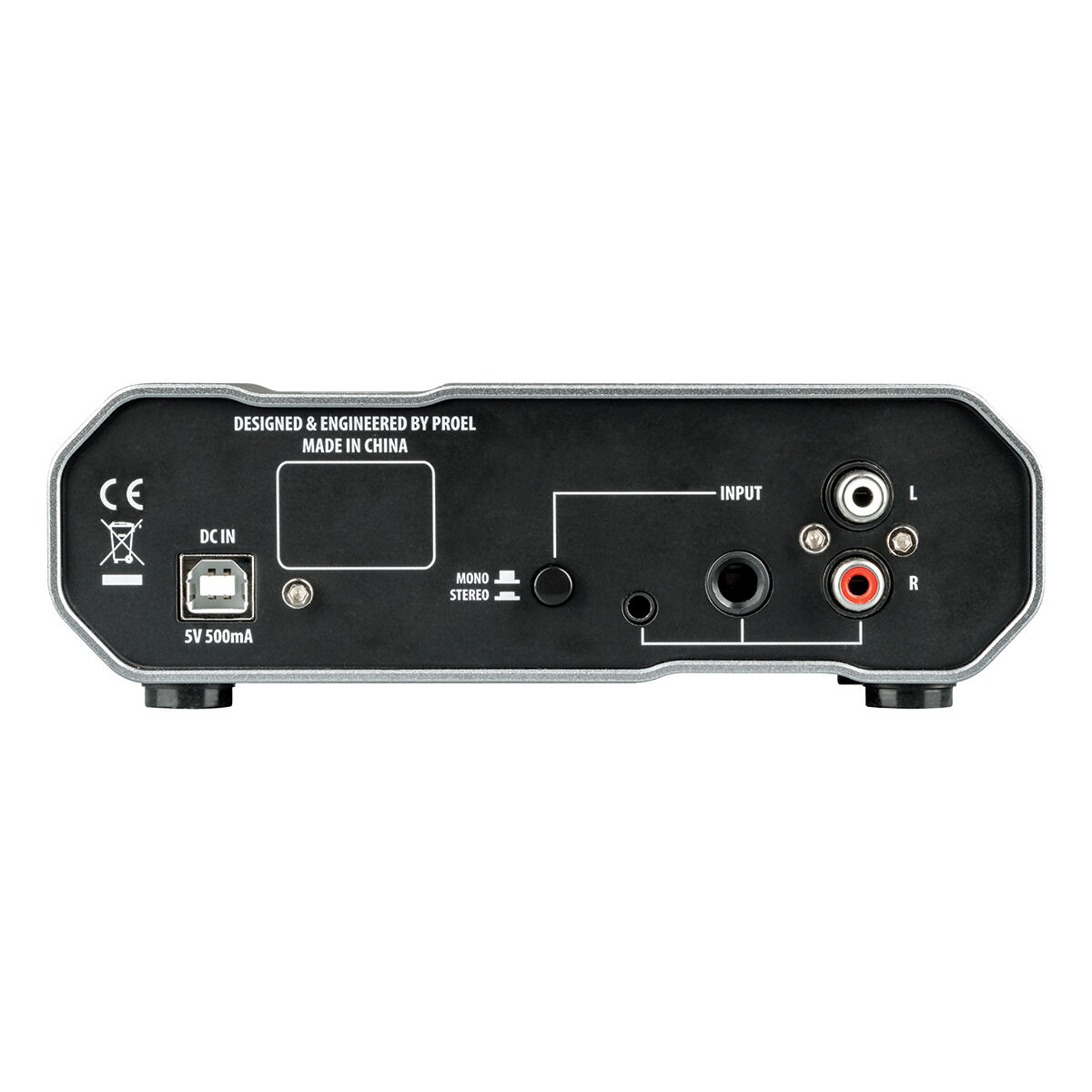

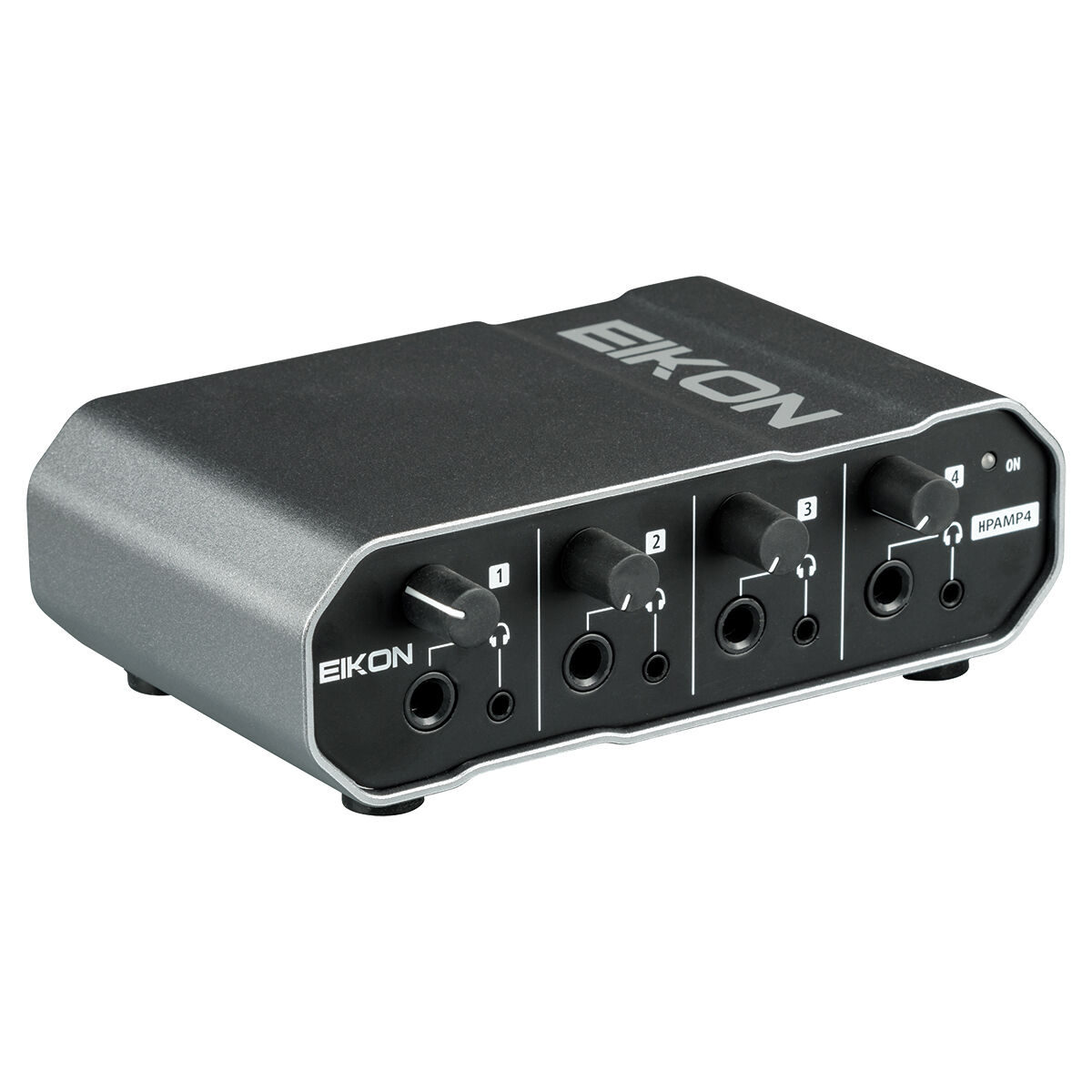

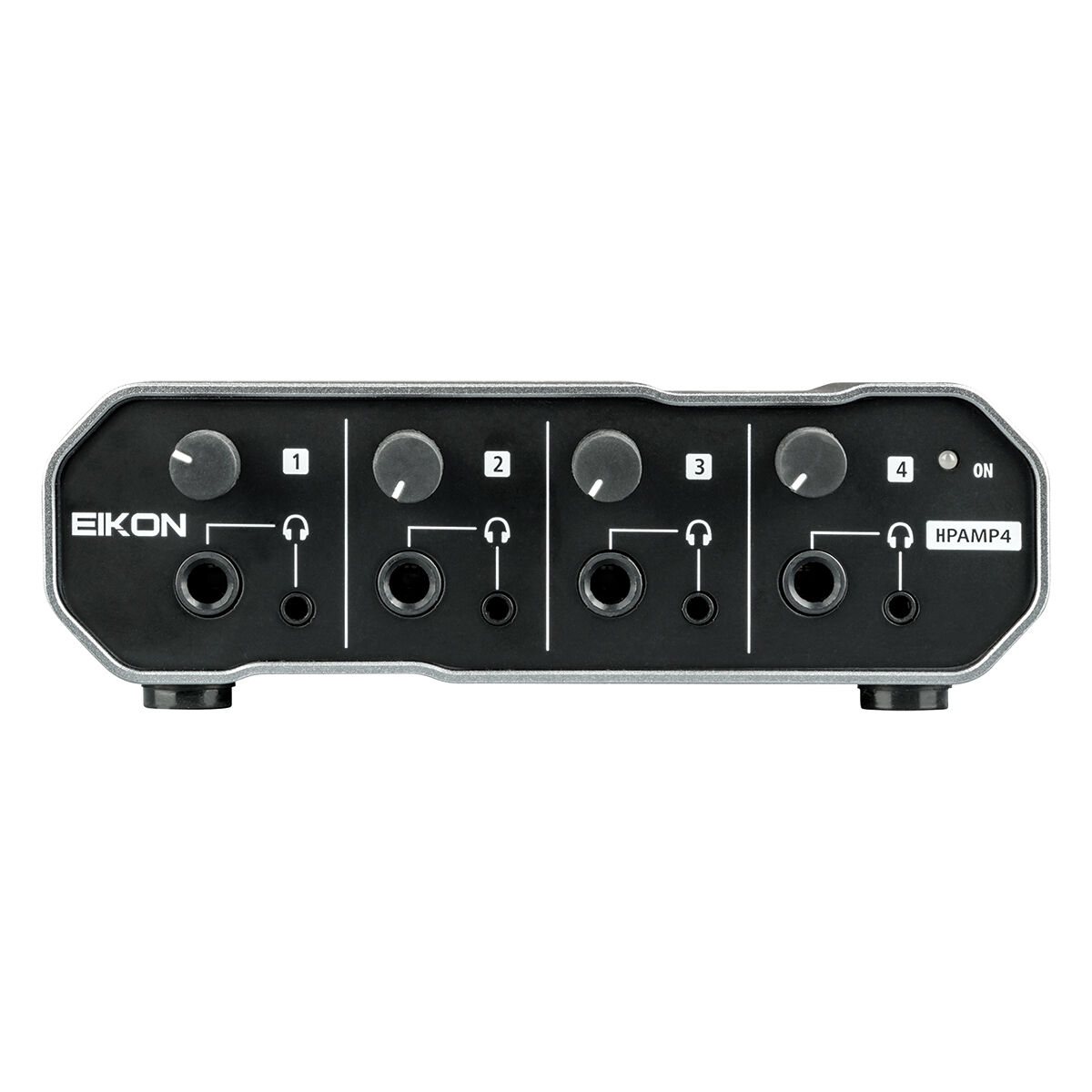

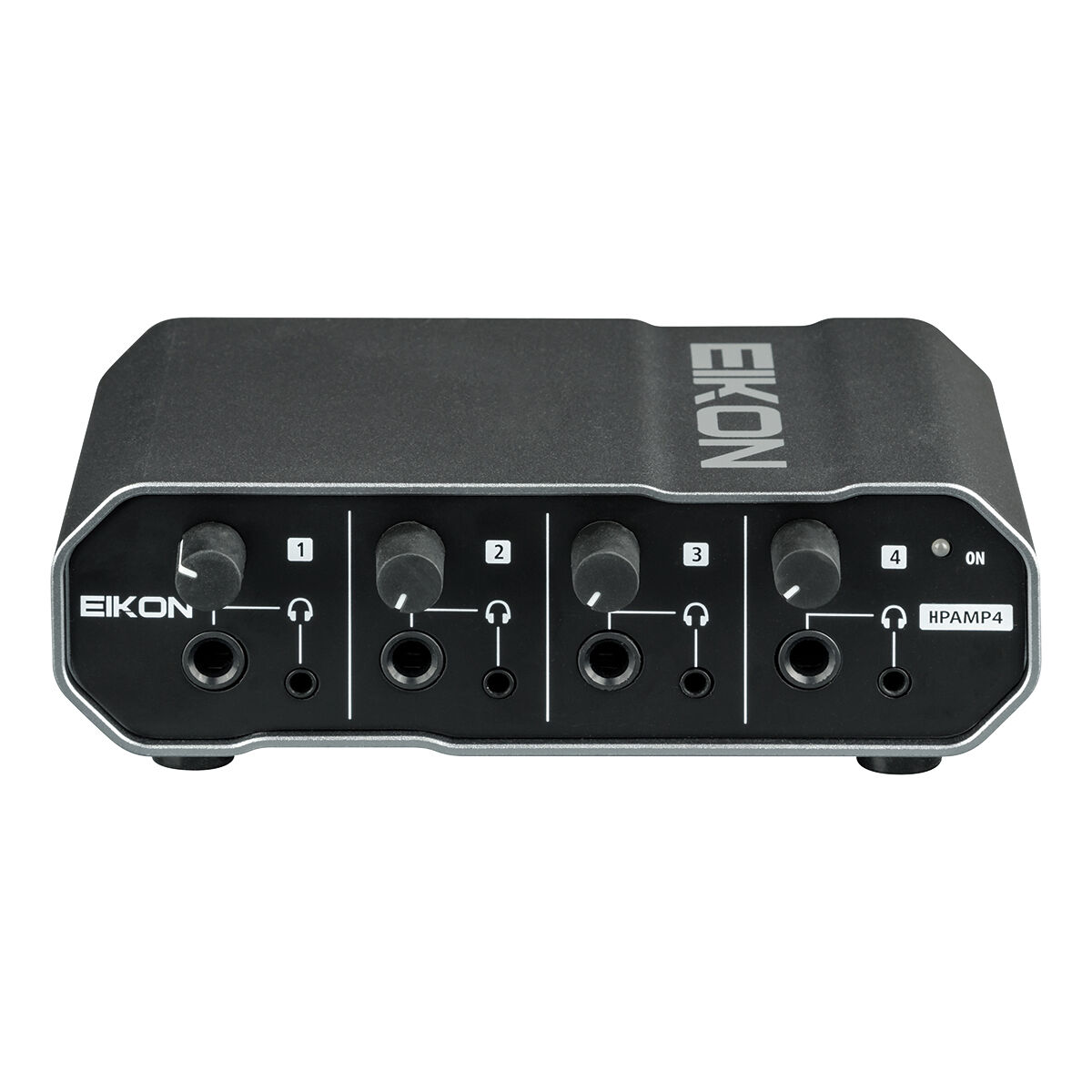

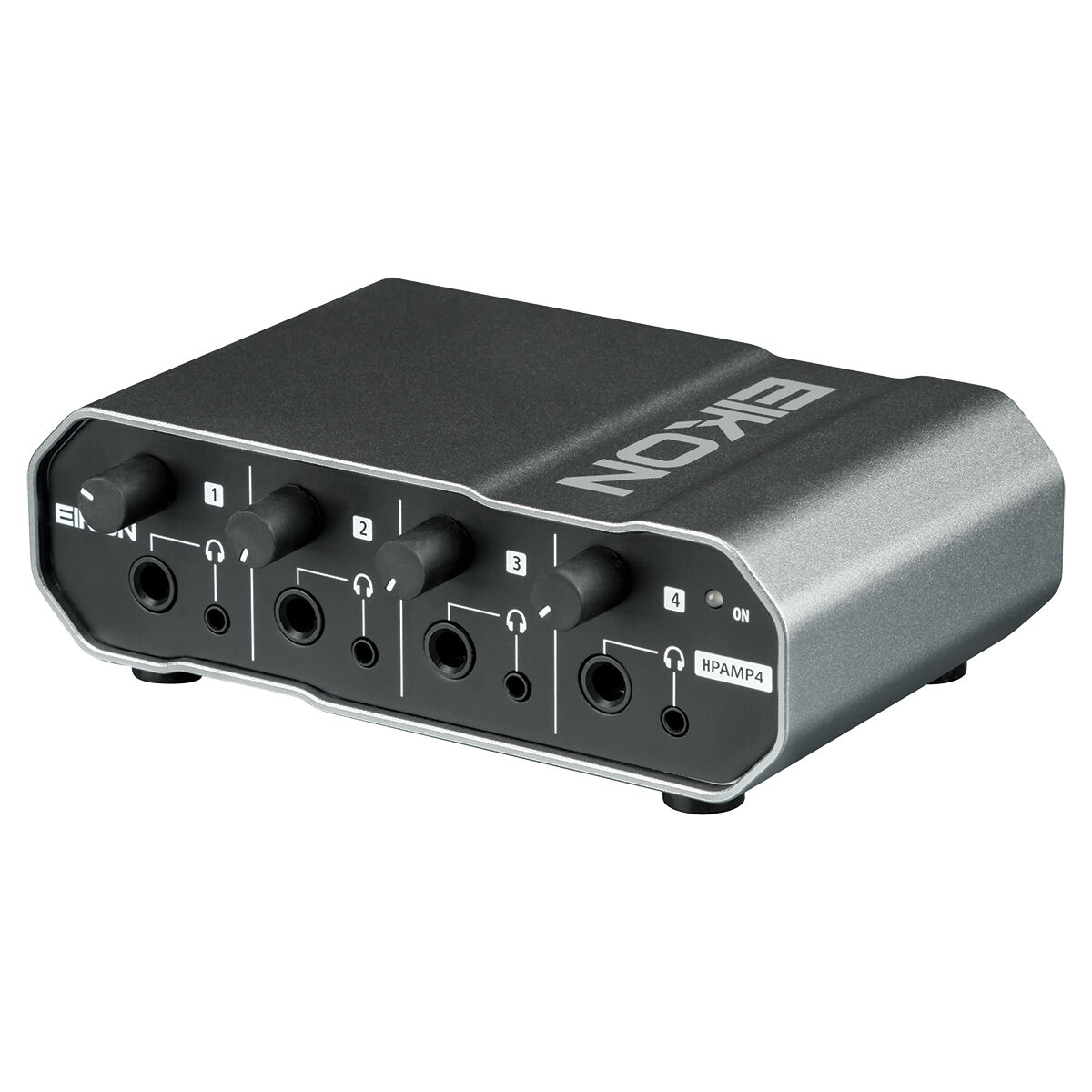

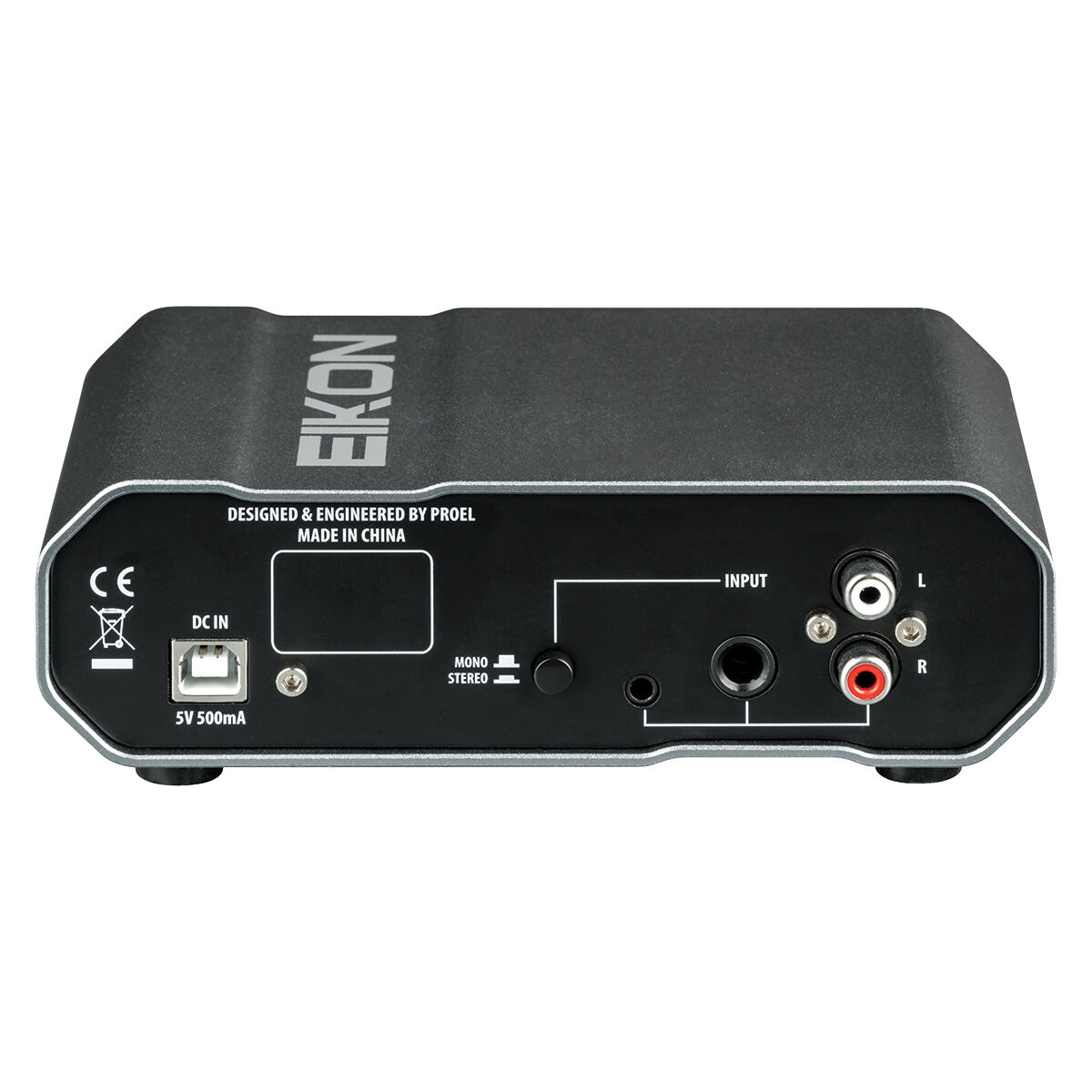

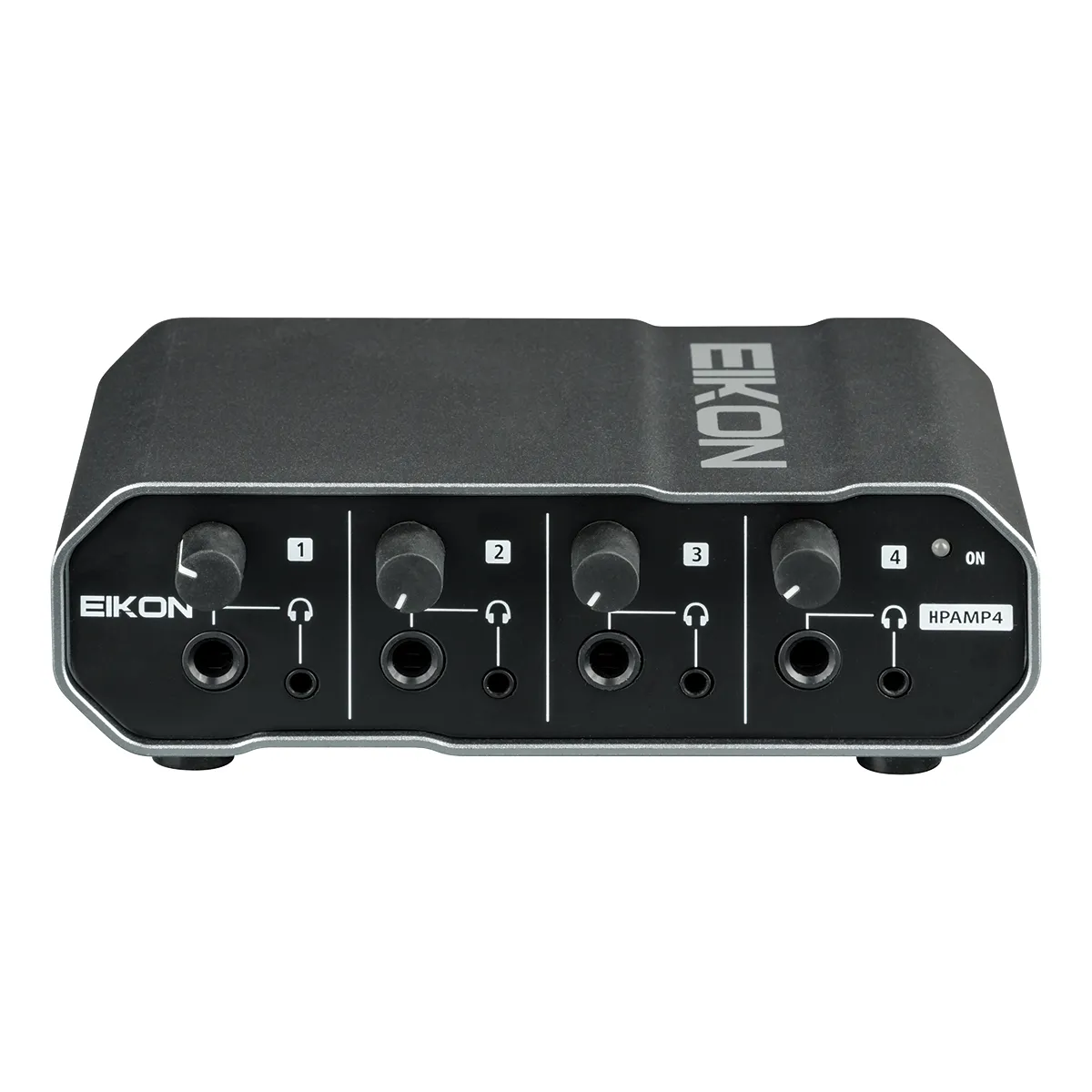

Eikon 4-Channel Headphone Amplifier The compact HPAMP4 Headphones Amplifier features a stereo input and four headphone outputs with individual level controls. It is very useful in small studios or stages when up to four people want to listen together. This 4-channel stereo headphone amplifier is designed for use with all types of headphones and therefore offers maximum flexibility. Its high-power stereo amplifiers with the low-noise 4580 OPAMP guarantee the highest sonic quality even at maximum volume. The input connections with 1/4” jack, mini-jack, RCA and mono/stereo switch together with output connections 1/4” jack and mini-jack allow the maximum flexibility without the need of special connection adapters. INPUT SECTION Connectors 2x RCA, 1x 1/4" JACK stereo, 1x 1/8" JACK stereo Inputs 1x stereo Input Impedance 20 Kohm Max Input Level +20 dBu OUTPUT SECTION Connectors 4x 1/4" JACK stereo or 1/8" JACK stereo Outputs 4x HEADPHONES stereo Max output 32ohm 2x 100mW (each channel) Max output 600ohm 2x 100mW (each channel) Load Impedance min 16 ohm per channel Max Gain +20 dB (each channel) SYSTEM PERFORMANCE Distortion (THD) 0.02% Noise < -98 dBu unweighted Frequency Response < 20 Hz - 20 KHz (-3dB) POWER SUPPLY Connector USB Type B AC/DC Adapter Input 100-240V ~ (±10%) 50/60Hz AC/DC Adapter Output 5V-1A (5W) Supplied Cable 1.2m USB Type A - Type B GENERAL Controls 4x OUTPUT LEVEL, INPUT STEREO/MONO SWITCH Indicators Power ON Dimensions (WxHxD) 160 x 52 x 106mm Weight 0.5kg (main w/out cable) Download User Manual Here
