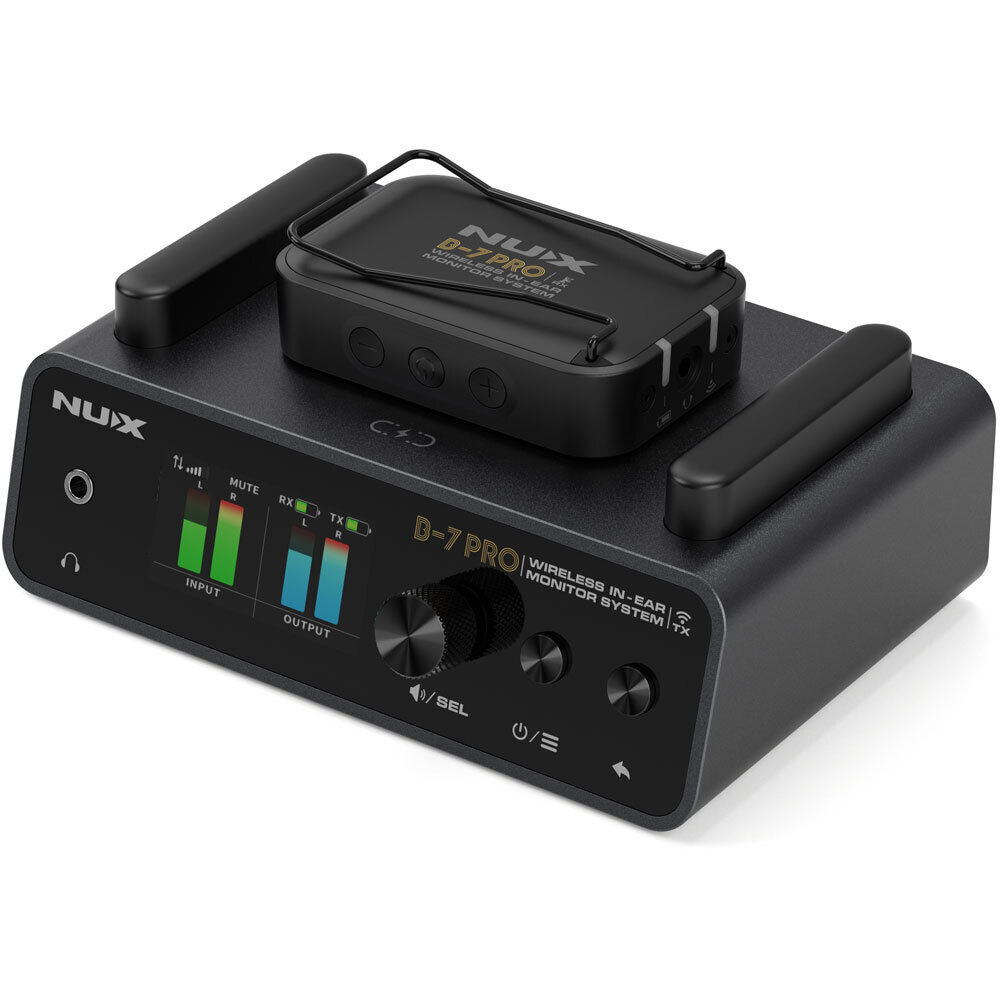

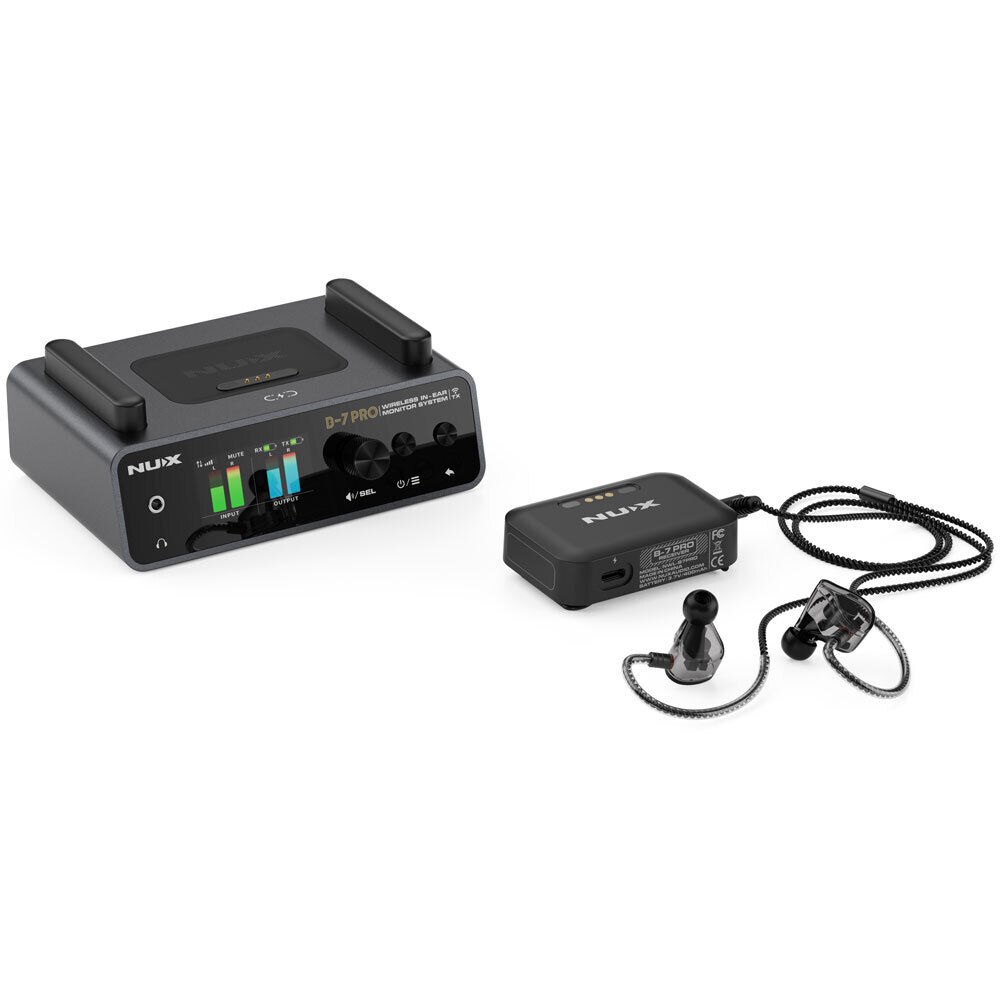

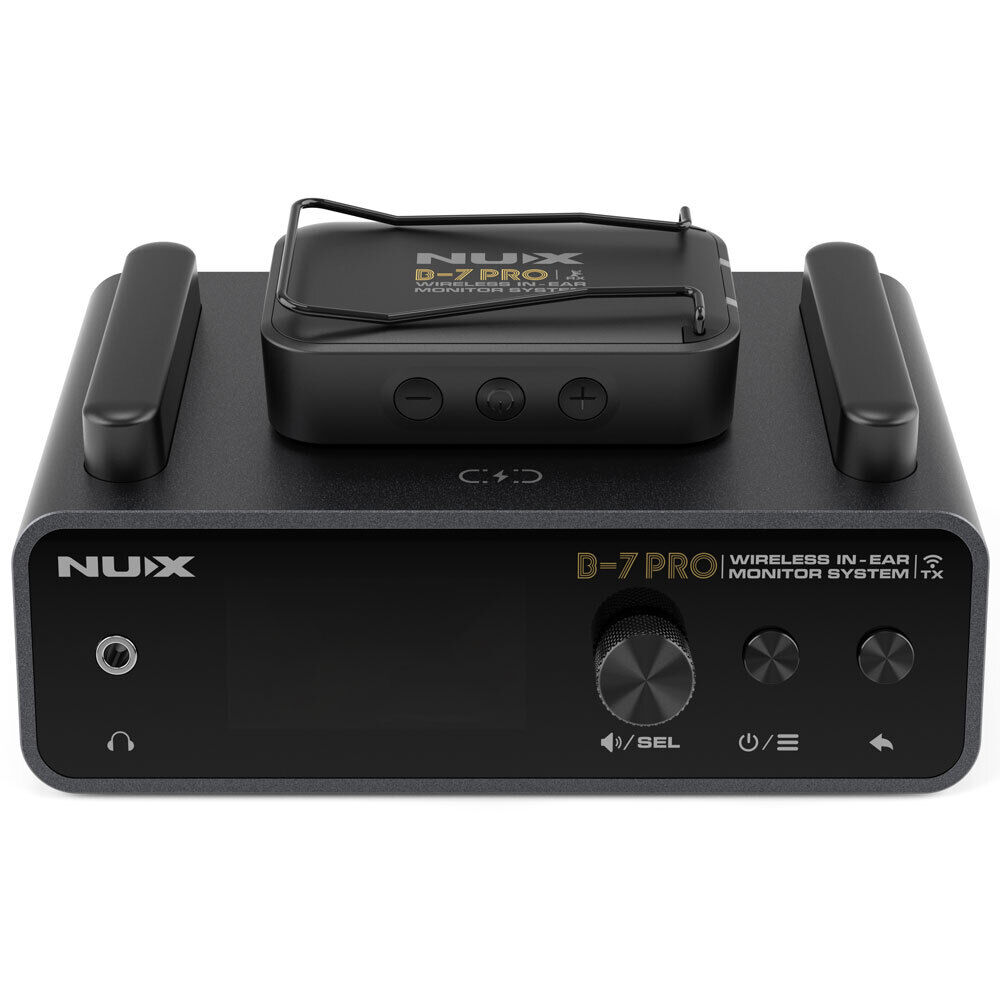

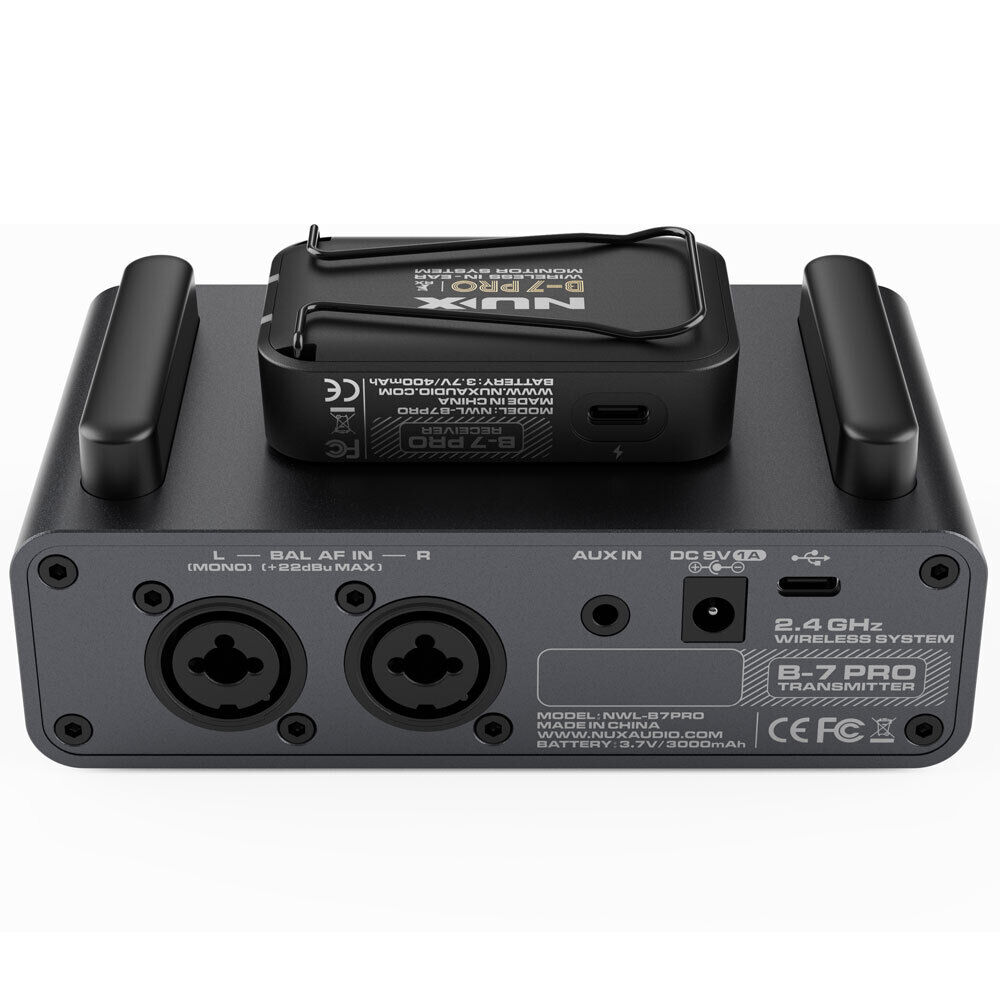

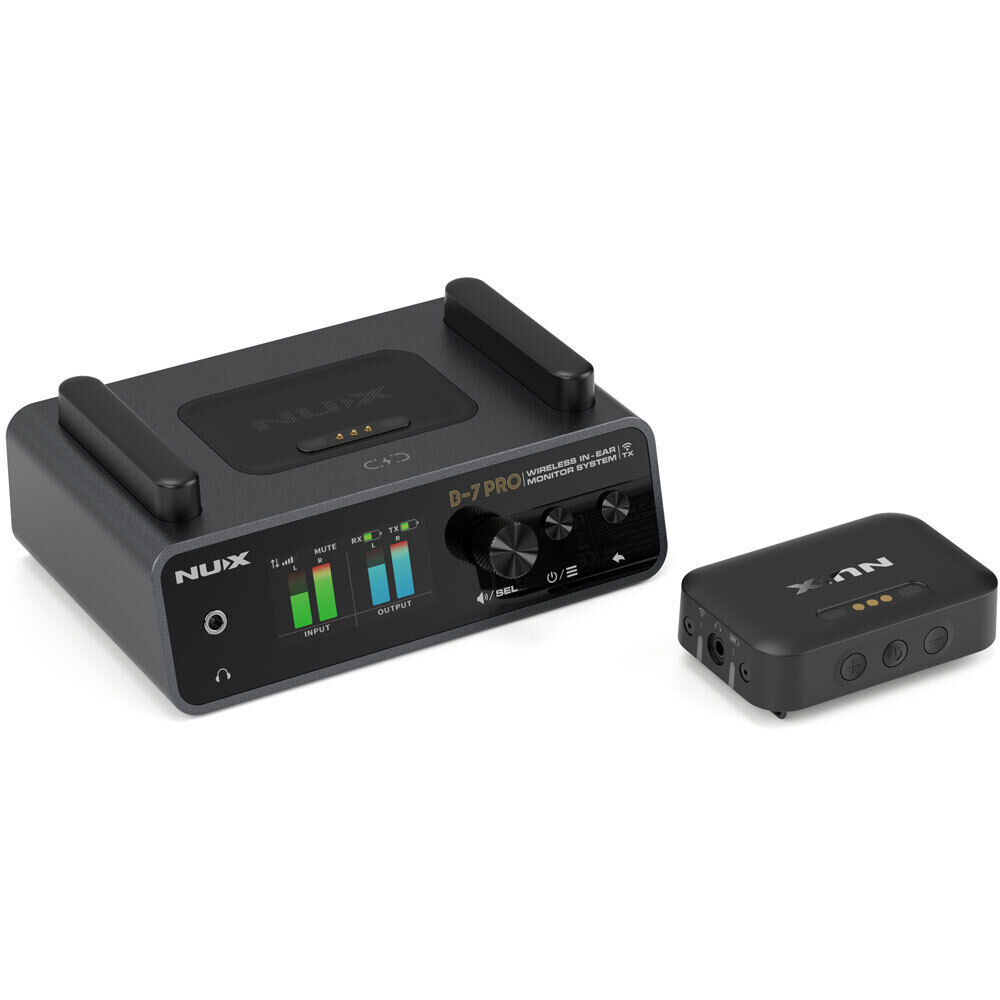

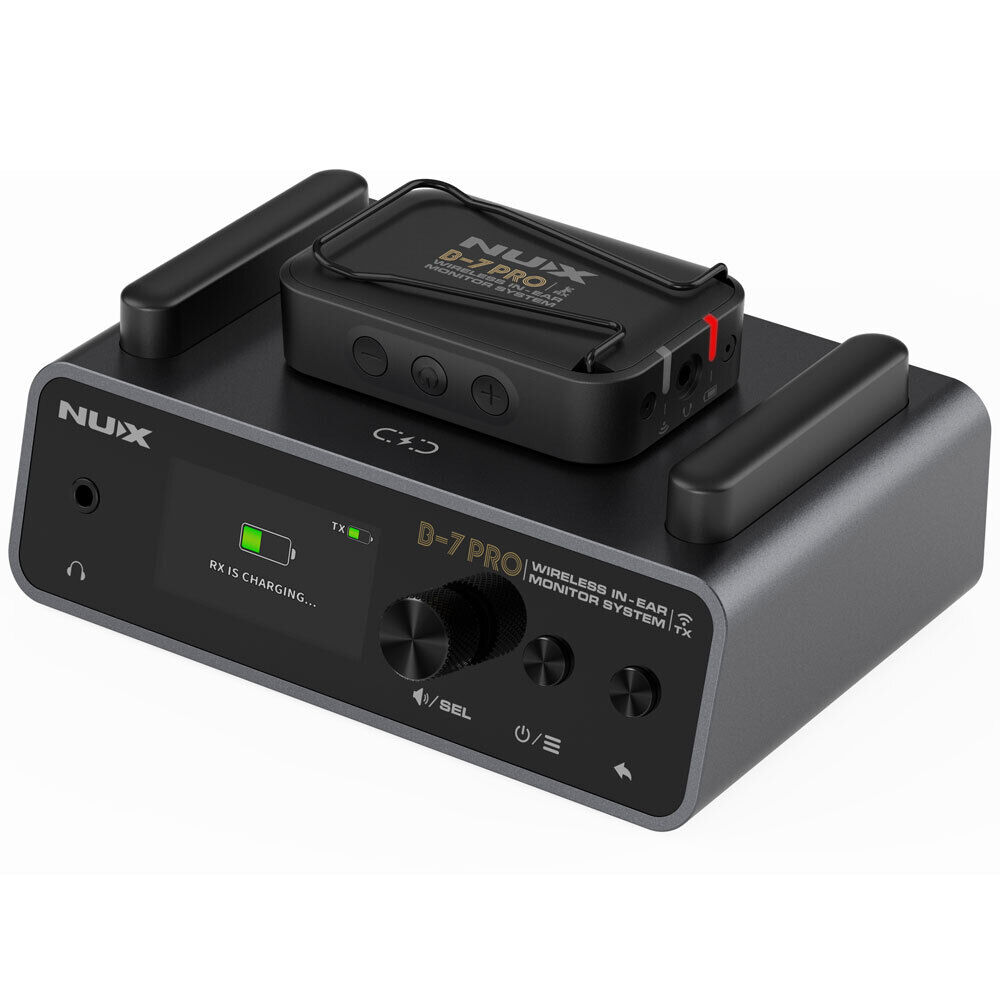

NU-X B-7PRO 2.4 GHz Professional Personal Wireless In-Ear Monitor System with LCD Display and Low Latency

The NUX B-7 PRO is a personal wireless in-ear monitor system with automatic setup, 2.4 GHz interference-free broadcasting frequency, and 24-bit 48 kHz high-quality stereo audio. The operation range is up to 50 meters (160-feet) with very low latency wireless transmitting. SPECIFICATIONS: Operating Frequency Band: 2400-2483.5MHz Transmit Mode: Frequency Hopping RF Output Power: 10mW E.l.R.P. max Audio Quality: 24bit/48kHz Frequency Response: 20Hz-20kHz Latency: 7.33ms (low latency setting) 10.85ms (default) 14.33ms (safe setting) Unbalanced Input lmpedance: 10kΩ Balanced Input lmpedance: 20kΩ AUX Input Level: 2.1 Vrms (8.7dBu) max Balanced Input Level: 9.8 Vrms (22dBu) max Headphone output Impedance: Minimum 13Ω Headphone Maximum output power per channel: 57mW (THD<0.1% RLOAD=16Ω,1kHz) Channel separation: -105dB - THD+N: <0.01% typical Dynamic Range: 110dB A-weighted Output level Adjustment Range: Mute -86dB~+12dB Auto-0ff: It automatically turns off after 10 minutes of no connection or if the connection is lost Built-in Battery Capacity: Rechargeable Li-polymer (Transmitter 3.7V/3000mAh, receiver 3.7V/400mAh) Battery Lifetime: TX (Transmitter): Up to 6 hours/ RX: Up to 6 hours Power Requirements: DC 9V, 1A min, negative tip power supplies (Transmitter) Operation Range: Up to 50m (165 feet) maximum TX (Transmitter) Dimensions (L x W x H): 140 x 97 x 53mm TX (Transmitter) Weight: 525g RX (Receiver) Dimensions (L x W x H): 47 x 71 x 22mm RX (Receiver) Weight: 51g High Quality Stereo Audio Monitor B-7 PRO personal wireless in-ear monitor system delivers stereo audio signal on 2.4 GHz frequency range. That's a global interference-free broadcasting range you can use everywhere without a signal break. With the 24-bit 48 kHz audio quality you will never experience unwanted sound degradation. Automatic Setup and Friendly Matching The user-friendly matching system makes it easier to use, just turn on the TX & RX and they will be paired with each other within a couple of seconds. Each wireless set has a unique pairing algorithm, it automatically detects each other and configures their own IDs. High Definition Colour LCD Display B-7 PRO features a high definition colour LCD display. You can check the information very easily while performing on stage. Long Distance, Low Latency With the latest transmitting technologies, the B-7 PRO wireless system has the best performance for musicians. The latency is as low as 7.3ms when you set the transmitting at LOW LATENCY. The operation range is up to 50 meters (160-feet). Stable Mode for Anti-Interference To achieve the best performance, you can adjust the transmitting parameter between LOW LATENCY and STABLE. To avoid interference, please check if there is any Wi-Fi device around the TX&RX. It will be better for TX&RX to stay 0.8~1.0 meter away from any other 2.4GHz device to acheive the best performance. Performance & Comparison Long Battery Lifetime The B-7 PRO features large Li-ion batteries inside the TX & RX. The battery lifetime is as long as 6 hours. Easily Recharging You can easily put the RX on the top of the TX to recharge it. Super convenient for you to fully recharge it. Connections Here we listed devices you may connect to the B-7 PRO wireless system. USB Audio Recording Connect the B-7 PRO's TX (transmitter) to your cellphone or computer, you can use the B-7 PRO as a USB interface for recording. No matter what you play with a band on stage, you can record all sounds you hear form the monitor. Enjoy! Customize your own Boot-up Picture The B-7 PRO wireless system allows users to customize their own boot-up picture with a GIF. - Download the "B-7 PRO GIF Customizer" from the Support section from the link below on this webpage and install it. - Connect the B-7 PRO wireless system to your computer, and launch the "B-7 PRO GIF Customizer" - Disconnect and reboot the B-7 PRO wireless system, and then enter to the DISPLAY setting and set the BOOT-UP PICTURE option to USER. ** Free Firmware Updates and Manuals are available by clicking here then selecting "Support"
