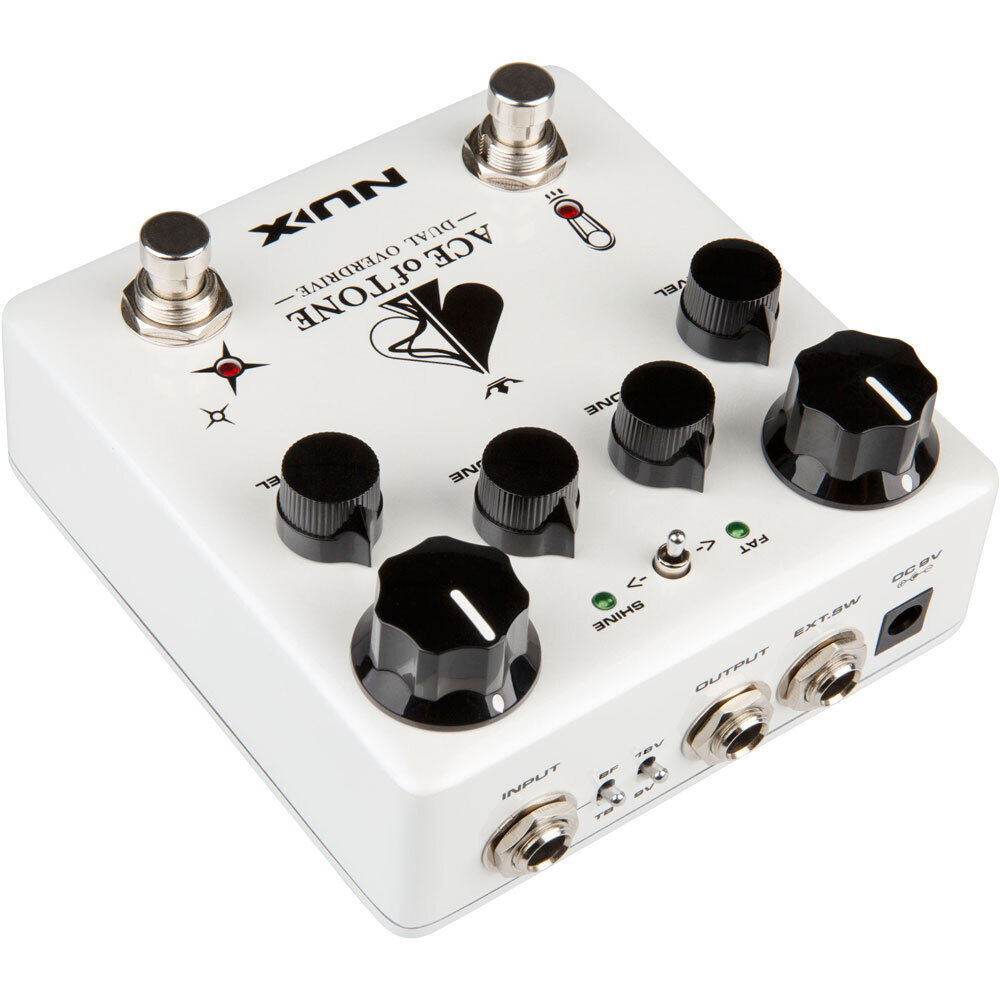

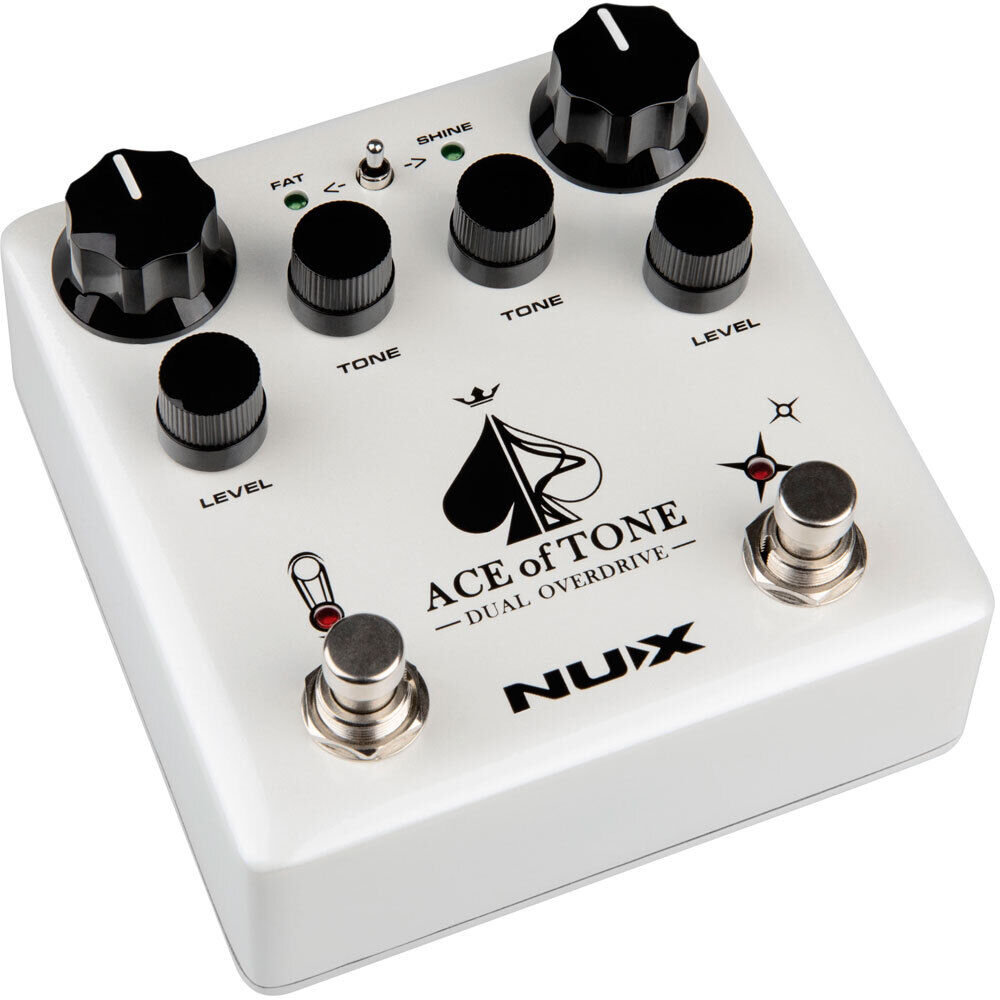

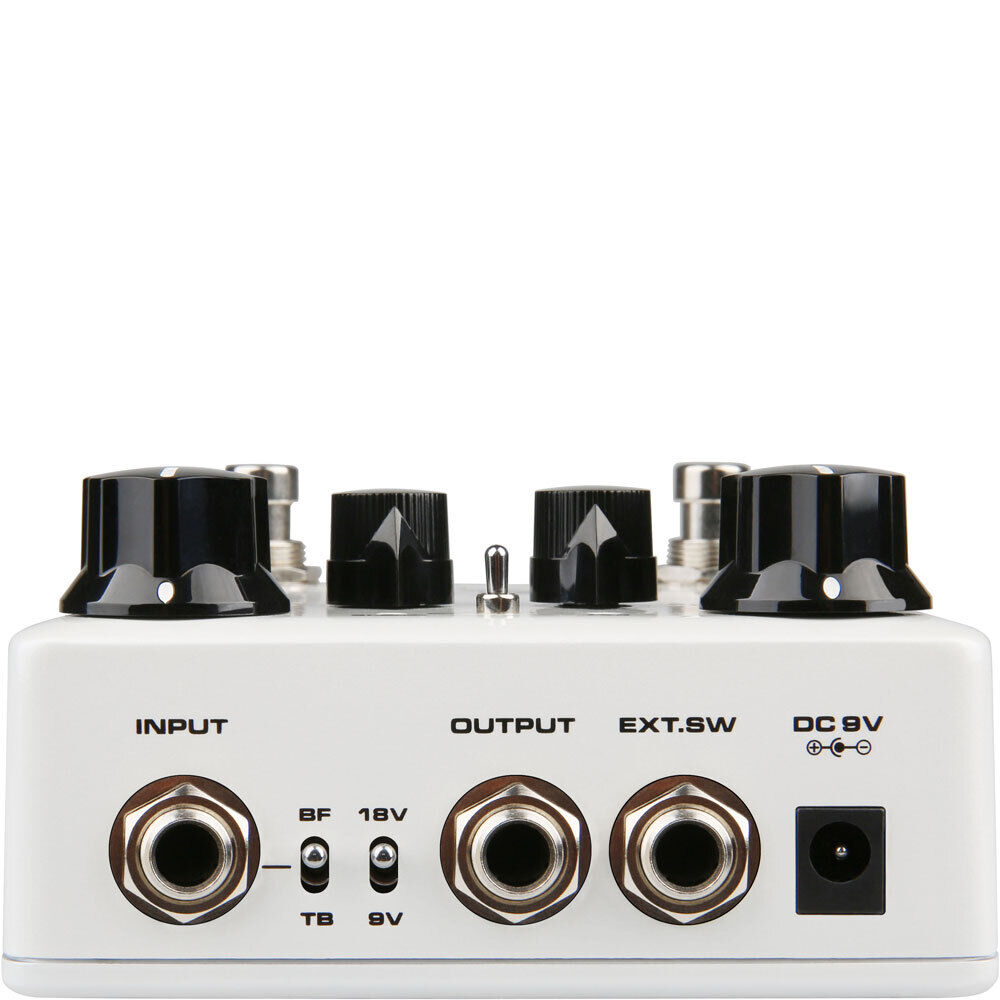

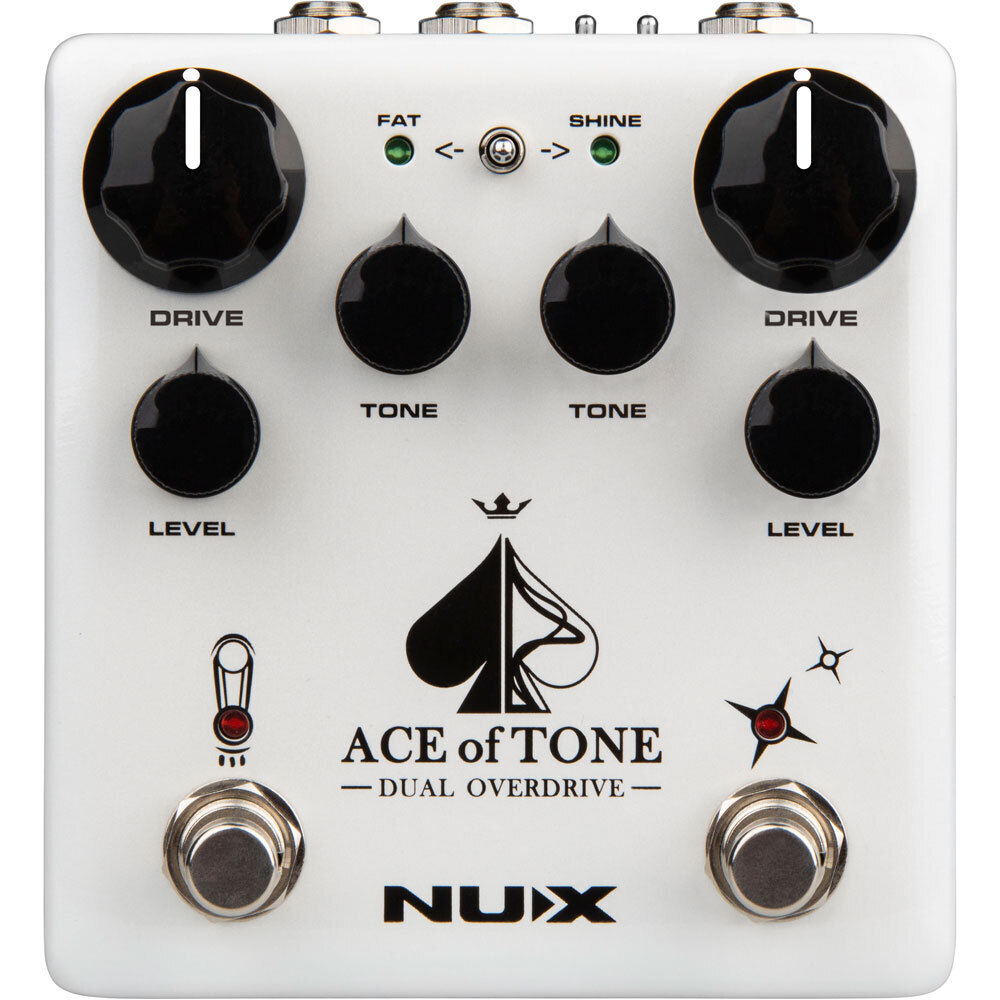

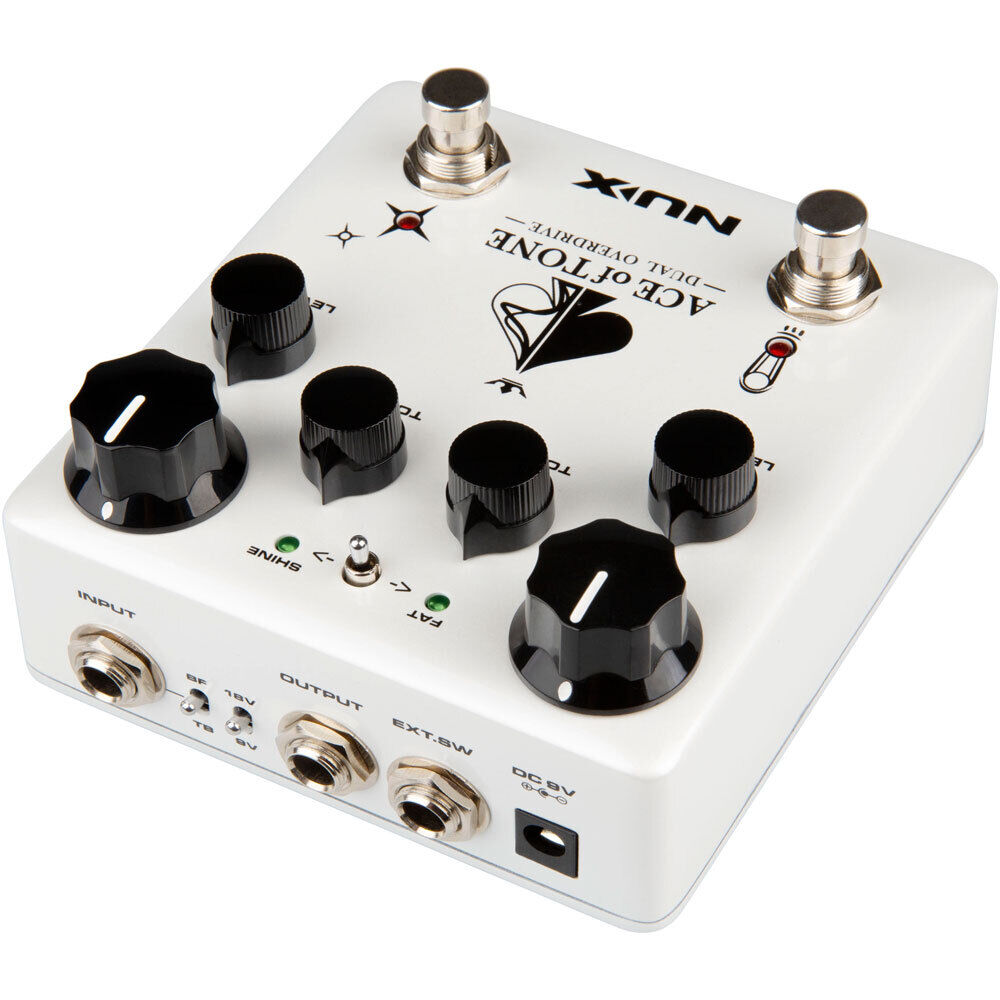

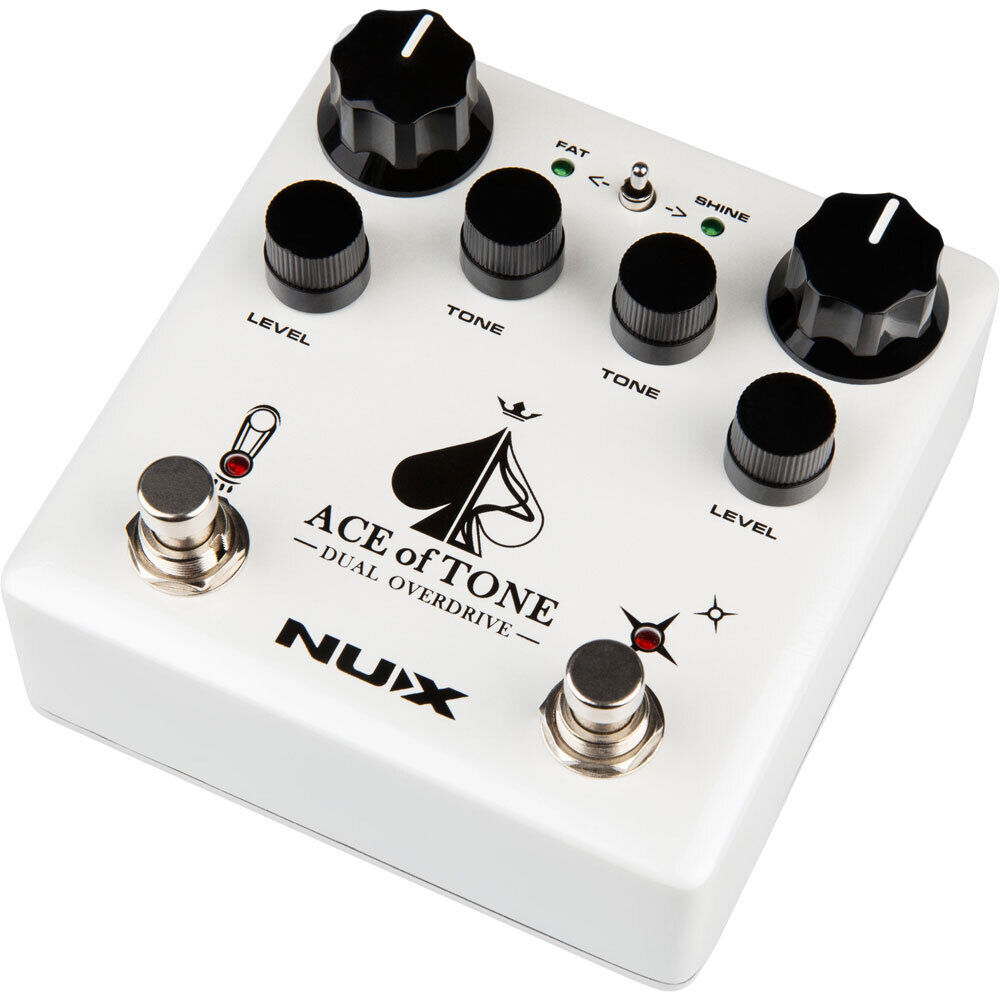

NU-X Verdugo Series Ace of Tone Dual Overdrive Effects Pedal

ACE of TONE is a dual overdrive pedal stacked with Tubeman MKII and Morning Star. Why? Because great guitarists love 2 overdrives to stack their tone. In the left corner, Tubeman with FAT mode. Tubeman offers way more clarity and gain than any classic Tubescreamer, and we modified the circuit with a useful secondary function by simply holding the foot switch - FAT mode. It cranks way more bass response to enhance the low-end yet makes the tone warmer! In the right corner, Morning Star with SHINE mode. Morning Star is based on legendary Bluesbreaker circuit: very transparent, low gain drive. Like our Morning Star, it also features a simple FOOT SWITCH HOLD to engage the iconic SHINE mode. In SHINE mode, you can get way more treble sound to make your tone crystal-clear. Specifications: Input Impedance: 2.2M ohms Output Impedance: 1K-ohms Power: 9V DC (Negative tip,Optional ACD-006A adapter) Current Draw: Less than 100mA Dimensions: 105mm (L) x 115mm (W) x 58mm (H) Weight: 440g Control Panel Left Side (Tubeman) DRIVE Knob: Controls the gain of Tubeman circuit. TONE Knob: Controls the treble frequency of Tubeman circuit. LEVEL Knob: Controls the volume of Tubeman circuit. Footswitch: Engage/Disengage Tubeman circuit. Hold it for 1 second, you can turn on/off FAT mode. FAT Indicator: While you engaged FAT mode, the indicator will turn on. Right Side (Morning Star) DRIVE Knob: Controls the gain of Morning Star circuit. TONE Knob: Controls the treble frequency of Morning Star circuit. LEVEL Knob: Controls the volume of Morning Star circuit. Footswitch: Engage/disengage Morning Star circuit. Hold it for 1 second, you can turn on/off SHINE mode. SHINE Indicator: While you engaged SHINE mode, the indicator will turn on. Routing Toggle Switch: You can adjust the order from Morning Star to Tubeman or Tubeman to Morning Star. It's very useful to stack the sound. Inputs / Outputs Input: Connect your guitar side to INPUT jack. Output: Connect the OUTPUT signal to amp side. EXT. SW: You can use external foot controller (like NUX NMP-2) to remote this pedal. BF / TB Toggle Switch: BF means Buffer-Bypass, TB means True-Bypass. You can choose BF while you connect with several pedals in your signal chain to solve tone-loss situation. 18V/9V Toggle Switch: ACE of TONE can double the voltage internally while you toggle to 18V position, that can increase dynamic range and headroom. DC Jack Use ONLY: 9V Negative Tip power with 100mA.
