Xvive V21 Echoman Delay Pedal

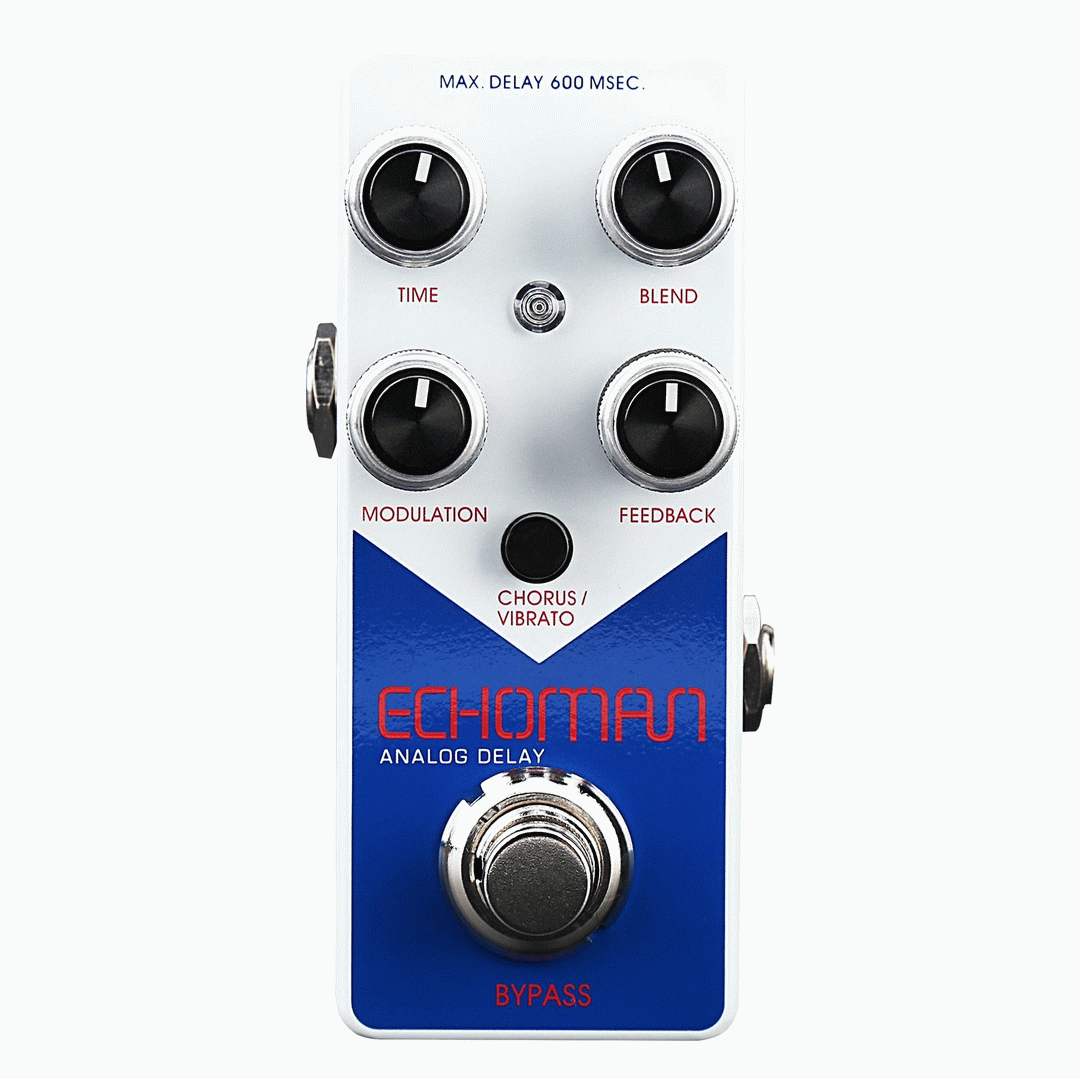

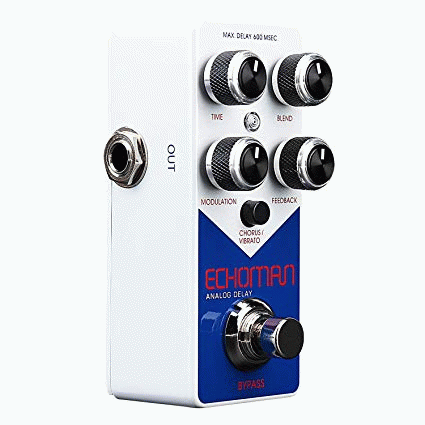

XVIVE V21 ECHOMAN DELAY PEDAL The Xvive V21 Echoman Vintage Pure Analog Delay guitar effect pedal. Echoman uses two Xvive BBD3005 chips, classical analog circuit sound, 600 ms delay time, with Chorus/Vibrato modulation effect, to add a deeper atmosphere to your sound. With FEEDBACK , Time Knob , more effect can be brought out. XVIVE Audio proprietary chip design ( MN3005 BBD). Up to 600 msec of delay time with no aliasing distortion. Buffered bypass with a 900K input impedance Wide bandwidth - good high frequency response even at long delay settings. Feedback control allows self-oscillation if desired. Blend control allows adjusting the output from dry signal only to delayed signal only. High-tech filtering and noise reduction circuitry an excellent signal to noise ratio, even at long delay settings. TRUE BYPASS Footswitch: Push down the footswitch to switch between effects and bypass status. ON/OFF LED: V21 On and Off. Blue LED Modulation is Chorus, Red is Vibrato. DC IN Power Jack: For power supply, use a 9-volt DC regulated AC adapter(plug polarity is positive on the barrel and negative in the center) INPUT Jack:1/4‚¬ï¿½ mono audio jack. For connect ing guitar. OUTPUT Jack: 1/4‚¬ï¿½ mono audio jack, outputs the signal. Blend Knob: Mix the input level and delay level Feedback Knob: Adjust the feedback of delay effects. Time Knob: Adjust the delay time. Max is 600ms. Modulation: Adjust the Chorus or Vibrato effect. Chorus/Vibrato: Switch to Chorus or Vibrato.
