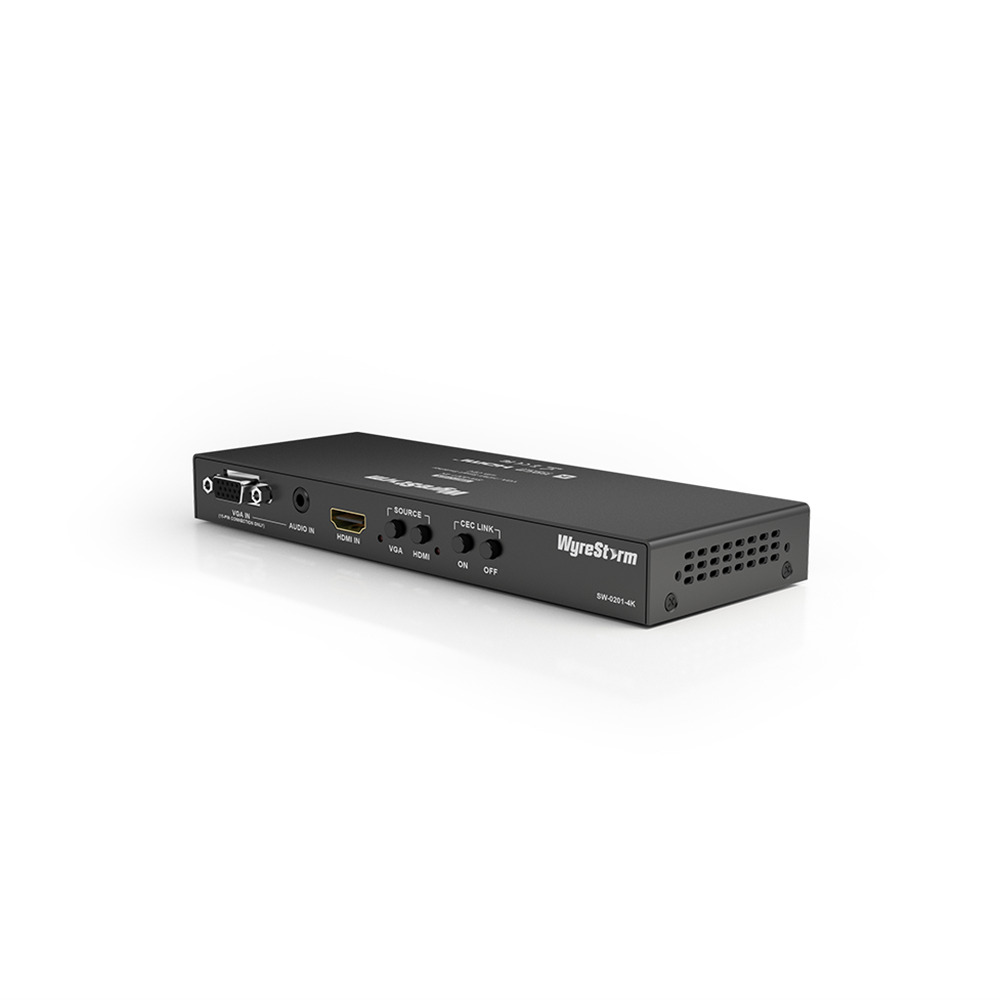

Wyrestorm SW-0201-4K 2x1 HDMI/VGA Smart Switch with CEC Control

THIS PRODUCT IS FOR ONLINE ORDER ONLY. 2x1 HDMI/VGA Smart Switch with CEC ControlSW-0201-4KThe SW-0201-4K is a compact dual input device for manually or automatically switching a connected HDMI or VGA+ audio source to a single HDMI output with CEC-Link ensuring the display device is powered on during use.No additional cabling is required other than a simple HDMI connection with manual control of source switching and CEC via push buttons on the front of the unit or by using the contact closure points which can be wired in-desk or to a wall plate.UP TO 4K CONTENTAn introduction to the Huddle Series the SW-0201-4K offers more than one would expect from an entry level device. Supporting up to 4K content from HDMI sources @60Hz and 1920x1200p from VGA the SW-0201-4K is a great product for a great price!AUTO SWITCHINGWhile the SW-0201-4K can be switched manually with its front panel buttons it also has the ability to automatically switch between VGA and it's HDMI using the First-In Last-Out rule making switching as seamless as possible.CEC TRIGGERINGWith CEC capable displays CEC can be triggered from source detection or with use of the front panel CEC control allowing the user to power on and off displays through the HDMI cable with a touch of a button.OUT OF SIGHT¦¦Out of mind. The SW-0201-4K doesn't require additional cabling other than a simple HDMI connection and with it's sleek and compact chassis can be discretely mounted to a desk or table for un-obstructive installations.FEATURESProvides automatic or manual switching of connected HDMI and VGA + audio sourcesCEC Link allows for connected CEC compatible display devices to be powered On automatically when source is in useContact closure control via wired desk or wall plate for sources and CEC allow for switcher to be installed out of sightSupports 4K content from HDMI sources and 1920x1200p from VGACompact chassis can be desk-mounted for unobtrusive installationHDCP compliant3D supportedSupports transmissions up to 4K@60Hz (HDMI)Supports HD resolutions up to 1920x1200 (VGA)Auto-switching transmitter detects and selects VGA (+audio) and HDMI devices as soon as the source is connectedAudio embed for VGA via 3.5mm jackCable termination follows IEEE-568B standardsLED indication for power supply to unit and source selectionThreaded bushings allow use of both standard and locking DC power plugsEnergy efficient universal power supply includedMounting brackets includedSPECIFICATIONSAudio and VideoInputs1x HDMI In: 19-pin type A1x VGA In: 15-pin DSUB15 VGA1x Audio In: 3.5mm (1/8in) TRS StereoOutputs: 1x HDMI Out 19-pin HDMI type AOutput Video Encoding: TMDS HDMIAudio Formats: 2ch PCMMax. Video Resolution1920x1200p @60Hz 8bit (15m/50ft)1920x1080p @60Hz 8bit (7m/23ft)3840x2160p @30Hz 4:4:4 8bit (7m/23ft)4096x2160p @60Hz 4:2:0 8bit (7m/23ft)Color Depth: 8bitMaximum Pixel Clock: HDMI - 340Mz | VGA - 165MHzCommunication and ControlHDMI: HDCP 2.2 Compliant | EDID | CEC | DVI/D supported with adapter (not included)RS-232: 1x RS-232: 3-pin PhoenixCEC Link Relay: 1x CEC Link: 3-pin PhoenixSource Control Relay: 1x Source: 5-pin PhoenixPowerPower Supply: 12V DC 0.5AMax Power Consumption: 1.5WEnvironmentalOperating Temperature:32°F ~ 113°F (0°C ~ 45°C)10% ~ 90% non-condensingStorageTemperature-4°F to ~ 158°F (-20°C ~ +70°C)10% ~ 90% non-condensingMaximum BTU: 5.11 BTU/hrDimensions & WeightRack Units/Wall Box:
