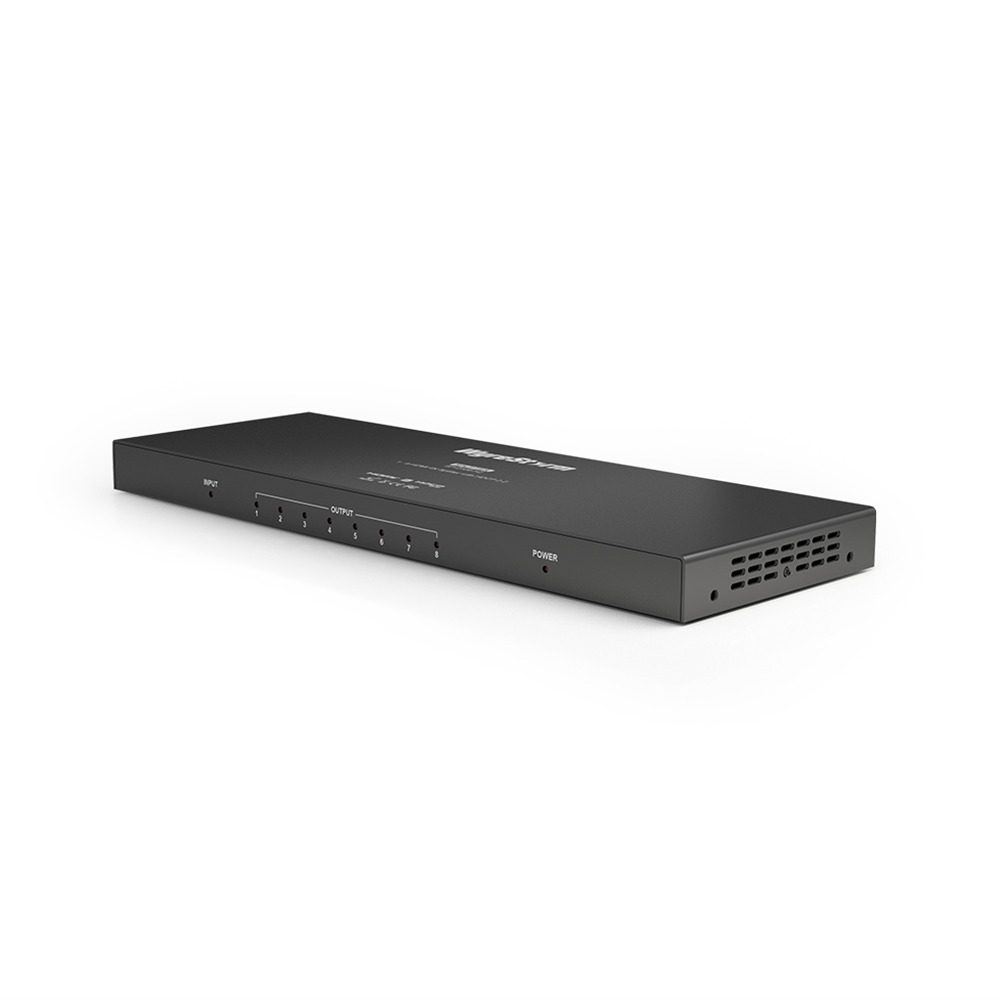

Wyrestorm Sp-0108-H2 Splitter SP0108H2 Wyrestorm

THIS PRODUCT IS FOR ONLINE ORDER ONLY. 1:8 4K HDR HDMI Splitter with HDCP 2.2 and EDID managementSP-0108-H2For larger installations requiring support for 4K/HDR resolutions HDCP 2.2 and HD multi-channel audio up to eight screens look no further. The SP-0108-H2 offers twice the number of screens as its smaller sibling but shares the same simple reliable distribution of a single HDMI source to multiple duplicate displays. It also features an equally compact chassis height for just as stealthy wall-mountable installations.4K UHD 8-WAYSWith support for 4K/60 4:4:4 and a powerful backplane capable of fully-loaded 18Gbps distribution to eight outputs the SP-0108-H2 is the perfect way to achieve multi-point single source distribution.HDCP2.2 COMPLIANCEThe latest 4K UHD content arriving via satellite cable disc or stream is all heavily encrypted to protect it from being illegally duplicated. Being part of the H2 product family the SP-0108-H2 supports the multi-point distribution of this content over HDBaseT.EDID ADJUSTMENTWith so many EDID tables to choose from the SP-0108-H2 comes with various EDID options to optimise sink-source communication. Built-in EDID's allow a defined timing signal to be selected or copy mode from port #1 means that a connected screen can be used as the master. SLIM FORM-FACTORComing complete with mounting brackets the SP-0108-H2 can be both wall & surface mounted. The 18mm chassis allows for unobtrusive installation.FEATURESSplits a single HDMI 4K/HDR or 1080p HD device to eight 4K/HDR or HD display devicesSupports resolutions up to 4K@60Hz including 3840x2160 (HDR) and 4096x2160 (DCI) and 1920x1080p@60HzHDCP 2.2 supportedColor depth 24bit (4K) and 36bit (1080p) full 4K chroma subsampling color palette 4:4:43D compatible (up to 1080p)DVI support up to 1920x1200Multichannel Dolby and DTS HD audio supported up to 7.1 (mirrors source)Extensive EDID management for improved compatibility and communication between connected source and display devicesFront panel LED indication for visual confirmation of I/O and power connectivityLocking DC 12v power port3-pin Phoenix connector for firmware updatesTransmission distance up to 10m/33ft (4K/1080p input 4K output) 15m/49ft (1080p output) using standard high speed HDMI cablesUltra-slim 18mm chassis design for space-saving local installation surface mountableUnits cascadable to create larger systems12v DC 1A power supply and mounting brackets includedSPECIFICATIONSAUDIO AND VIDEOInputs(Version 1) 1x HDMI 19-pin type A(Version 2/3) 1x HDMI 19-pin type AOutputs(Version 1) 8x HDMI 19-pin type A(Version 2/3) 8x HDMI 19-pin type AAudio Formats: 2ch PCM | Up to DTS-X and Dolby Atmos 2ch PCM | Up to DTS-X and Dolby AtmosVideo Resolutions (Max)Version 1Version 2/31920x1080p @60Hz 12bit (15m/49.2ft) | 16bit (15m/49.2ft)1920x1080p @60Hz 12bit (15m/49.2ft) | 16bit (15m/49.2ft)3840x2160p @30Hz 4:4:4 8bit (15m/49.2ft)3840x2160p @30Hz 4:4:4 8bit (15m/49.2ft)3840x2160p @24Hz 4:2:0 HDR 10bit (15m/49.2ft)4096x2160p @60Hz 8bit 4:2:0 (15m/49.2ft)4096x2160p @60Hz 8bit 4:2:0 (15m/49.2ft)4096x2160p @60Hz 8bit 4:4:4 (3m/9.8ft)Color Depth:(Version 1) 1080p: 48bit | 4K UHD: 24bit(Version 2/3) 1080p: 48bit | 4K UHD: 24bit | HDR @24p: 10bit BT.2020Maximum Pixel Clock:(Version 1) 340mHz(Version 2/3) 600mHzCommunication and ControlHDMI:(Version 1) HDMI 1.4 | HDCP 1.4 | Configurable EDID DVI/D supported with adapter (not included)(Version 2/3) HDMI | HDCP 2.2 | Configurable EDID DVI/D supported with adapter (not included)RS-232:(Version 1) 1x RS-232 3-pin Phoenix Connector (Firmware Updates)(Version 2/3) 1x RS-232 3-pin Phoenix Connector (Firmware Updates)PowerPower Supply: Input: 100~240V AC 50/60Hz | Output: 12V DC 2AMax Power Consumption: 6WEnvironmentalOperating Temperature:32°F ~ 113°F (0°C ~ 45°C)10% ~ 90% non-condensingStorage Temperature-4°F to ~ 158°F (-20°C ~ +70°C)10% ~ 90% non-condensingMaximum BTU: 20.47 BTU/hrDimensions & WeightRack: Units/Wall Box
