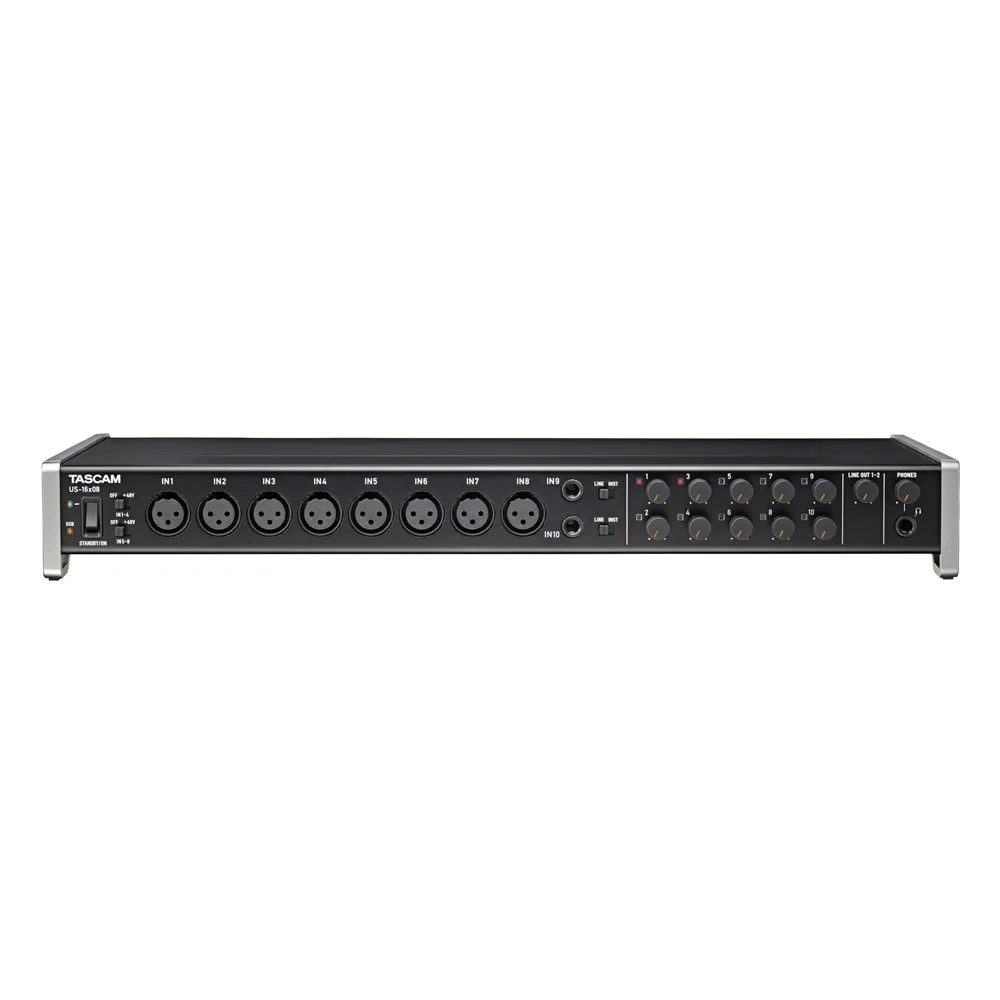

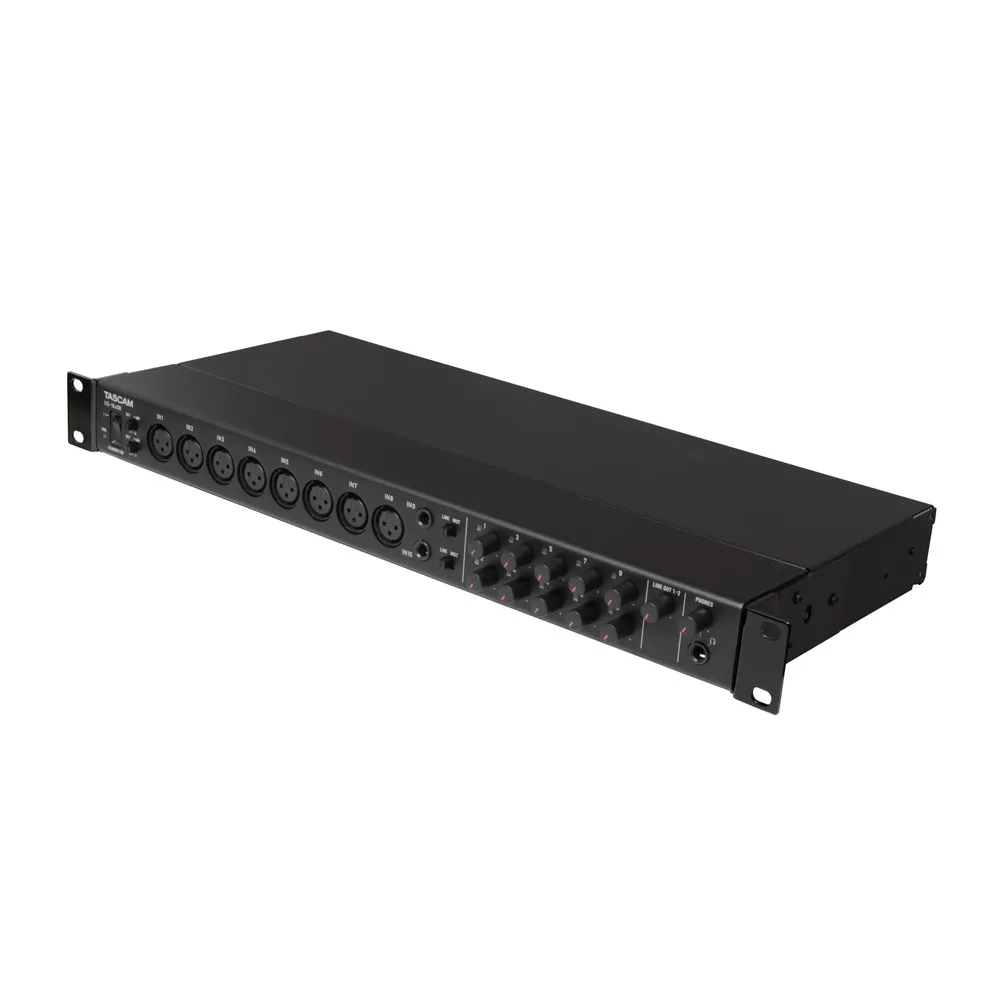

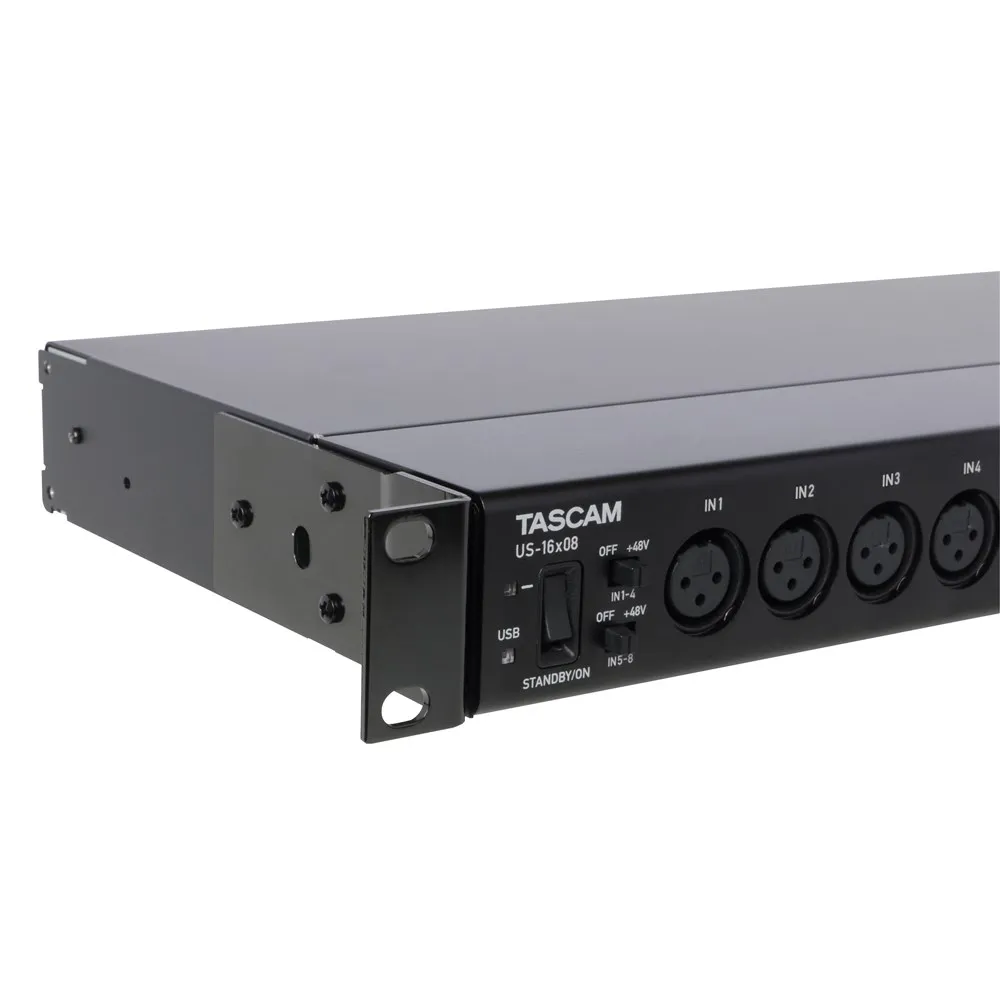

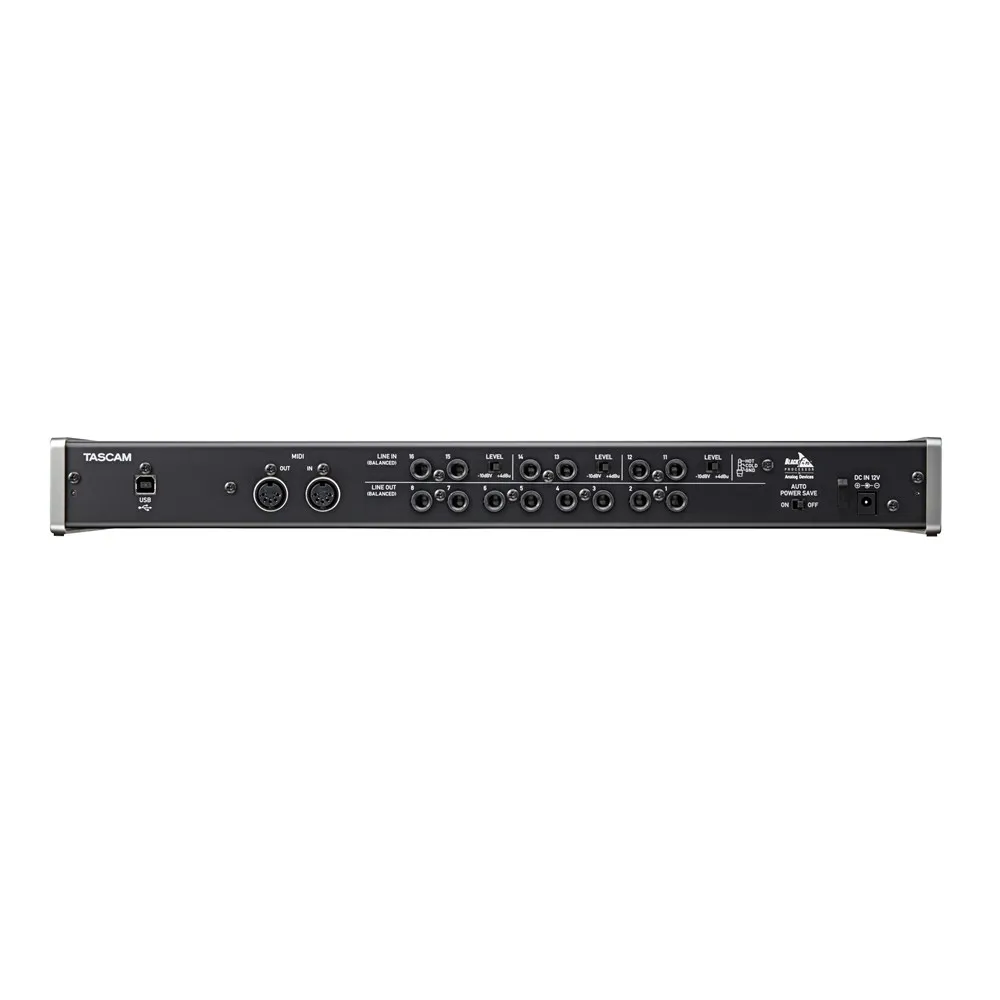

Tascam US-16x08 16IN/8OUT USB Audio Interface with DSP Mixer and Ultra-HDDA Preamps

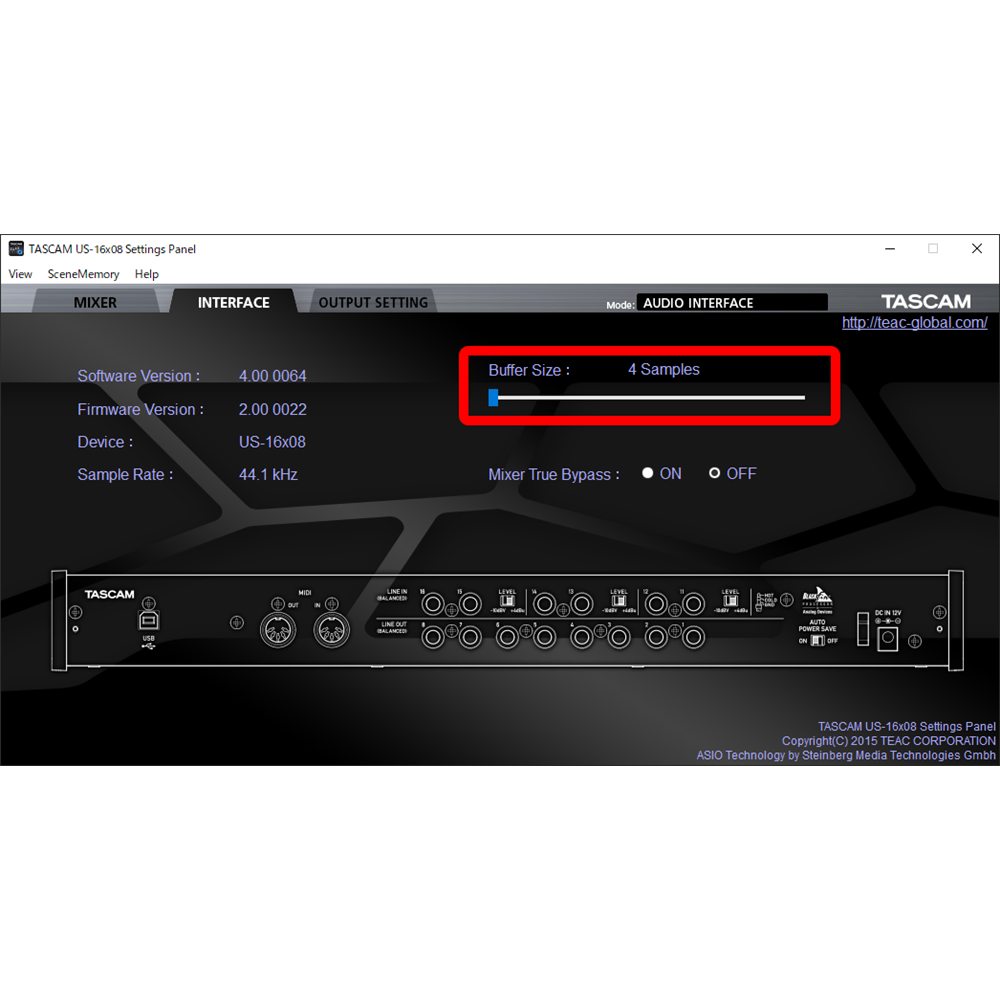

Recording enabled with both iOS devices and multi-channel Powered by an Analog Devices BlackFin DSP processor, the US-16x08 includes an advanced digital mixer for monitor mixing. Each input includes 4-band EQ, a low-cut filer, and compressor. The DSP mixer can store up to 10 snapshots as scenes - making it easy to recall mixer settings. An additional tab opens a digital patchbay to route signals to any output. The class-compliant driver allows it to be used with tablets like Apple's iPad. (Requires Apple's Camera Connection Kit for USB connection) Discrete Ultra-HDDA Mic Preamps Deliver Low Noise and Low Distortion TASCAM's Ultra-HDDA (High Definition Discrete Architecture) mic preamp design is based on discrete components, just like classic professional gear. They achieve an incredible EIN rating of -125 dBu, meaning their noise level is practically below the range of hearing. Other impressive specs include a signal-to-noise ratio of 100 dB, out-speccing anything in its price range. But instead of judging the design merely by test measurments, key components were selected following extensive listening tests. Rock Out with Amp Simulator Software using the Guitar Inputs The first two channels can be switched to direct guitar inputs. They're ideal for direct recording of electric and acoustic guitar and bass without the need for a preamp. Use them with amp modeling software, like the TH2 effect included with SONAR X3. * Guitar effect plug-ins sold separately. Eight XLR mic inputs and 8 TRS line inputs The eight XLR mic inputs have switchable +48V phantom power to use up to 8 condenser mics at the same time. The two front panel TRS line inputs are switchable between instrument level and line level input with adjustable gain. An additional six TRS line ins on the rear of the unit are switchable between -10dB and +4dB. All of the jacks support balanced or unbalanced 1/4" signals. Use as a Standalone Mic Preamp When powered on with out a USB connection, the US-16x08 functions as an 8-channel microphone preamp. Mics pass through the Ultra-HDDA preamps to the eight balanced line outputs on the rear panel. Use the interface to add additional high-quality mic inputs to a mixer an another audio interface. * When using the mic preamp mode, each input is connected to each output directly. Also, cannot use all functions of DSP mixer. For example, IN1 is connected OUTPUT1 directly through the Ultra-HDDA mic preamp. Additional Features Features at a Glance Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −125dBu EIN Eight Ultra-HDDA mic pres with XLR connectors, eight TRS inputs Standalone mode for use as an independent mic preamp Up to 96kHz/24-bit recording Connect with iPads and other iOS devices via Class Compliant drivers +48V phantom power available for all microphone inputs High-impedance inputs available 56 dB of preamp gain, ideal for dynamic or ribbon microphones Eight TRS outputs Separate controls for line and headphones output volumes MIDI input and output Low-latency monitoring via on-board DSP mixer DSP mixer with 4-band EQ and compression on each input channel
