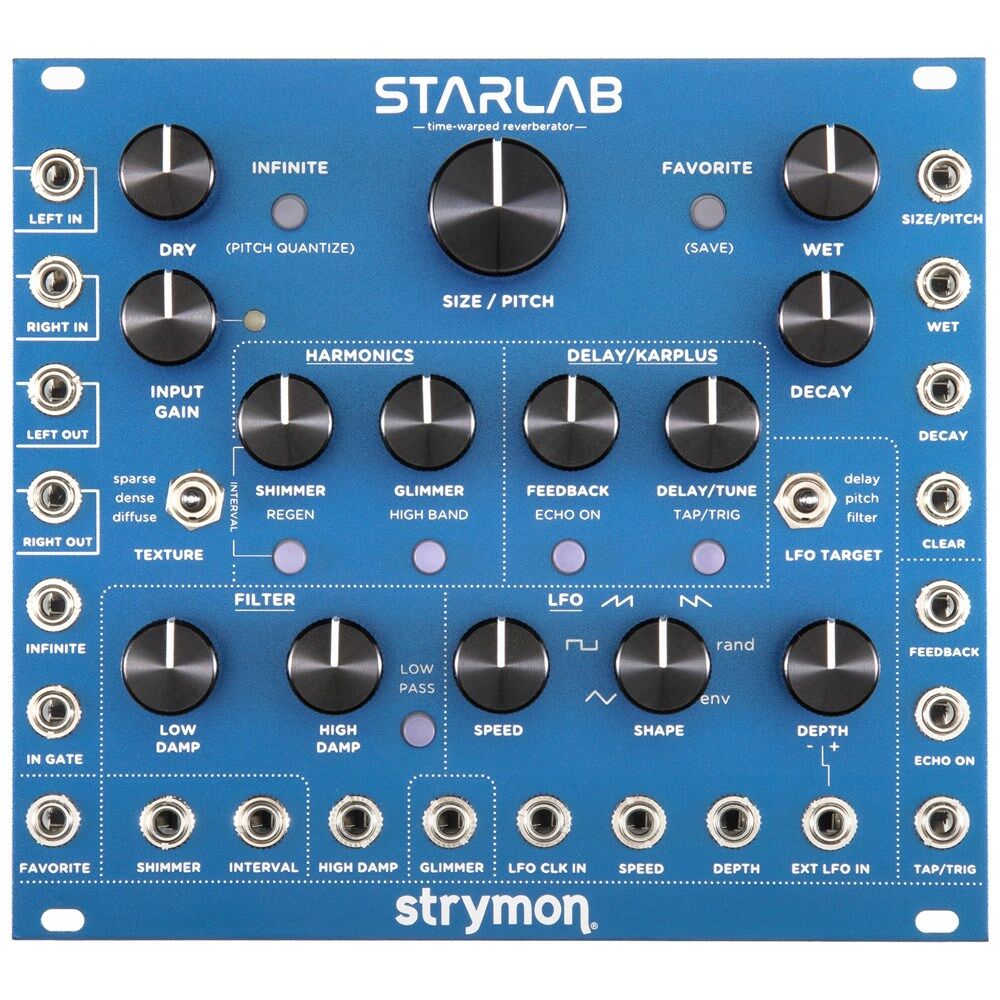

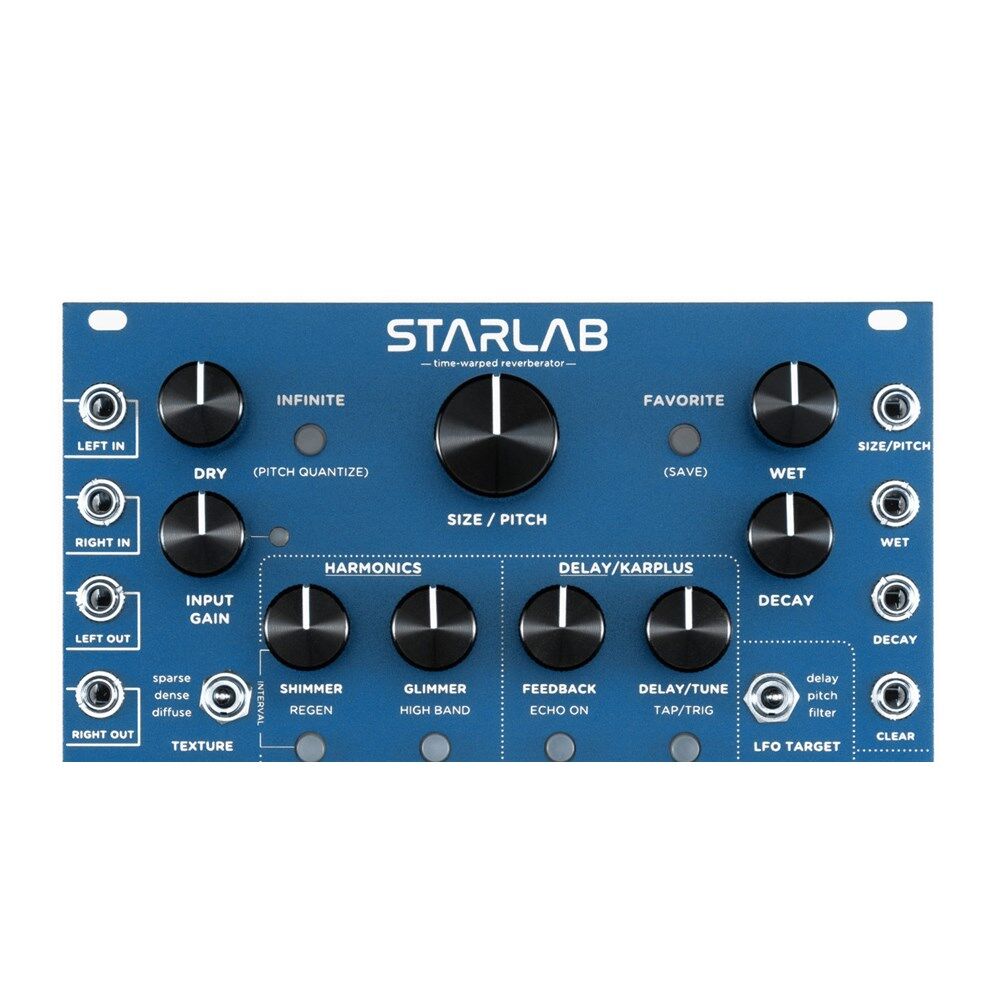

Strymon Starlab Experimental Reverb Module

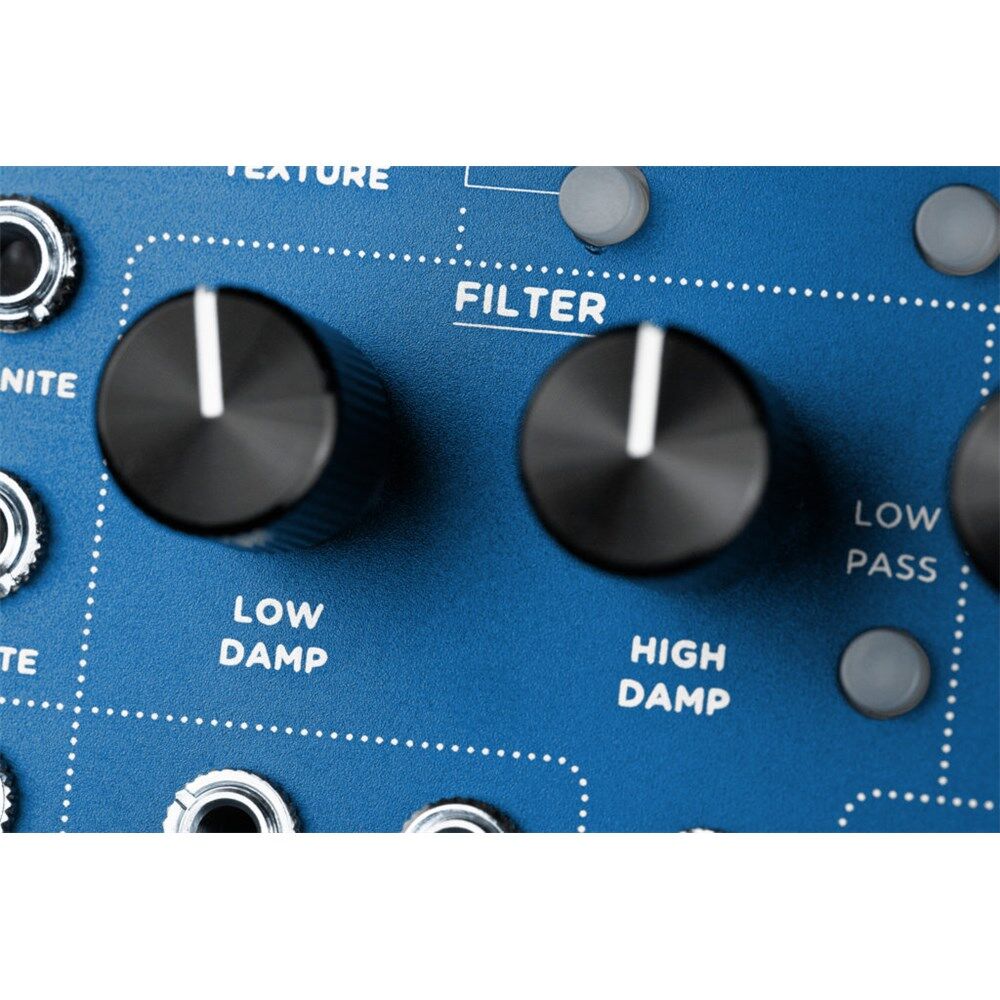

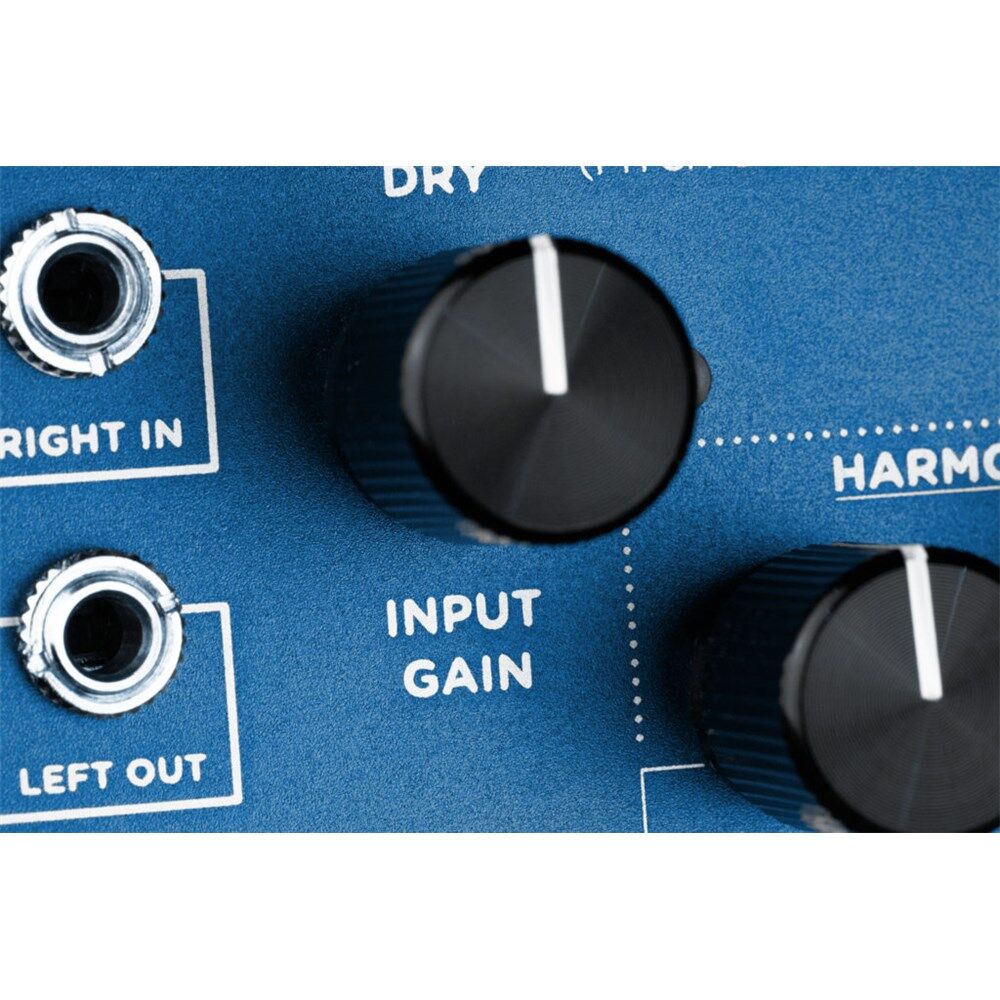

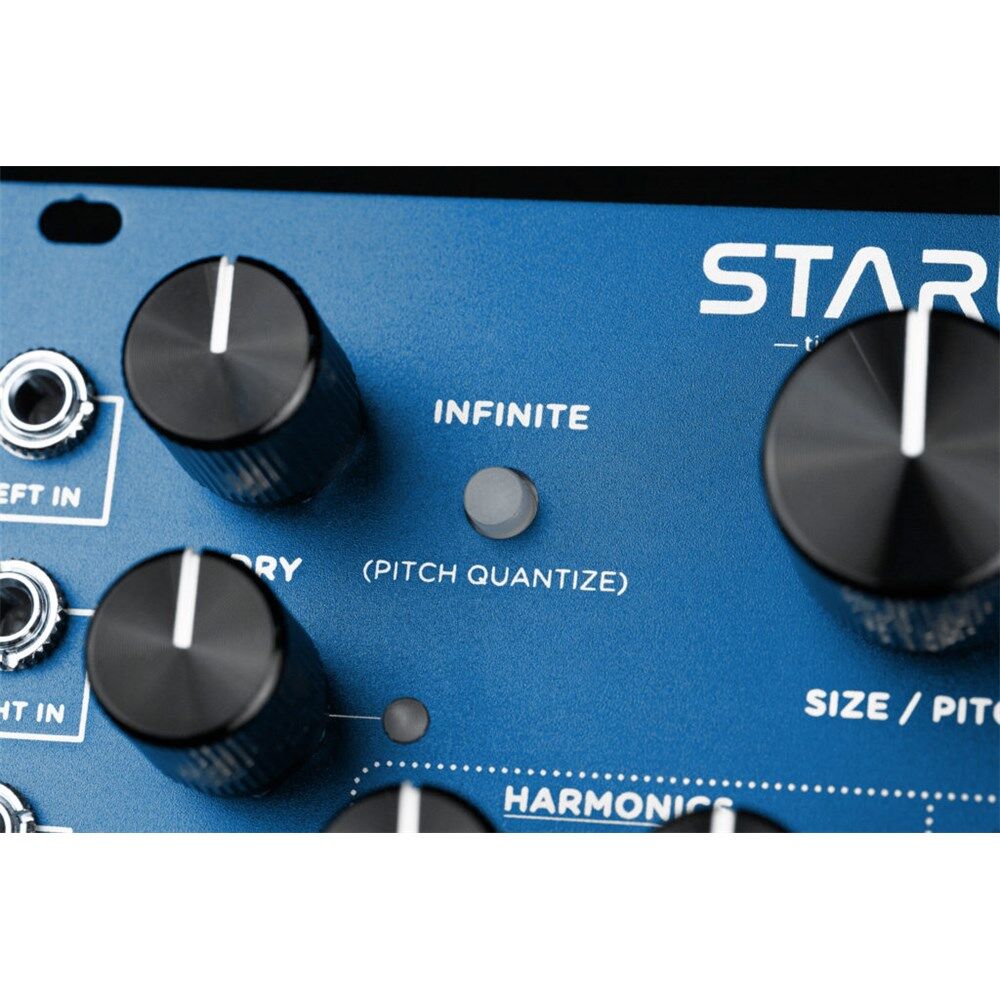

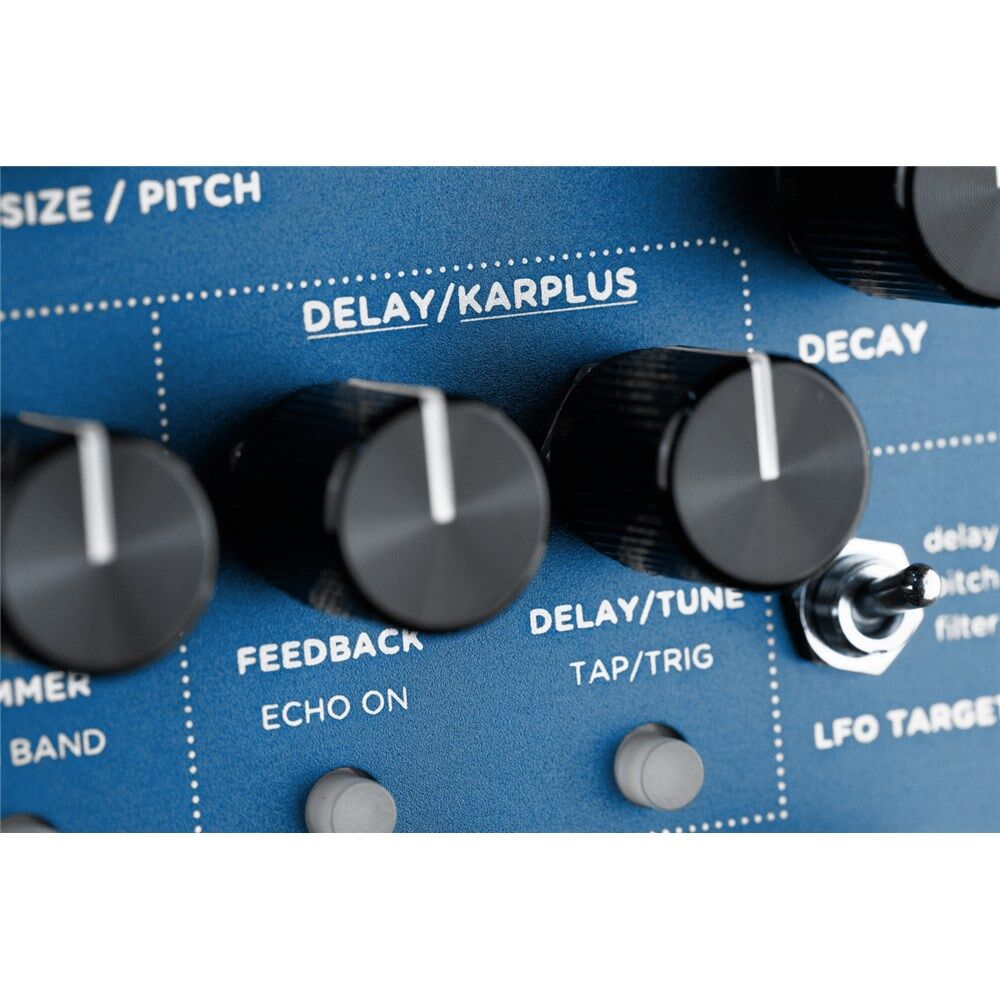

Specs Sound Design Three selectable reverb types for a wide variety of ambient textures DELAY/KARPLUS section with feedback Delay assignable to output for mod/verb and delay/verb effects Four-octave Karplus-Strong string synthesis mode with damping control for string/verb full voice capability LFO section with various waveforms to modulate delay time, reverb size, or tone filters FILTER section to sculpt the high and low EQ of the reverb and DELAY/KARPLUS section HARMONICS section to enhance the aural spectrum of the reverb Adjustable SHIMMER for adding pitch shifting of up to +/- 1 octave to the reverb GLIMMER for dynamic enhancement of harmonics Adjustable reverb core size to increase or decrease the space for reflections, allowing for pitch control of the regenerating reverb content 4-pole 24dB/octave variable resonance low pass filter INFINITE freezes the input audio prior to the reverb tank Independent WET and DRY level controls Ins, Outs, and Switches Stereo inputs and outputs Extensive CV control of parameters Access to four presets from the front panel USB jack (located on the rear) for performing firmware updates Audio Quality Analog dry path for a zero latency dry signal that is never converted to digital Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality Super high performance ARM DSP 32-bit floating point processing Dimensions & Power Rack width: 28hp Rack depth: 41mm, 1.61” +12V rail: 210mA -12V rail: 210mA +5V rail: 0mA Designed and built in the USA
