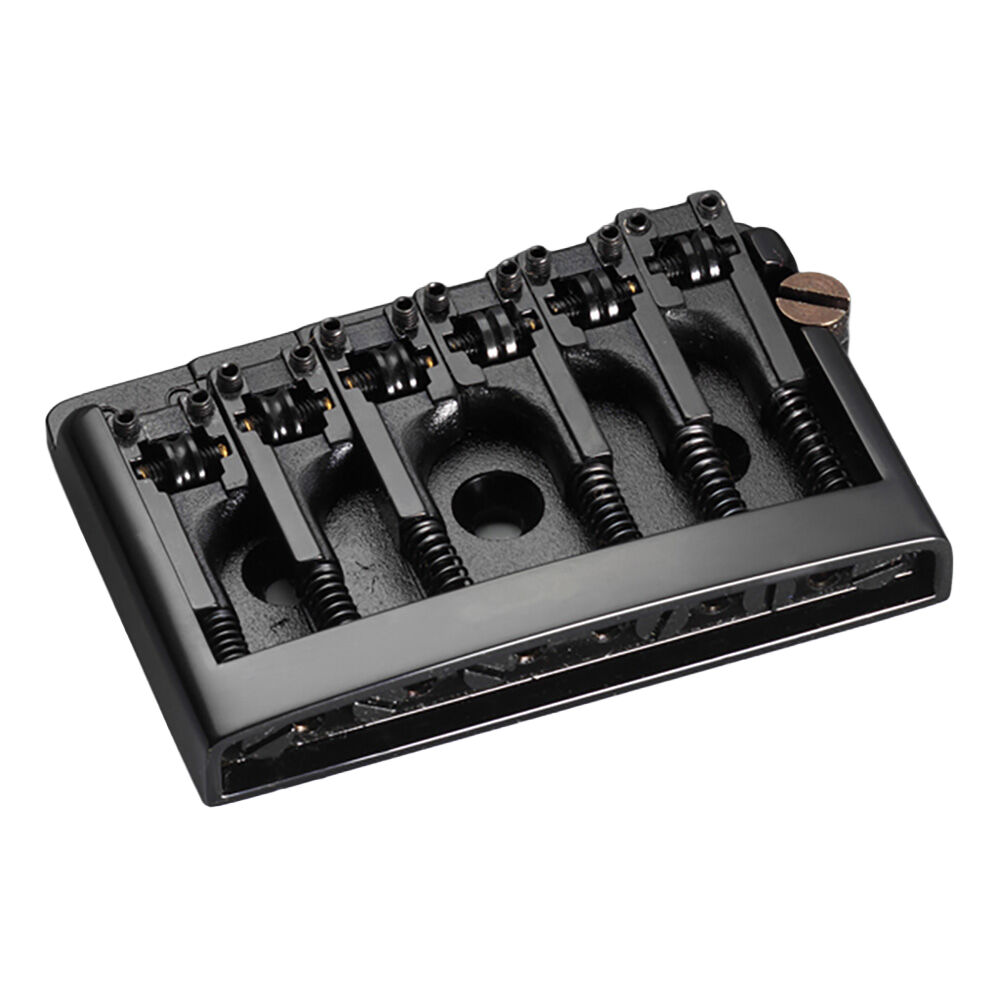

Schaller Guitar Bridge 3D-6 Black - 12120400

3D-6: patented flatmount bridge for guitars With adjustable height, intonation and string spacing: roller bridge saddles. The roller bridge saddles reliably minimize string breakage while maintaining intonation and tuning stability. 3-dimensional adjustment of string height, intonation and string spacing (with roller bridge saddles). The individual string intonation is set by adjusting the string saddles. String rests with shafts and rollers made of solid and uncoated Pure Sound brass for excellent sound transmission. Heavy and precise construction for extra long sustain. Variable overall height with 3mm spacer. The strings lie on low-friction roller saddles which prevent the strings from breaking. Comes with 2 different type saddle rollers to suit tone and string bending requirements: wide flat rollers for low strings and tight U-shaped for high strings. This means the string spacing can be adjusted flexibly. Advantages of Pure Sound brass Due to its softness, brass is an ideal saddle material and offers sufficient resistance to the strings. Uncoated brass saddles (plain or notched) can be easily customized by the guitar maker with a saddle file for smooth transitions. Form-fit support of the components in conjunction with improved string contact thus supports playability, intonation and sustain. Technical specifications String spacing (E-e): 50 – 56.5 mm Sring spacing individual (neighboring strings): 10 – 11.3 mm String radius: adjustable from 7″ to 20″ inch Minimal G/d string height above body: 11.1 mm Height adjustment: 3.5 mm Maximum string gauge: 0.052 Weight: 152 gram, 198 gram with accessories Please note: not suitable for left-handed models! Height adjustment screw: grub screw with conical point with hexagon socket M2.5 x 6 Scope of supply 1 x 3D-6 bridge 3 x mounting screws M4.2 x 25 mm without optional 3 mm underlay (spacer)
