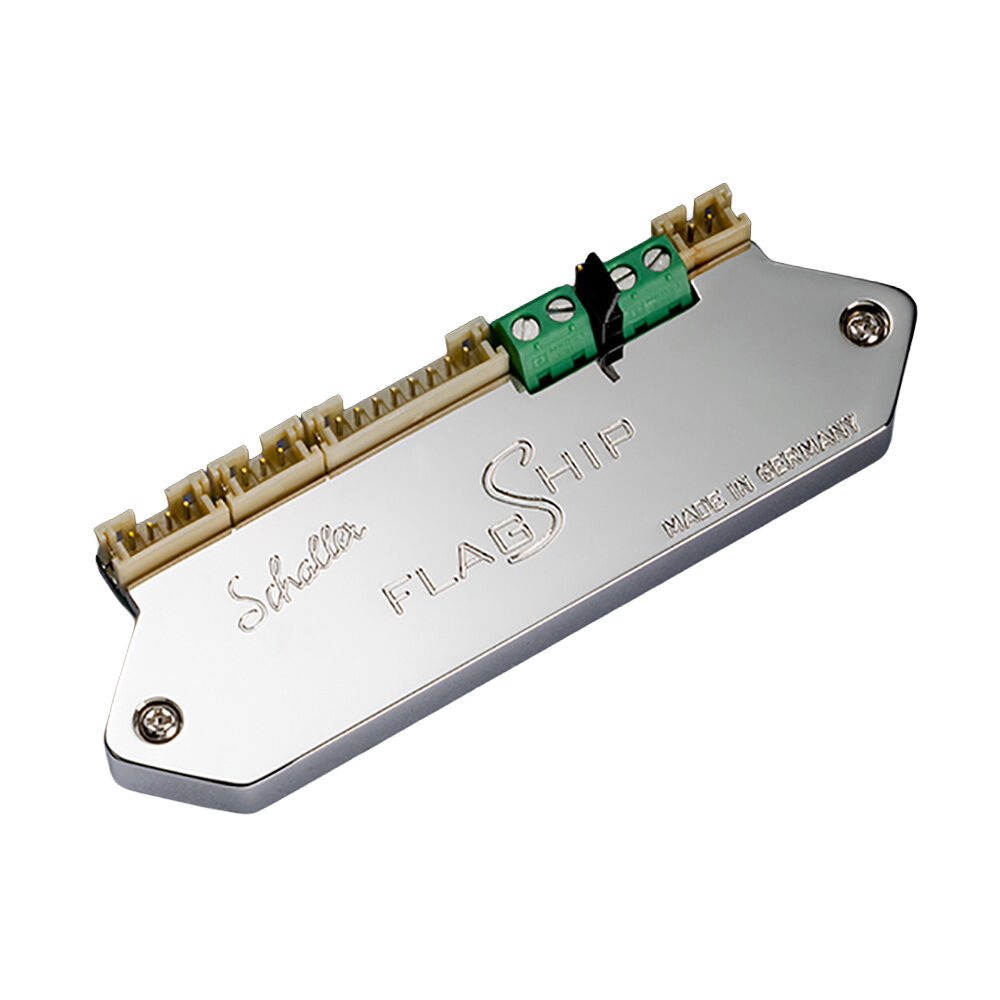

Schaller Flagship Piezo Preamp with 3-Way Rotary Switch - Nickel, 90x29x10mm, 1Hz-20kHz Bandwidth, 1000+ Hours Playtime, Plug & Play

Main Features: –          Model: Preamp Flagship (3-way) –          Model: 3-Way-Rotary-Switch –          Surface: Plain –          Colours: Nickel –          Measurements (l x w x h): 90x29x10mm –          Weight: 43 g/item A ground-breaking class-A preamp that produces clear smooth highs, soulful mids and bodacious bass combined with an impressive dynamic range of 115 dB will lead your inspiration to new levels. With a true bandwidth of 1Hz to 20 kHz at +/- 0 dB our state-of-the-art Flagship circuitry provides unprecedented signal fidelity along with exceptional operational convenience. It possesses leading-edge rail-to-rail technology which allows a single 9V alkaline battery to provide you with 1.000+ hours of play time. This Flagship preamp holds a self-sensing circuitry automatically switching in mono- or stereo-operation respectively by sensing which kind of chord you plugged in. In addition the Flagship preamp offers an ultra-silent operation with a signal-to-noise ratio of -115 dB and a noise floor of just 20 dBµV. Schaller‘s own Flagship gold contact 3-way rotary switch lets you choose from a vast variety of piezo and magnetic switching options and combinations never seen in any preamp before. (Note: The Flagship 3-way rotary switch is for controlling the preamp only. It does not replace the guitar`s 5-way lever or 3-way toggle pickup selector!) –          Suitable for all piezo pickup systems –          Plug & play –          Solder free connections 3-Way Rotary  Switching Options in Mono- and Stereo-Mode: Pos 1     piezo signal into FlagShip preamp Pos 2     magnetic pickups and piezo signal into FlagShip preamp Pos 3     magnetic pickups pure and unaltered / electric true bypass Features, specs & benefits: –          Advanced class A circuitry for sweet, transparent sound –          Compact, robust and perfectly shielded –          Attractive and protective casing with see-through window –          Original Schaller gold contact 3-way rotary switch for outstanding signal flow and switching options –          Stereo/mono self-sensing and –adjusting circuitry (no extra switch required) –          Rail-to-rail energy efficiency technology –          Reverse polarity and static discharge circuit protection –          Automatic power shut-off when cable is disconnected –          Plug-in contacts for easy solder-free installation –          1.000+ hours of playtime on a single 9V alkaline battery –          True 1Hz – 20kHz bandwidth at +/-0 dB –          Ultra-quiet -115 dB signal-to-noise ratio –          Input impedance: 3 mega ohms magnetic / 1 mega ohm piezo –          Output impedance: 5 kilo ohms –          All parts and components 100% made in Germany –          Comes complete with preamp, 5-way lever, mono-/stereo-jack, Schaller control potentiometer (22K-Ohm), wiring and plugs –          Weight in grams: 49 –          Size in mm: 89 x 24 x 7 Volume piezo bridge and passive pickup with variable adjustment. Supplied with a stereo jack socket. This allows the piezo and pickup signal to be separated using a stereo splitter y-cable and then connected to two different amps or channels. Caution: When a connection is made to pickups that are already live, the output signal increases automatically! A 9 volt battery can be used as a general power supply. Please note that piezo bridges are not earthed. A comprehensive instruction and installation guide with additional detailed information and illustrations are available to download on the Schaller website under products/product help/flagship .
