Roland TM-1 Trigger Module

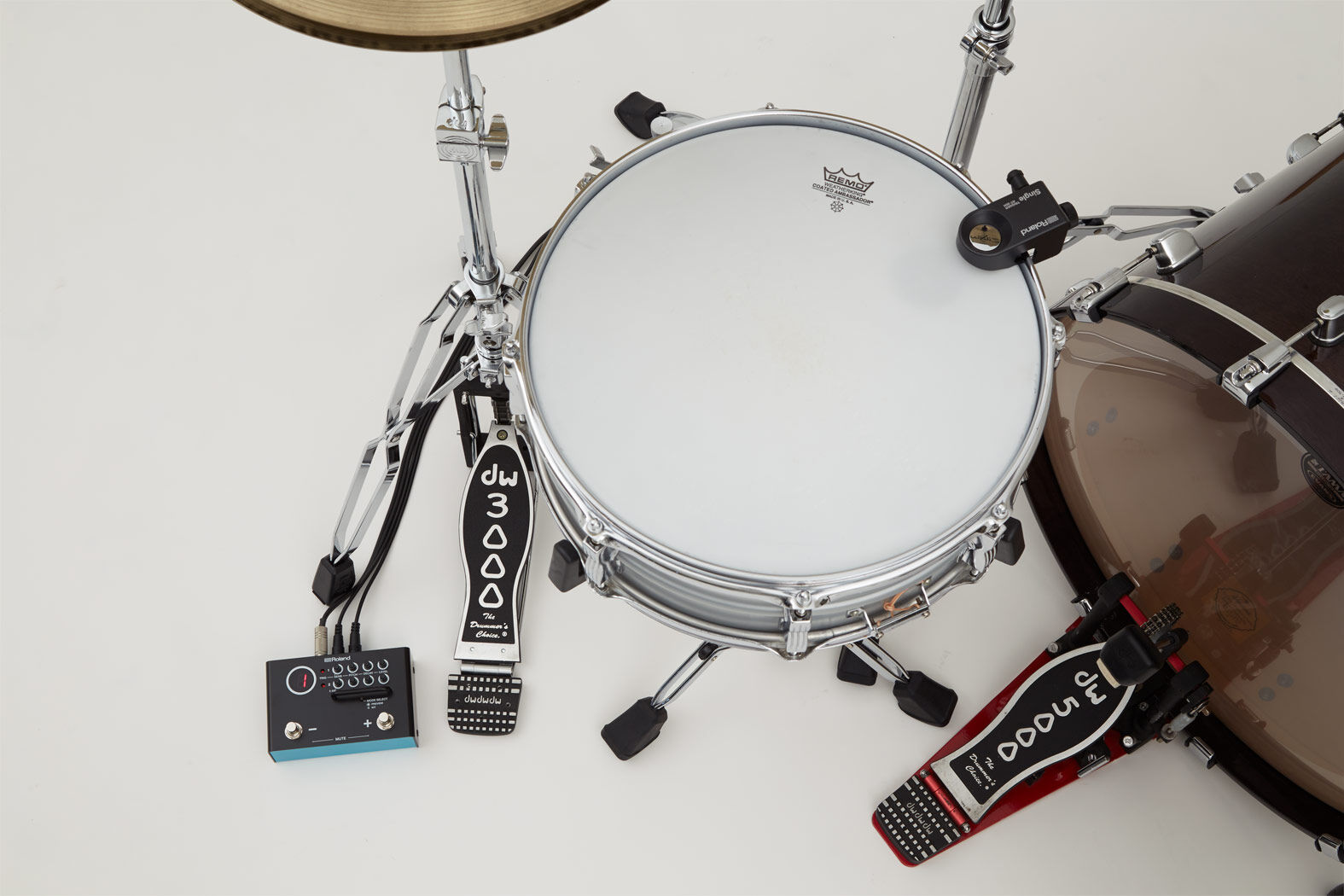

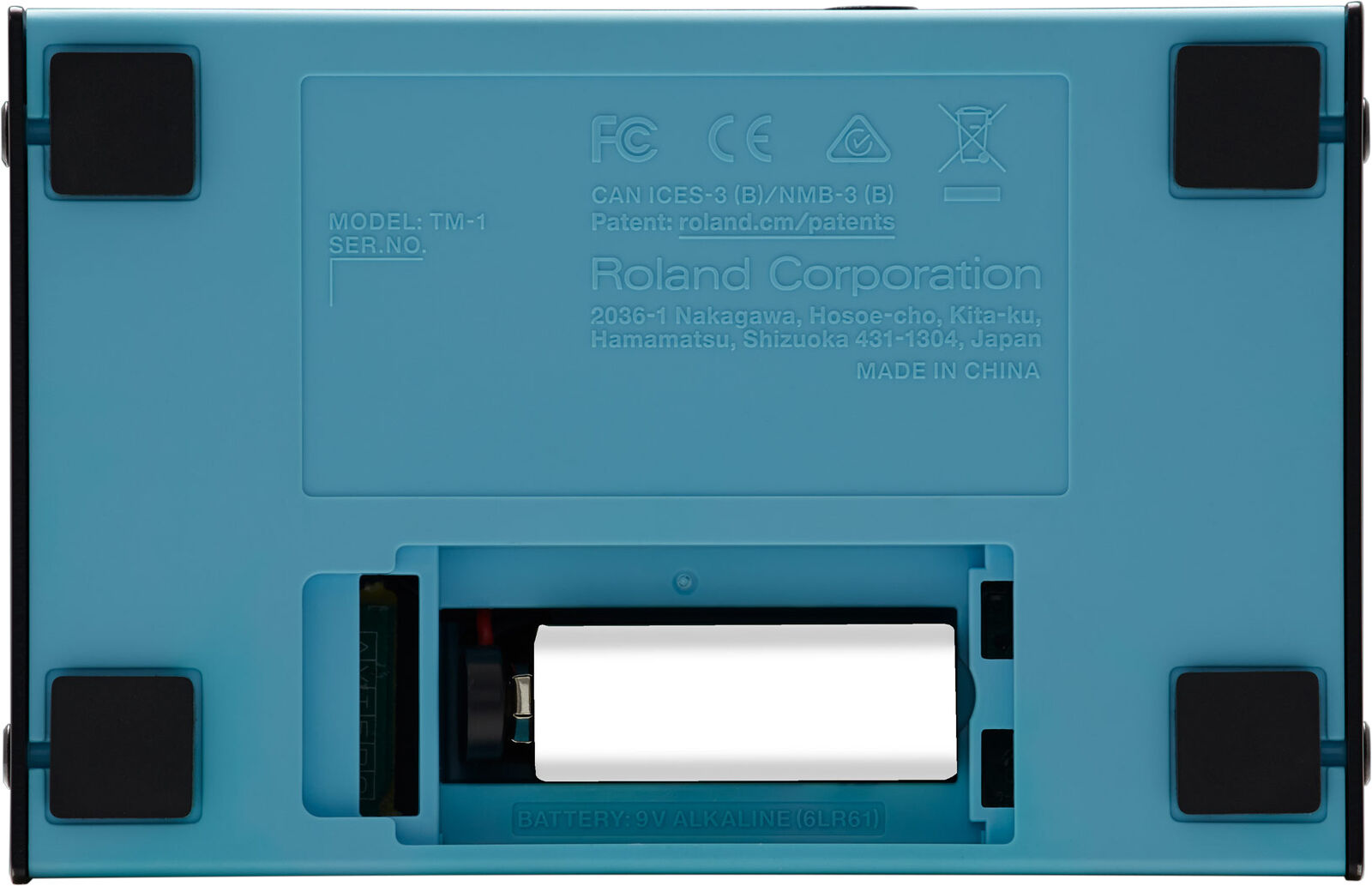

Product Information: HYBRID DRUMMING BEGINS HERE No two drummers are the same, and every player has their own distinctive style. Getting a sound that you’re happy with, not to mention having the right sound for the gig, is vital. But it can be expensive and time consuming trying to find out what works. Enter the TM-1—a unique trigger module that makes it easy to add more sounds to your acoustic drum kit. And those sounds can be anything you like, from the TM-1’s onboard kick, snare, tom, cymbal, and percussion samples to your own samples and loops. Just connect any compatible Roland trigger pad to the TM-1 and directly play the sounds you need, or mount an RT-series trigger to one of your acoustic drums and play with your preferred sample layered on top in perfect sync, with no lag whatsoever. Getting your own custom sounds into the TM-1 is a breeze, thanks to the free editor app for Mac/Windows and iOS/Android.* Simply connect the TM-1 to your device, open the app, import samples from your library, and tweak the settings as needed. When it comes to performing on stage, the battery- or mains-powered TM-1 can be easily controlled with your foot via built-in switches. It’s even possible to mute the hybrid sound with a foot press, letting you go all-acoustic in the verses before bringing in some extra hybrid power for the chorus. Every working drummer can benefit from a hybrid setup these days, and the TM-1 is the easiest and most affordable place to start. Ultra-Portable and Built for the Road The TM-1’s compact size lets you take it wherever you want, and the stompbox-style design fits easily alongside your other floor-mounted gear. Better still, support for battery operation eliminates the hassle of finding AC power when you need to set up in a hurry or perform outdoors. The TM-1 is lightweight enough to throw into a bag or instrument case, and robust enough to travel thanks to its metal-body construction and rugged footswitches. Trigger-to-MIDI Conversion for Your Computer Whether you’re producing at home, working in the studio, or performing live, you sometimes need to send a MIDI signal when you hit a pad. The TM-1 performs this trigger-to-MIDI conversion simply by connecting it to a computer via USB, allowing you to trigger sounds in drum samplers and plug-in instruments, record MIDI tracks in a DAW, or control clips and other functions in performance software like Ableton Live. Specifications: Kits 15 Preloaded Sounds 30 User Sample Number of User Sample: 30 Sound Length: Approx. 6 second/Sample Data Format Mac OSX: WAV, AIFF, MP3, AAC, Apple Lossless Windows: WAV (44.1 kHz, 16/24 bits) iOS: WAV, AIFF, MP3, AAC, Apple Lossless Android: WAV (44.1 kHz, 16 bits), MP3 *The Application ‘TM-1 Editor’ is required. Display 7 segments, 1 character (LED) Controls [SENS] knob (TRIG1, TRIG2) [PITCH] knob (TRIG1, TRIG2) [DECAY] knob (TRIG1, TRIG2) [LEVEL] knob (TRIG1, TRIG2) [MODE SELECT] button [MUTE] switch [KIT SHIFT] switch [POWER] switch Indicator Trigger Indicator (TRIG1, TRIG2) Connectors TRIGGER IN jack : 1/4-inch phone type, mono OUTPUT jack : Stereo 1/4-inch phone type *When setting the Output Setting to the "MIX", The mixed sound of trigger 1 and 2 is output in mono. *When setting the Output Setting to the "INDIVIDUAL", Each trigger is output separately to left and right (TRIG1: L-Side, TRIG2: R-Side).PHONES jack: Stereo 1/4-inch phone type USB port: USB type B DC IN jack USB MIDI Power Supply Alkaline battery (9 V, 6LR61) AC adaptor (DC 9 V, sold separately) Supplied from the computer via USB port Current Draw 100 mA (DC IN) 250 mA (USB) Expected battery life under continuous use : Approx. 3 hours *It depends on the batteries' specification, capacity, and conditions of use. Accessories Owner's manual Leaflet "USING THE UNIT SAFELY" Alkaline battery (9 V, 6LR61) USB type B Cable Options (sold separately) AC adaptor (PSA-S series) Acoustic Drum Trigger (RT series) Pads (PD series, PDX series, BT-1) Cymbals (CY series) Kick (KD series) Kick pedal (KT series) Footswitch (DP series, BOSS FS-5U, FS-6, FS-7) Stereo Split Cable (PCS-31L) Personal Drum Monitor (PM series) SIZE AND WEIGHT Width 150 mm 5-15/16 inches Depth 95 mm 3-3/4 inches Height 60 mm 2-3/8 inches Weight (including batteries) 550 g 1 lb 4 oz
