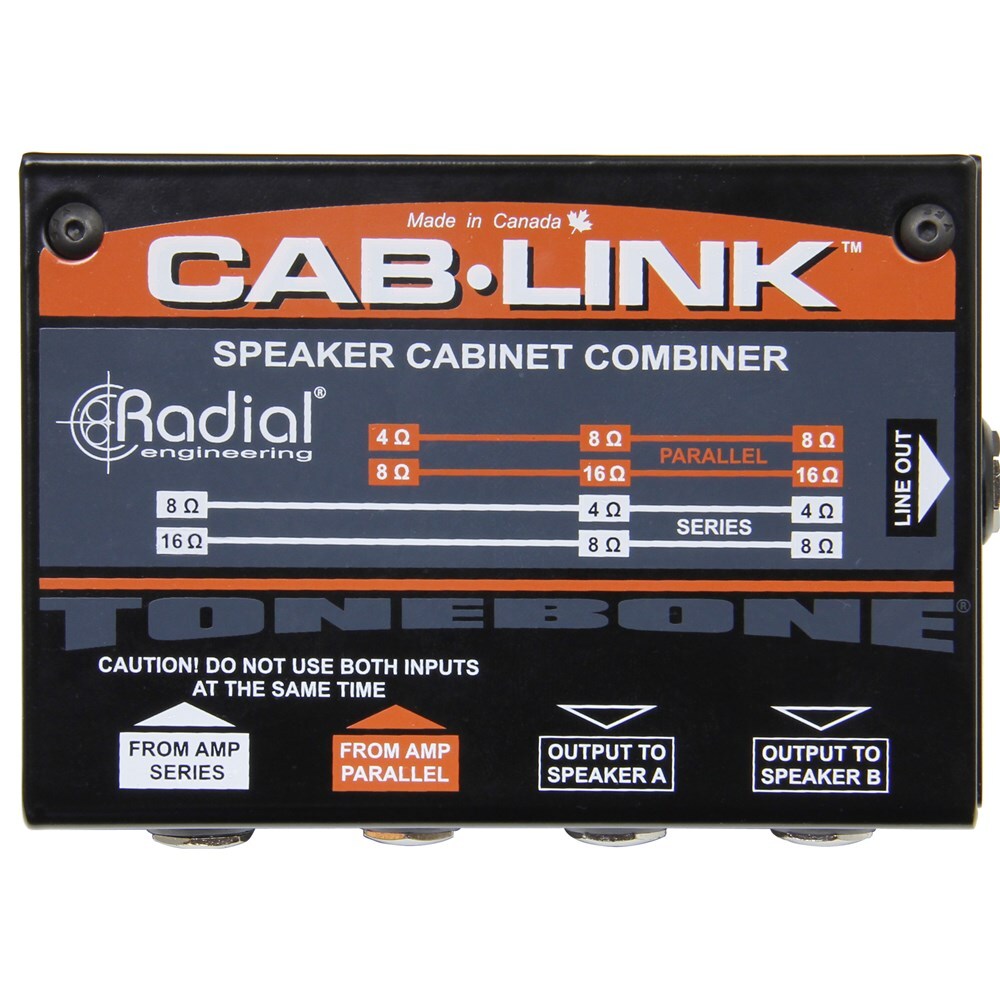

Radial CABLINK - Passive Speaker Cab merger for 2 guitar cabs

THIS PRODUCT IS FOR ONLINE ORDER ONLY. Passive Speaker Cabinet MergerThe Cab-Link provides a simple and compact solution for players who have a single speaker output on their amplifier but want to connect to two cabinets simultaneously.PhotosConnect one amplifier output to two speaker cabinetsCan use in series or parallel configurationCompact and completely passive no need for powerAdditional line output with level controlThe simple way to connect two cabinets to your ampWhether you want to wire up your cabinets in series or in a parallel configuration the Cab-Link makes things easy. Simply connect two speaker cables from the Cab-Link outputs to each of your cabinets and a third speaker cable from the output of the amp head to either the series or the parallel input. The Cab-Link reconfigures automatically depending on which input is used and a handy guide on the top of the unit lets you know which input should be used to best match the impedance between your amp and the cabinets. A line output with a level control provides additional functionality and can be used to feed the input of another amplifier or an effects unit.Cab-Link ApplicationsCombine cabinets in parallel configurationConnect two 8 Ohm speaker cabinets in parallel and run both from a single 4 Ohm output on your amplifier.Combine cabinets in series configurationConnect two 8 Ohm speaker cabinets in series to use with a 16 Ohm amplifier output.Use the line out to feed another amplifierRun a second amplifier from the line out for a wet/dry setup. Fine tune the output with the level controlRelated ProductsHeadbone VTAmp Head SwitcherThe Headbone VT is a specially designed switching device that lets you toggle between two different tube amp heads while using a single speaker cabinet.JDX 48Amplifier Direct BoxThe JDX48 is an amplifier DI box which connects between the amp head and a speaker cabinet capturing the tone of your amp without the need for a microphone.Twin-CityActive Amp SwitcherThe Twin-City is an active ABY switcher that toggles or combines two guitar amplifiers in phase and without noise with a class-A input buffer to drive both amps without any loss of gain.Cab-Link ResourcesPart no: R800 7088 00
