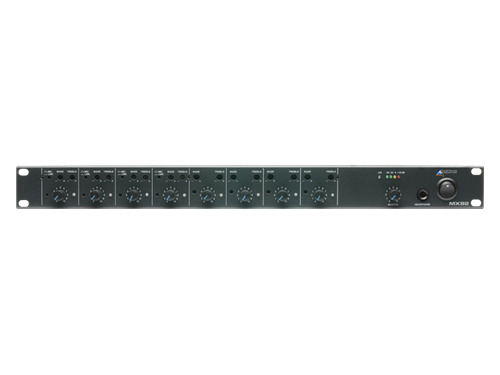

Mixer 8In 2Out MX82 Australian Monitor

THIS PRODUCT IS FOR ONLINE ORDER ONLY. MX828 Channel Stereo Mixer4 XLR 4 RCA inputsThe MX82 is a 1RU stereo mixer that features four mic/line inputs and four stereo inputs.Each of the four mic/line channels consists of a balanced XLR input switchable between mic and line level 15dB of gain trim across the mic/line inputs plus individually switchable phantom power (15VDC). The first 4 channels also feature a line level direct output which can be used to feed additional amplifiers mixers or recording devices.An internal dip switch allows the first 4 inputs to be routed to the direct output the master outputs or both. You can also feed the optional tone generator (AMTONE1) to the direct outs if required. Input 1 can also be pre or post master if you require allowing it to be used as a priority (or emergency) input. Inputs 5-8 are four dedicated stereo RCA aux/line level inputs.4 XLR inputs switchable between microphone and line level each with direct output€š 4 stereo dual RCA line level inputs. Each input has front panel microphone/line switching (inputs1-4) treble and bass control +/-15dB of gain trim and dual colour status LED indication€š Single master volume control€š Phantom power individually switchable for XLR inputs€š Priority muting via optional muting modules (AMMUTE1 or AMMUTE3). 2 required.€š Remote Volume Controlled Attenutation (VCA) via optional module (AMVCA). 2 required.€š Tone generation via optional module (AMTONE1)SpecificationsTotal Inputs: 8Frequency Response: 20Hz - 20kHzInput Channels: 8 MIC or LineTHD+N: 90dBMounting: 1RUInput Sensitivity MIC: 4.36mV / Line: 775mV / RCA: 200mVWarranty: 5 yearsInput Voltage: 230Vac 50HzProduct Dimensions:(W x D x H) 482mm x 182mm x 44mm Shipping Dimensions(W x D x H) 500mm x 267mm x 94mmNet Weight: 2.8 KgShipping Weight: 3.8 KgGTIN EAN: 9323383011106
