Irt1 Small Area Ir Emitter IRT1 Williams AV

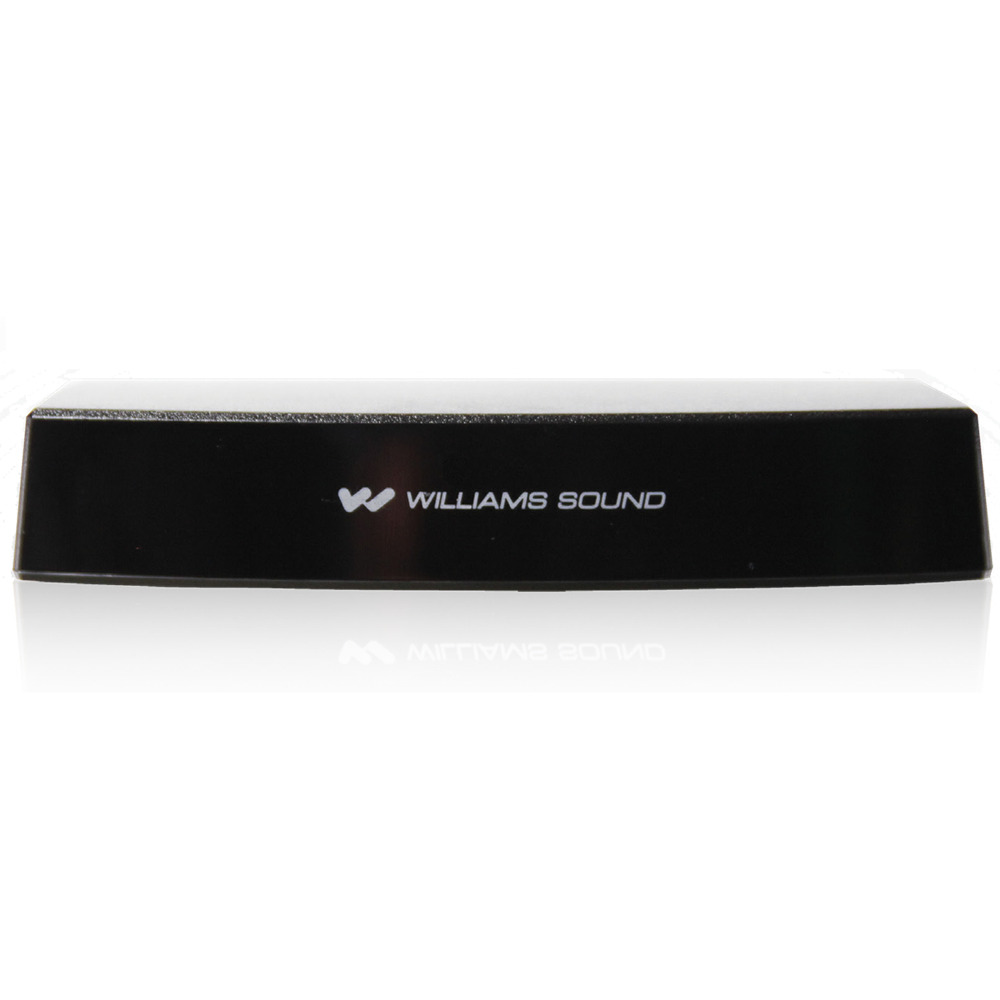

THIS PRODUCT IS FOR ONLINE ORDER ONLY. IR T1SMALL AREA INFRARED TRANSMITTERBuilding on years of infrared expertise Williams Sound is pleased to introduce the new IR T1 small-area infrared emitter. Its sleek compact footprint is ideal as an assistive listening system for small areas or for private TV listening in such areas as small conference rooms hospital rooms assisted living facilities medical treatment centers and jury deliberation rooms. The T1 is so energy efficient it can be powered from a standard USB port on a TV. Provides a coverage area of up to 1300 square feet. System includes(1) IR T1 small area infrared transmitter(1) TFP 055 power supply(1) WCA 055 6' 3.5 mm male-to-male stereo audio cable(1) WCA 106 - 6' USB micro cable (USB 2.0 to USB micro)(1) WCA 124 - adapter cable (3.5mm F to RCA)featuresCommercial-quality designHigh-efficiency LEDs display power status and audio inputTripod mount or optional flat panel TV mounting bracketPower with A/C power supply or USB (from TV)Plug-and-play install with 3.5MM audio input 1- or 2-channel operation (2.3 and 2.8)specificationsir t1Dimensions: Width: 5.65(14.4 cm) Depth: 3.65(9.3 cm) Height: 1.15(2.9 cm)Weight: 8.3 oz (235 g)Color: BlackPower Supply:TFP 055 100-240VAC 50/60Hz Input; 5VDC 1A USB Output Universal Supply with international adapters Other USB Power Supply (must be at least 5VDC 0.2A)Power Cable: USB to micro USB cableDC Power Input: Micro USB connector 5VDC 0.2APower Indicator: Green LEDSleep/Power Save Mode: Shuts off carrier when no audio present for 12 minutesModulation: FM Wideband ±50 kHz deviation max 50 ÃŽ¼S pre-emphasisCarrier Frequencies: 2.3MHz (Ch 1) and 2.8MHz (Ch 2) Default at power on = carriers off. Carriers are automatically enabled upon presence of audio.Coverage Area: 1000 sq. ft (96 sq. m.)Audio Inputs: 3.5mm stereo line level input jack Ch 1 connected to tip Ch 2 connected to ring GND connected to sleeveAudio Indicators: One Yellow LED per channel lights up and stays on steady with minimum audio level. Signal-to-Noise Ratio: 70 dB at onset of limitingFrequency Response: 100 - 12000 HzOperating Requirements: 32°-122°F (0-50°C)Mounting Kit:Optional: STD 008 TV Top Shelf Mounting KitOptional: BKT 024 Omnidirectional mount for wall or ceiling mountingCompatible Receivers: WIR RX22-4 WIR RX18Warranty: 2 yearsApprovals/Regulatory Compliance: CE RCM FCC Industry Canada PSE CUL WEEE RoHS CB Scheme
