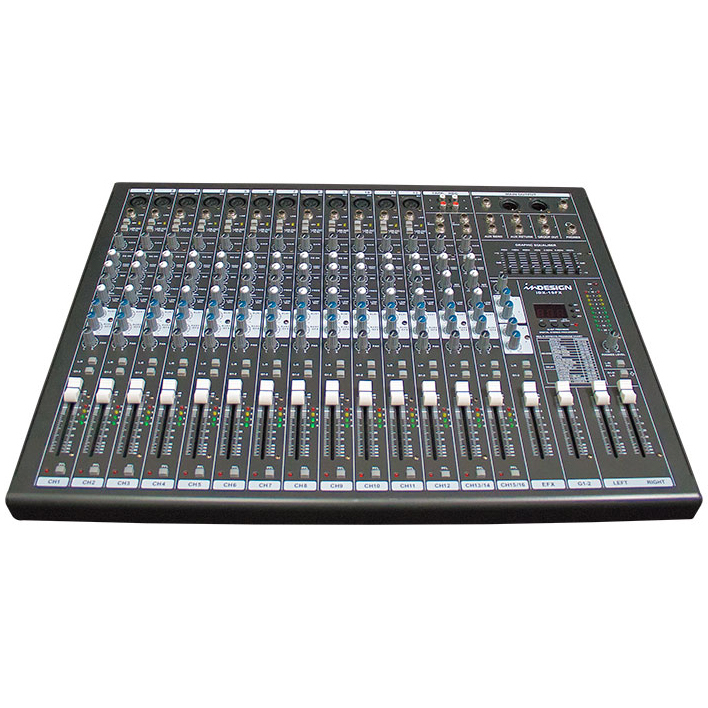

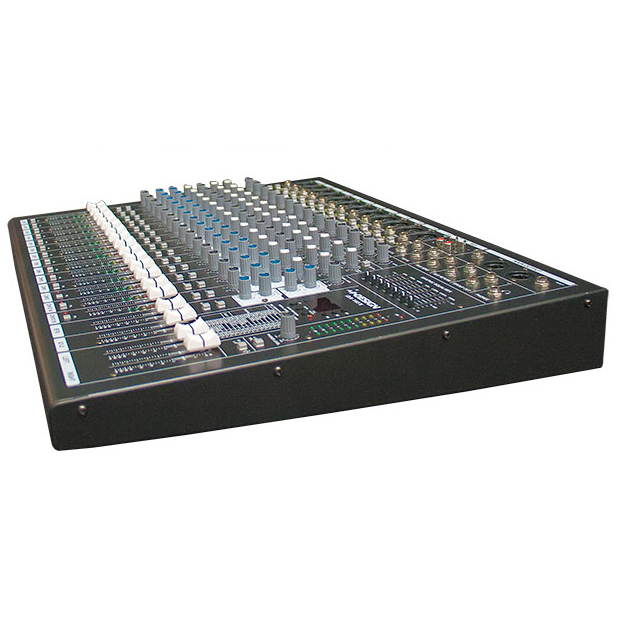

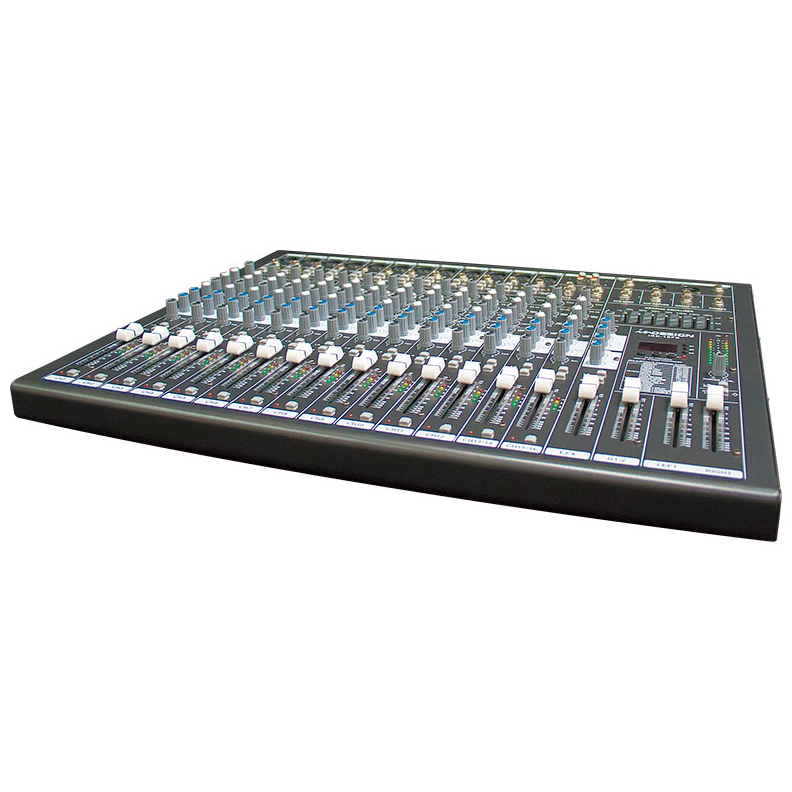

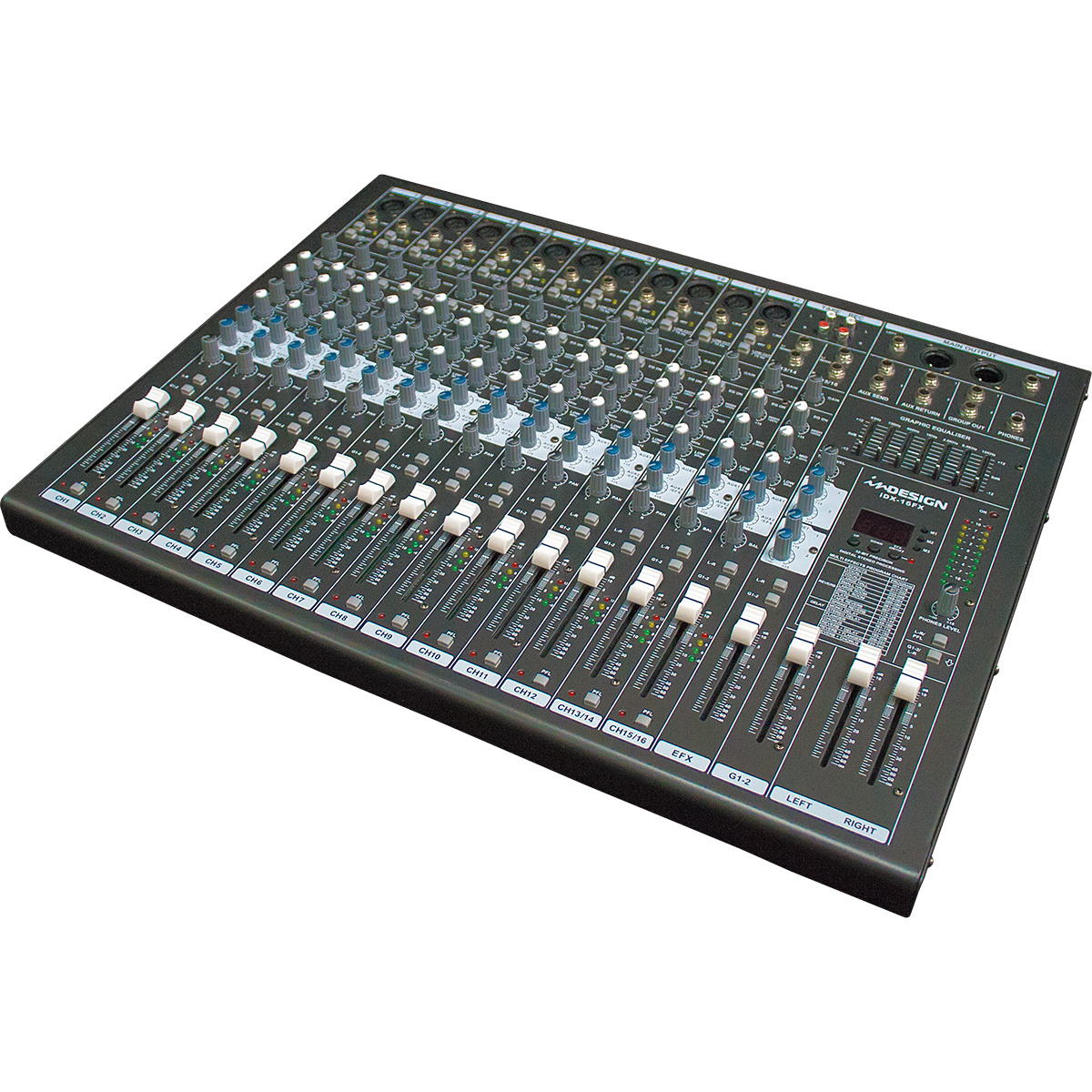

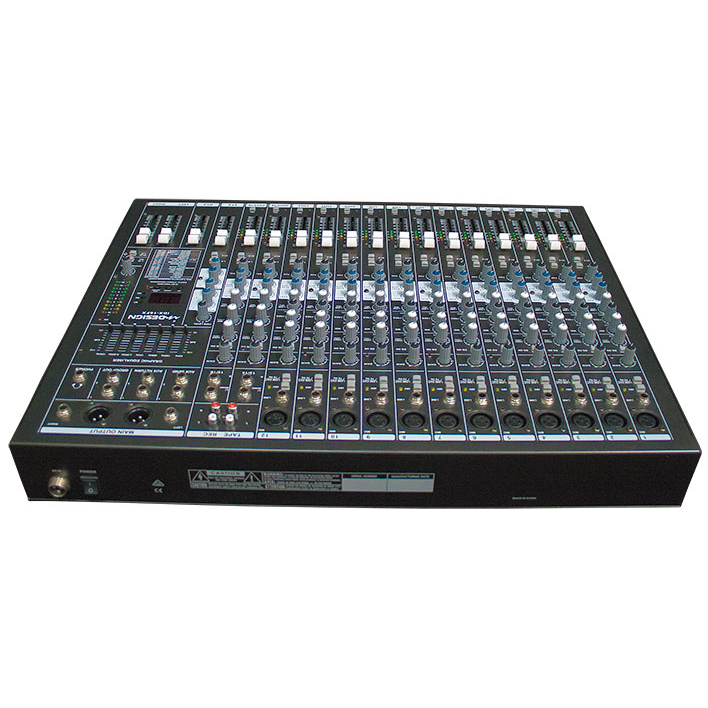

inDesign IDX-16FX 16-Channel Mixing Console

Product 16 Channel Mixing Console with Effects 12 mono input channels with silver plated XLRs and balanced line inputs. Ultra-low noise discrete mic preamps with +48 V phantom power 2 stereo input channels with balanced TRS jacks Balanced inputs for highest signal integrity Ultra-musical 3-band EQ and FREQ control on all mono channels and 3-band on all stereo channels. 4 LEDs on all mono and stereo channels 2 aux sends per channel for external effects and monitoring Built in digital multi effects (32 bit 256DSP) Separate stereo master output, 2 group outputs, monitor output and headphone outputs Highly accurate 2 x 10 segment bargraph meters Rugged design power supply ensures superior signal integrity Specifications MONO INPUTS Mic Input:Electronically balanced, discrete input configuration Bandwidth:10 Hz to 60 kHz andplusmn; 3 dB Distortion (THD andamp; N):0.01% at +4 dBu, 1 kHz, Bandwidth 80 kHz Mic E.I.N (22 Hz - 22 kHz):-129.5 dBu, 150 Ohm source-117.3 dBqp, 150 Ohm source-132.0 dBu, input shorted-122.0 dBqp, input shorted TRIM Range:+10dB to +60dB Line Input:Electronically balanced Bandwidth:10 Hz to 60 kHz andplusmn; 3 dB Distortion (THD andamp; N):0.01% at +4 dBu, 1 kHz, Bandwidth 80 kHz Line Level Range:+10 dBu to -40 dBu Equalisation:Hi Shelving: 12 kHz +/-15 dBMid Range: 2.5 kHz +/-15 dBLo Shelving: 80 Hz +/-15 dB STEREO INPUTS Line Input:Unbalanced Bandwidth:10 Hz to 55 kHz andplusmn;3 dB Distortion (THD andamp; N):0.01% at +4 dBu, 1 kHz, bandwidth 80 kHz Equalisation:Hi Shelving: 12 kHz +/-15 dBMid Bell: 100Hz -8KHz +/- 15dB, Q fixed at 1 octLo Shelving: 80 Hz +/-15 dB, Q fixed 2 octLo Cut (High Pass) Filter: -3dB at 75Hz, 18dB / oct MASTER MIX SECTION Max Output: +22 dBu balanced Aux Send Max Out: +22 dBu unbalanced Control Room Out: +22 dBu unbalanced Signal-To-Noise Ratio: 112 dB, all channels at Unity Gain POWER SUPPLY Mains Voltages:USA/Canada: ~ 115 V AC, 60 HzUK/Australia: ~ 240 V AC, 50 HzChina: ~ 220 V AC, 50 HzGermany: ~ 230 V AC, 50Hz PHYSICAL W ; 560mm D ; 440mm H ; 70mm (Rear) * Disclaimer:Instructions and specifications are correct at time of printing. Information within may be subject to change without notice.
