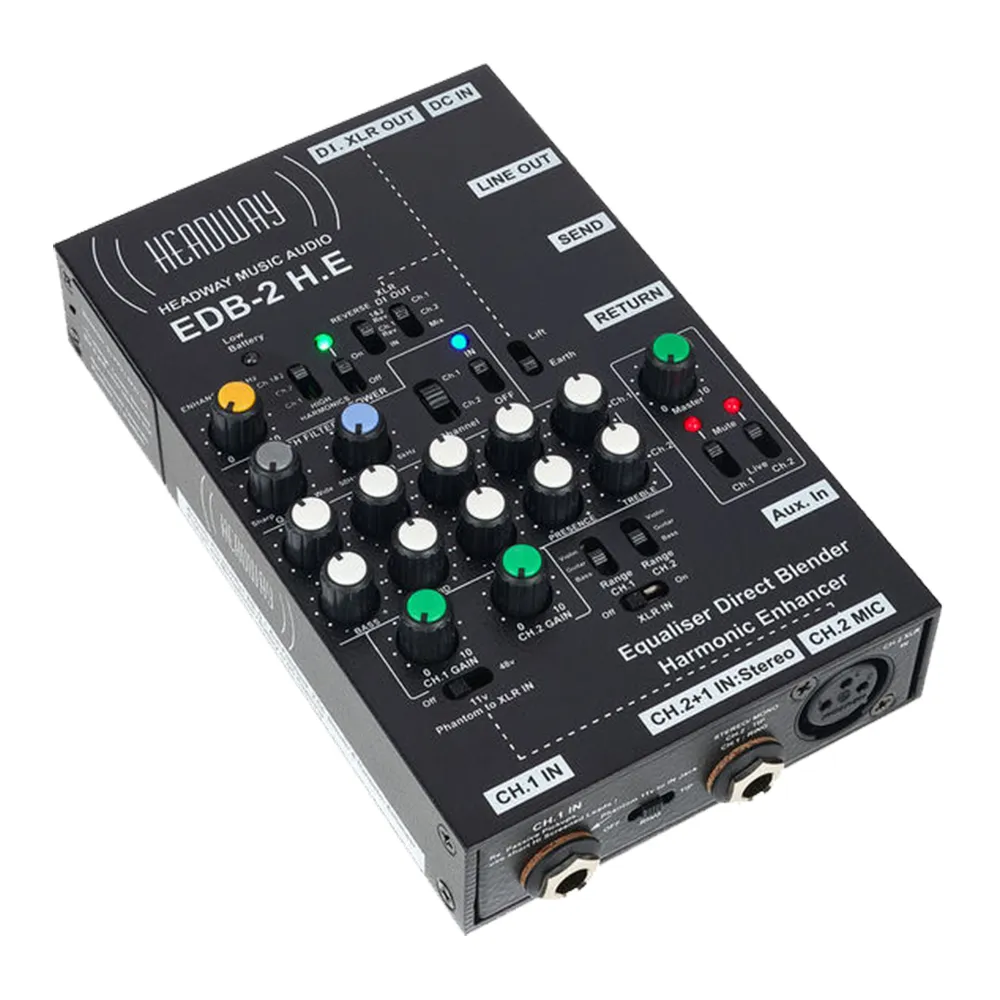

Headway EDB-2 H.E. Pro Acoustic Preamp and Blender

Serious equipment for serious musicians made simple. The Headway EDB-2 H.E. Pro Acoustic Preamp is a high-quality, dual-channel preamp, blender, and DI box for all acoustic string instruments. It is designed to process the complex signals of instruments amplified with pickups or microphones, providing Class ‘A’ amplification and a suite of powerful anti-feedback and EQ tools. The EDB-2 H.E. can function as a miniature mixing desk for singer-songwriters or duos, allowing two independent sound sources to be optimized and blended into a professional-grade output signal. Highlights: 2-Channel Preamp and Blender for mixing two sources (e.g., pickup and mic). Two independent 5-Band Interactive EQs. Tuneable Notch Filter for superior feedback elimination. Switchable Input Impedance (up to >20 MOhm) for universal pickup compatibility. 48V and 11V Phantom Power for microphones and active pickups. Balanced XLR DI Out with Earth Lift. Includes H.E.A.T. (Harmonic Enhanced Analogue Technology). Features: Type: Acoustic Instrument Preamplifier, Blender, and DI Box Channels: 2 (CH1: 1/4″ Jack; CH2: 1/4″ Jack / XLR Combo) Gain: Up to +32 dB of clean Class ‘A’ gain EQ: Two sets of 5-Band Interactive EQ, assignable per channel (Treble, Presence, High Mid, Low Mid, Bass) Notch Filter: Tuneable from 50 Hz to 6 kHz (Fixed -12 dB cut) Range Switch (HPF): 3-position High-Pass Filter with settings optimized for Bass (41 Hz), Guitar (85 Hz), and Violin (192 Hz) Input Impedance: Switchable (+Hi >20 MOhm, Hi 5 MOhm, Active/Low 1 MOhm) Phantom Power: 48V (XLR) and 11V (Jack) Outputs: 1/4″ Line Out and Balanced XLR D.I. Out (Pre/Post EQ switchable) Effects Loop: 1/4″ Send & Return Other Controls: Phase Reverse (per channel), Earth Lift, Aux Input (3.5 mm mini-jack)
