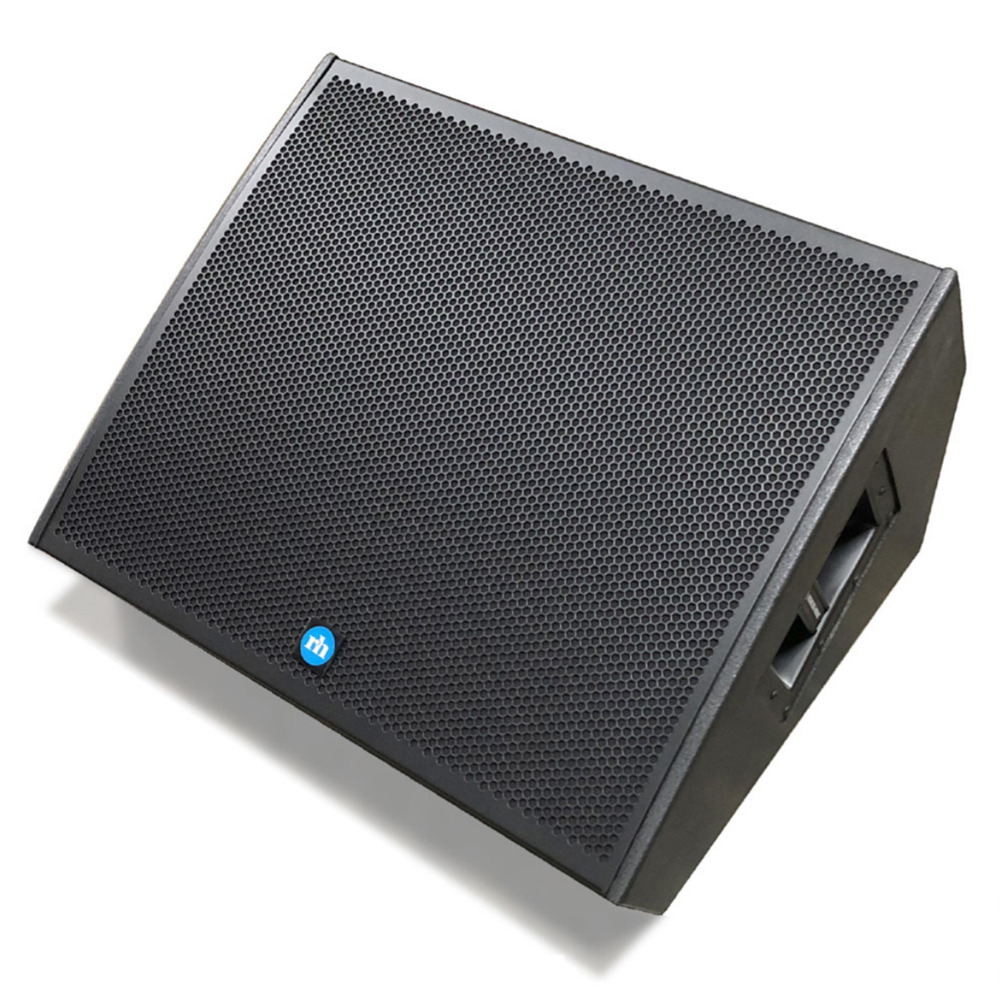

Foldback 2X10 Power Dsp P3-10M-RN Renkus Heinz

THIS PRODUCT IS FOR ONLINE ORDER ONLY. P3-10MThe P3-10M was developed specifically high output stage monitoring in the most demanding environments and is also ideal for DJ Monitoring when stacked on top of additional subwoofers. The baffle angle is also ideal for surface mount side-fill or surround sound applications.With standard RHAON remote PC control as well as amplifier panel controls a whole host of DSP features are available for system tuning and alignment including gain polarity equalization delay input selection and 10 available presets for easy recall of saved settings.Available Dante Audio Transport with redundant networking capabilities simplifies installation into existing networked audio systems while also providing AES67 compatibility.Technical DataFrequency Response: 60 Hz. to 20 kHz. (+ or - 3 dB)Sensitivity: 1.0 volt for rated output analogMaximum Peak SPL: 133 dB-SPL@1 watt/1 meterDispersion: 90 h x 90 vCrossover Frequency: 480 Hz & 2.5 kHz active electronicEnclosure: 3/4 in./19 mm Lite Ply plywoodGrille: 16 GA powder coated plated steelFinish: Black (RAL9010) or White (RAL9011) paint standard. Custom colors optional.Weight: 68.4 lbs/31 kgDimensions: 648 mm w x 386 mm h x 560 mm dSA1250 Amplifier SpecificationsAudio Connections: All Models 2 x XLR-3 In & Loop-out Analog and AESMax Input Level: All Models +22 dBu Analog 0 dBFS digitalNetwork Connections: All Models 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)All Models 2 x RJ45 Looping Ethernet/RHAONUser DSP: All Models Eight fully parametric filters high and low shelf high and low pass filters delay to 340 ms. Software: All Models RHAON IIPower Output: All Models LF= 1000 watts @ 8 oms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on both channels protects the drivers.Mains Voltage: All Models 100-240 volts 50/60 Hz auto-switchingPower Consumption: All Models Idle: 200 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)Power Connector: All Models Neutrik powerCON TRUE-1Temperature Limits: All Models Max.: 140º F/60º C with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.Latency: All Models 6.25 msAll Models 6.25 ms Analog & AES6.25 ms + Dante transport latency
