Eikon Personal Monitor Headphone Amplifier EMPAMP4

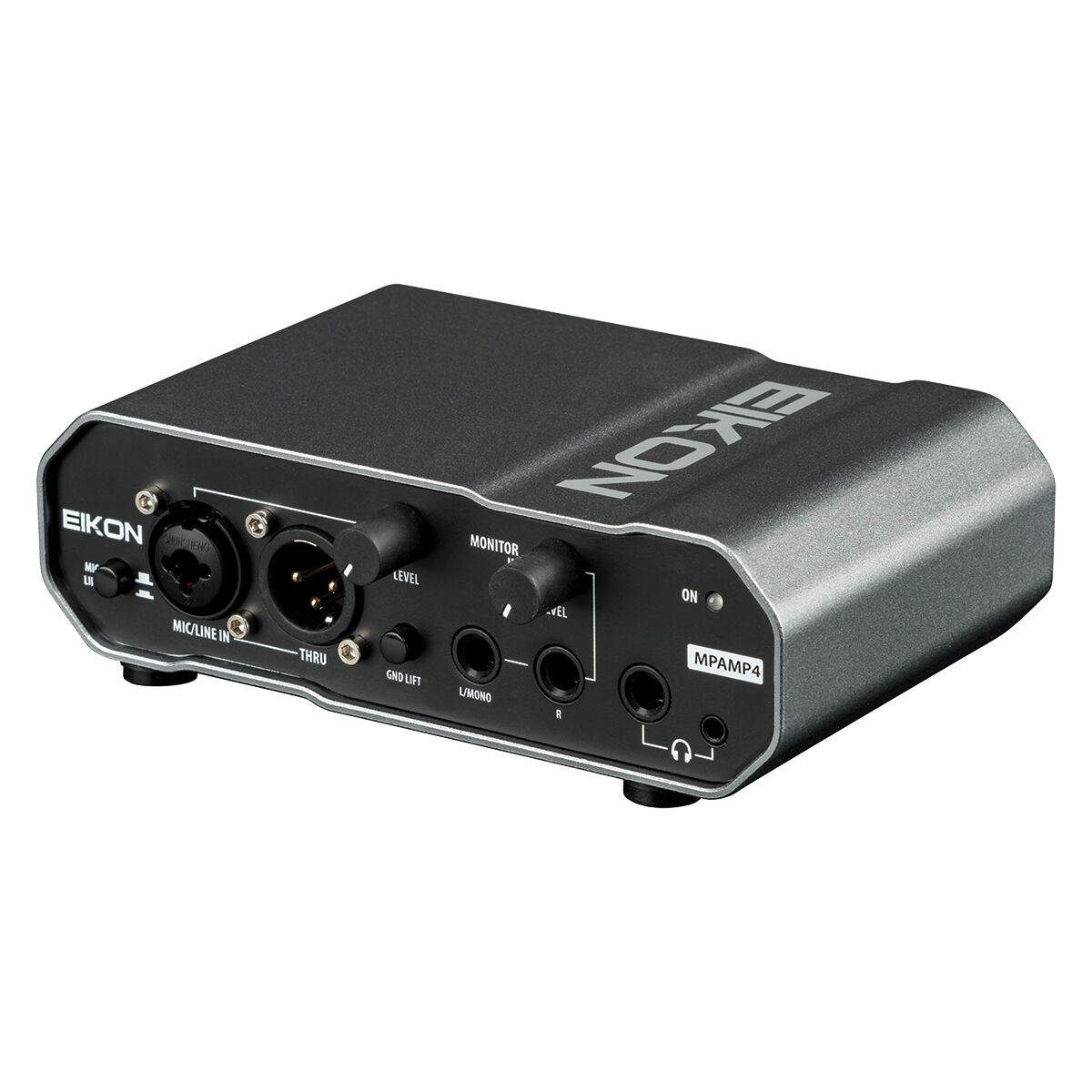

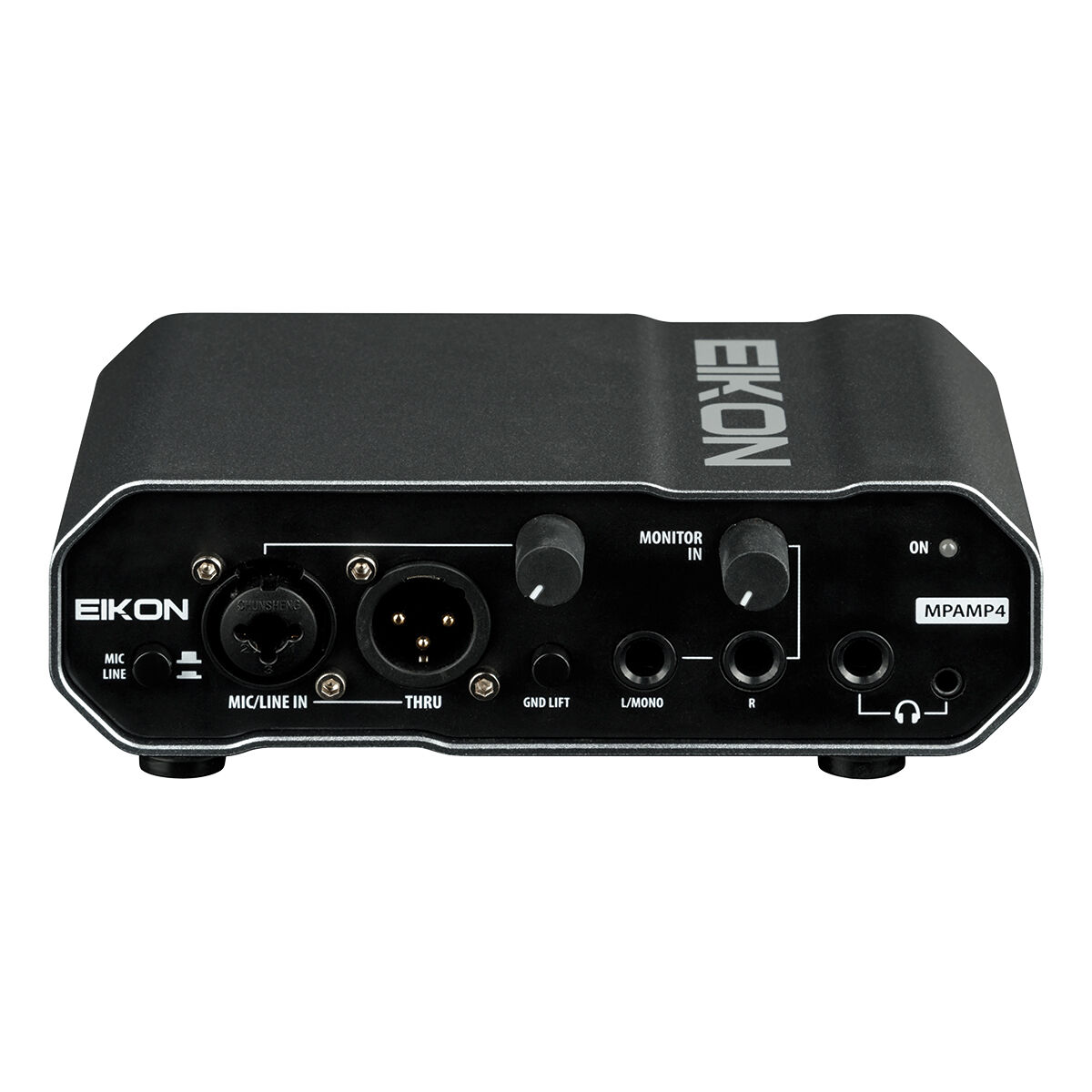

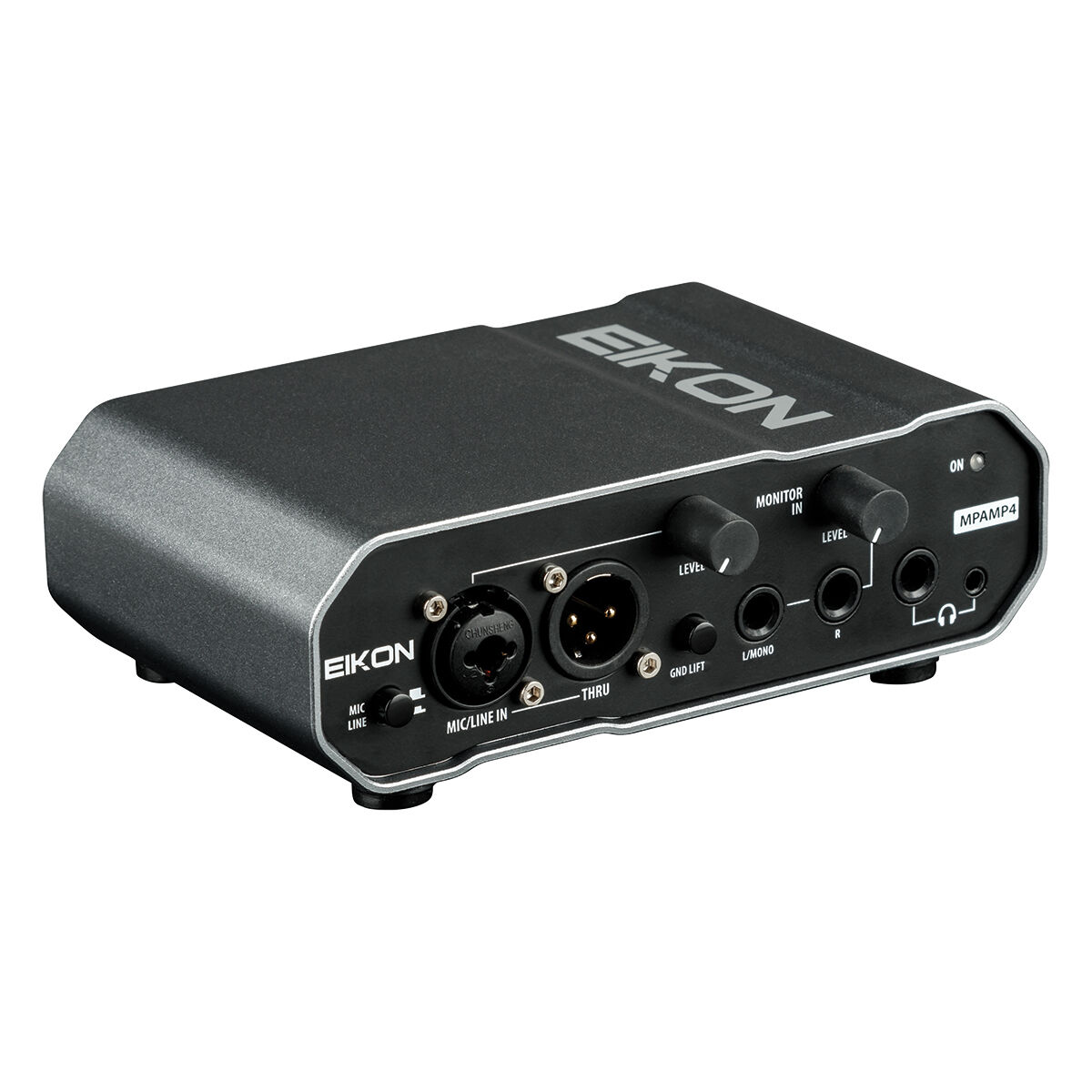

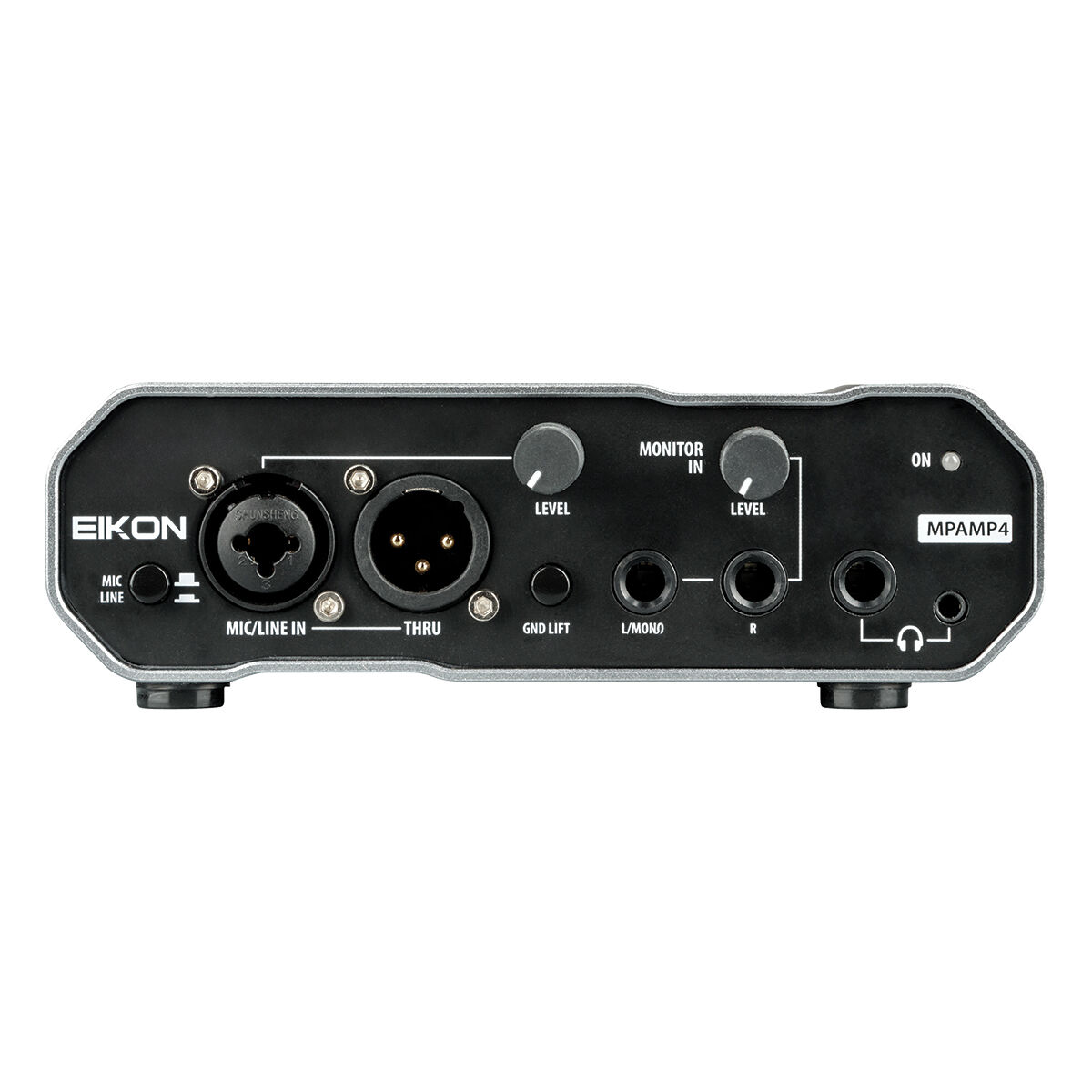

Eikon Personal Monitor Headphone Amplifier The MPAMP4 compact headphones amplifier features a pass-through MIC/LINE input and a STEREO/MONO monitor input with individual level controls. It is very useful in recording studios or on stages when you need to mix and listen to two sound sources together. This headphones amplifier is designed for use with all types of in-ear or over-ear headphones and therefore offers maximum flexibility for personal monitoring. It is typically used to combine your voice or instrument with other members of the band during a live concert or to listen to pre-recorded tracks during recording, allowing for customized mixing of the monitor signal. The THRU connection allows you to directly feed your voice or instrument to other live or recording equipment. INPUT SECTION Connectors 1 x COMBO, 2x 1/4" JACK unbalanced Inputs 1x MIC/LINE 1x MONITOR (stereo/mono) Input Impedance 10 Kohm (LINE/MONITOR), 1 Kohm (MIC) Max Input Level +20 dBu (MONITOR), +10 dBu (LINE), -15 dBu (MIC) OUTPUT SECTION Connectors 1x XLR-M, 1x 1/4" or 1/8" JACK stereo Outputs 1x MIC/LINE THRU, 1x HEADPHONES stereo Max output 32ohm 2x 100mW Max output 600ohm 2x 100mW Load Impedance min 16 ohm Max Gain +8 dB (MONITOR), +14dB (LINE), +35dB (MIC) SYSTEM PERFORMANCE Distortion (THD) 0.02% Noise < -98 dBu unweighted Frequency Response < 20 Hz - 20 KHz (-3dB) POWER SUPPLY Connector USB Type B AC/DC Adapter Input 100-240V ~ (±10%) 50/60Hz AC/DC Adapter Output 5V-1A (5W) Supplied Cable 1.2m USB Type A - Type B GENERAL Controls MIC/LINE LEVEL, MONITOR LEVEL, MIC/LINE SELECTOR, GND LIFT Indicators Power ON Dimensions (WxHxD) 160 x 52 x 106mm Weight 0.52kg (main w/out cable) Download User Manual Here
