Eikon EKJJA Guitar Wireless System UHF 512 – 541.7 MHZ

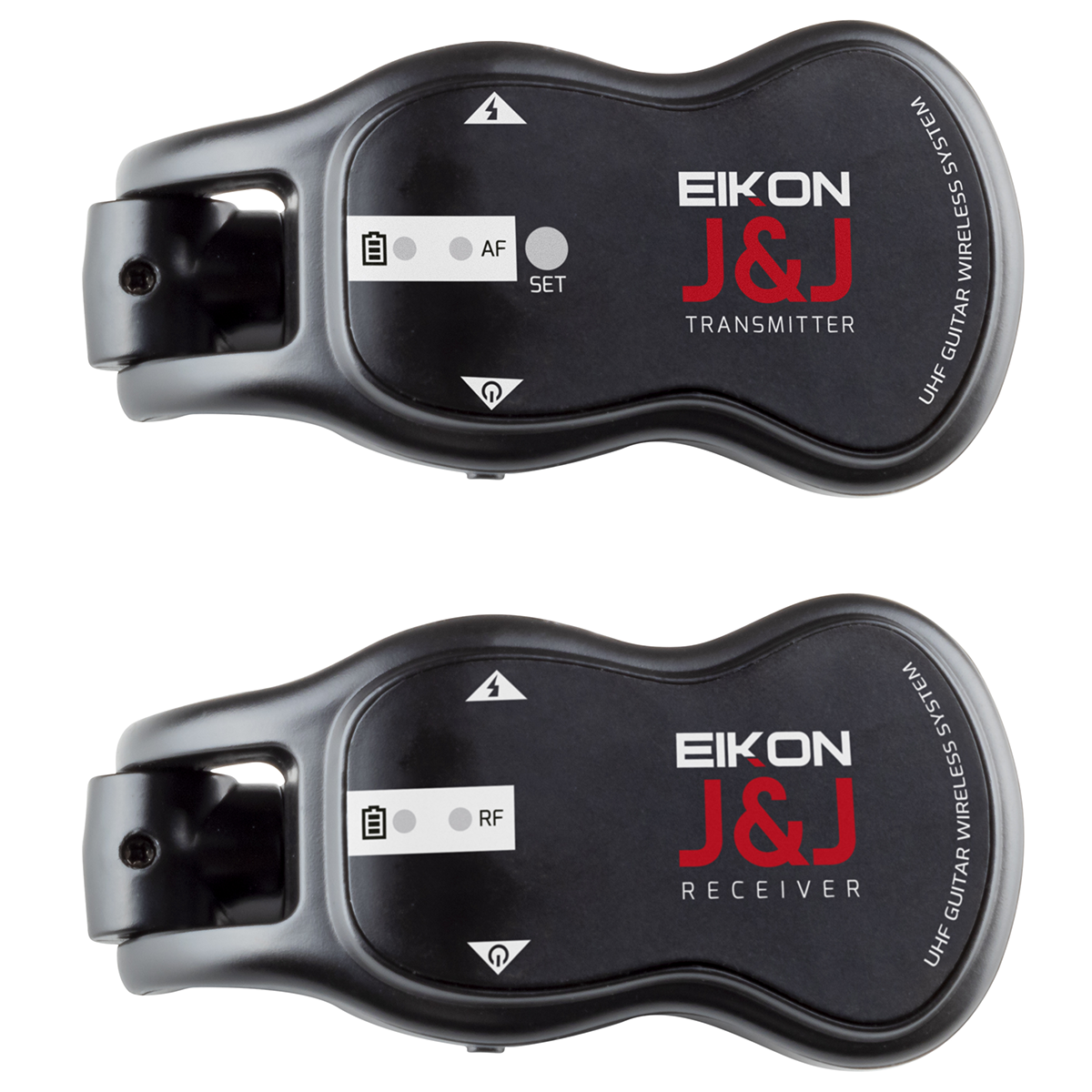

EKJJA UHF 512 – 541.7MHZ GUITAR WIRELESS SYSTEM TheEKJJis aUHF quartz lockedcontrolled Wireless Guitar System providing a reliable and high quality signal transmission. EKJJ features 3 units: EKJJ compact“connector sized”transmitter, EKJJ compact “connector sized” receiver andUSB to USB-Ccharging cable. 50 channelsfrequencies are available, allowing the possibility to use the device with other wireless equipment. UHF512 – 541,7 MHz frequency band Quartzlockedmodulationmode Up to30metersrange Builtin 3.7V/500mAlithiumbattery 5V USBchargingcableincluded Up to4 hoursautonomy Up to6 systemsusablein thesamelocation Download manual HERE TECHNICAL SPECIFICATIONS EKJJA - UHF PLL 50 Channel Transmitter RF Channels 50 frequency presets RF Frequency Band UHF: 512 - 541.7 MHz RF Frequency Stability ±0.002% RF Oscillation Mode Quartz locked RF Modulation Type Wideband FM Stereo RF Output Power 10mW Sub-harmonic 40 dB Operating current 120 mA Operating Time 3 to 5 hours Operating Power Supply 3.7 V / 500mA - built-in Lithium battery Charging mode USB charging 5V - type C connector Charging time 3 hours Weight 0.05 Kg EKJJA - UHF PLL 16 Channel Receiver RF Channels 50 frequency presets RF Frequency Band UHF: 512 - 541.7 MHz RF Frequency Stability ±0.005% RF Oscillation Mode Quartz locked RF Modulation Type Wideband FM Stereo RF Receiving Sensitivity -98 dBm RF Receiving range 15 to 30 metres depending on used band conditions Audio Dynamic Range 106 dBm THD Distortion 0.5% S/N Ratio 102dBA Audio output connector 6.3 mm Mono Jack Output Power Max (continuous) 400 mW Operating current 80 mA Operating Time 5 hours Operating Power Supply 3.7 V / 500mA - built-in Lithium battery Charging mode USB charging 5V - type C connector Charging time 3 hours Weight 0.05 Kg
