Dsp Loop Amp 2 x 10A DL210NET2.0 Williams AV

THIS PRODUCT IS FOR ONLINE ORDER ONLY.

$7,620.32
Sold Out


Calculate Shipping



Standard Shipping - $0.00
Estimated delivery in 2-6 business days
Express Shipping - $10.00 (ETA: 3 days)

Click & Collect - $0.00
You will receive an email / text message once your order is ready for collection.

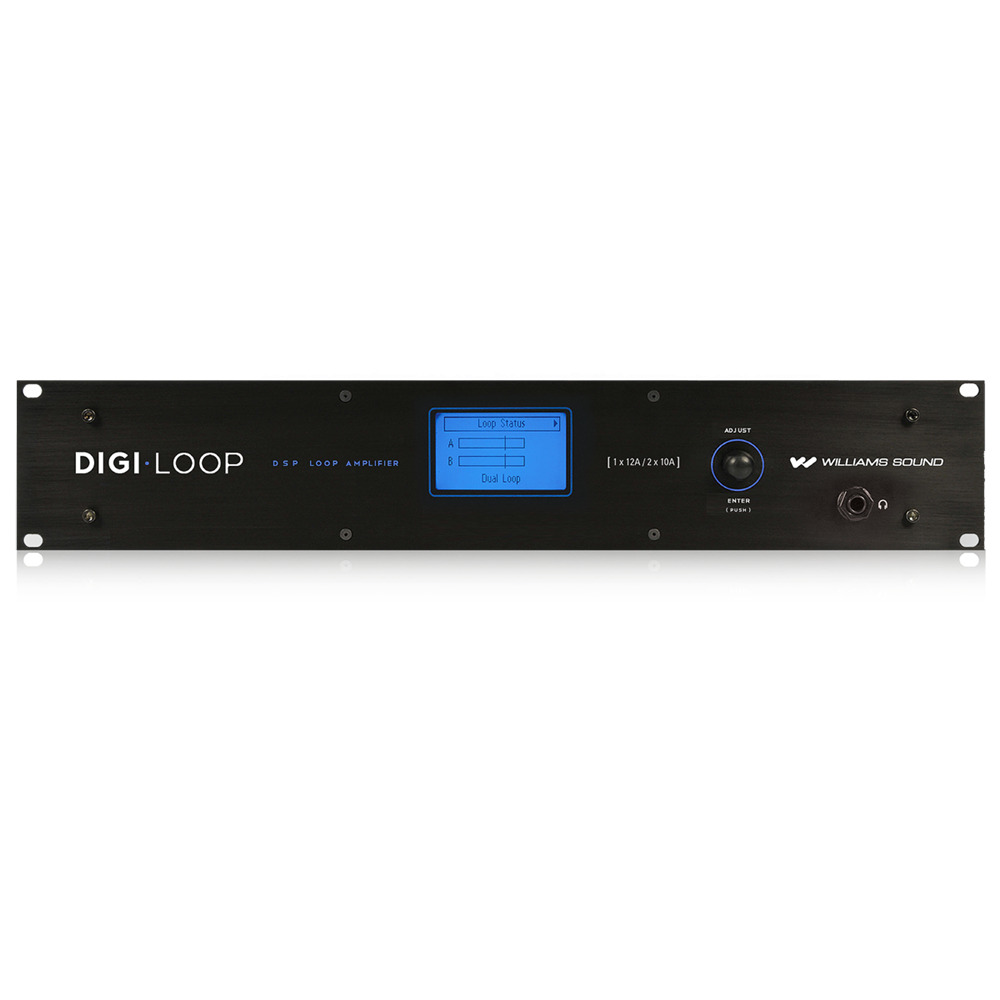

THIS PRODUCT IS FOR ONLINE ORDER ONLY. DL210 NET 2.0DIGI-LOOP DSP DUAL CHANNEL LOOP AMPLIFIER - NEXT GENERATIONDigi-Loop is definitely state-of-the-art the first of its kind to maximize modern amplifier technology. Its network-control capability provides seamless remote system set-up operation and monitoring via laptop or tablet. DSP audio processing offers flexible powerful software control of mixing equalization compression and more. Powerful Class D pulse-width amplifiers maximize efficiency. The Digi-Loop's amplifier design offers dual 12 A rms loop outputs for perimeter loop(s) single array(s) dual loop or phased-array configuration. A 70-100 V input provides connection to a distributed speaker/paging system ensuring announcements are heard by loop users. System includes(1) DL 210 NET 2.0 DSP induction loop amplifier(1) WLC 004 Line Cord (US)(1) IDP 009 ADA Wall Plaque (T-Coil)FeaturesNetwork control - allows control and calibration of unit remotely with application softwareHigh continuous current 12 Arms (17 Apk) per output continuousLCD Screen with VU metering easy one-button menu controlDSP Audio ProcessingUSB for firmware updatesInput mixing parametric equalization compression metal compensation high and low-pass filters AGC and audio delayPower-save modeAdjustable output delay for multiple amps in large venuesFault warning and active protection against shorted or open circuits and overheatingLoop fault relay outputXLR and 3-position terminal block input configurable as microphone input or line-input balanced or unbalanced. Standard 2 RU 19 rackmountMagnetic signal couples directly to devices equipped with telecoils (T-coils) such as hearing aids cochlear implants or optional loop receivers. Suitable for phased-array or dual-loop systems.Phased-array mode automatically produces 90° phase shift in slave loop outputMeets IEC Specification 60118-4 (when designed and commissioned properly)Tested to IEC Specifications 62489-1 Benchmark StandardsMeets ADA / ADAAG guidelines. Specificationsdl210 net 2.0 architectural and engineering specificationsThe loop amplifier shall have a RJ-45 ethernet jack to provide configuration capability over an ethernet (10 base T) network.It shall have an RJ-45 Dante ethernet jack*.It shall have a USB jack to provide firmware upgrades to the amplifier using a computer.It shall have two MIC/LINE LEVEL 3-pole terminal block inputs balanced or single-ended with 48 V phantom supply in microphone mode.It shall have a configurable PRIORITY INPUT function.It shall have a 70-100 V 2-pole terminal block input to provide a high/speaker-level input connection for use with distributed speaker systems.It shall have an internal frequency generator for calibration providing 100 Hz 500 Hz 1 kHz 2.5 kHz and 5 kHz tones and Pink Noise.It shall have two LINE OUTPUTS balanced or single-ended to provide loop-through connections for line level signals going to other equipment such as recording devices or additional loop amplifiers.It shall have a 1/4 Headphone jack on front panel for monitoring of inputs or outputs selectable in the menu.It shall have a loop fault relay output (NCNOC) for triggering external systems when a loop fault occurs. This shall be integrated into the RS-232 DB-9 connector.It shall provide an output drive voltage of up to 33.3 Vrms 47.6 Vpk per output.It shall provide an output current of up to 12 Arms 17 Apk per output.It shall have a front control interface consisting of a backlit LCD screen and control button/dial.It shall have adjustable settings for input mixing parametric equalization compression frequency-shaping metal loss compensation high and low-pass filters AGC and audio delay.It shall display warnings for LOOP FAULT (open loop shorted loop or out of impedance range) OVER TEMP and CLIPPING. It shall have protection against loop faults and overheating (amplifier shuts down).It shall be controllable by devices such as a Windows Surface Tablet or PC with PC App software installed.It shall be compatible with either US or international power systems with the appropriate power cord.Performance shall meet IEC 60118-4 system performance requirements when loop system is designed and installed correctly. Specifications/testing shall conform to IEC 62489-1 benchmark testing standardsThe loop amplifier shall be the Williams Sound model DL210 NET 2.0.The loop amplifier with the Dante input* shall be the Williams Sound model DL210 NET D 2.0.dl210 net 2.0GENERALDimensions: 2 RU Rackmount 19 W x 3.5 H x 12 D. Chassis is 17 W.Weight: 14.3 lbs (6.5 kg)Color: Case: Black white and blue legends on front white legends on back. LCD: Backlit Blue.Fan cooling: Variable Speed Temperature ControlledPower supply:Internal Universal 100-240 VAC 50/60 Hz 250 Watt. Fuse: 5 x 20 mm 5 A 250 V.AC power plug is IEC 320-C14.Heat output @ 120 VAC: Sleep state: 100 BTU/hr; Idle state: 146 BTU/hr; Driving two loops @ 12 A each: 1040 BTU/hrEthernet: (1x) RJ-45; 10-100 MBps.USB: (1x) standard-B. USB 1.1 2.0 or 3.0 supported.RS-232/Loop fault relay: (1x) DB-9 jack. RS-232: Pin 2=Tx Pin 3=Rx Pin 5=gnd. Loop fault relay: Pin 1=NC Pin 4=Common Pin 6=NO. Relay contact rating: 2.0 A @ 30 VDC.Environment: 0-35° C ( 32-95° F) 0-90% relative humdity.Coverage area*31400 sq. ft. (2917 sq. m.) (Perimeter Loop 1:1 aspect ratio both outputs driven)51660 sq. ft. (4800 sq. m.) (Perimeter Loop 3:1 aspect ratio both outputs driven)INPUTSDante input: No. Dante input available on DL210 NET D 2.0 model only.Mic/Line inputs: (2x) 3-position terminal block input impedance=1.5 kÃŽ© Mic 10 kÃŽ© Line. Configurable/Accepts: Mic Line -10 dBV Line +4 dBu or Line +8 dBu balanced or unbalanced. Phantom supply (48V).70-100 V input: (1x) 2-position terminal block; high/speaker-level input (accepts 25 V 70 V or 100 V) from distributed audio/paging systems.OUTPUTSLine outputs: (1x) 3-position terminal block; loop-through of Mic/Line Input 1 & Line Input 2 +4 dBu Balanced or Unbalanced. The line outputs mirror the audio of the loop output.Loop output(s): (1x) 2-position terminal block per outputAudio output delay: Adjustable from 0 to 165 msecHeadphone output: (1x) 1/4 stereo headphone jack on front of unit. Monitored input or output selectable in menu.Loop fault relay: Integrated into RS-232 DB-9 jack. Pin 1=NC Pin 4=Common and Pin 6=NO. Contact rating: 2.0 A @ 30 VDC.Loop output drive voltage: 33.3 Vrms (47.1 Vpk) continuousRated loop output current*: 12 Arms (17 Apk) per outputLoop resistance range: 0.5 ÃŽ© to 3.0 ÃŽ© (DC)Speaker output: Integrated into Loop Output A terminal block (switchable in menu). 225 Watts x 1 channel @ 4ÃŽ© 125 Watts x 1 channel @ 8ÃŽ© (Class D). Frequency response = 20 Hz-20 kHz THD=0.07%.AUDIORated load*: 0.5 ÃŽ© DC with 135 µH inductanceLoop frequency response: 45 Hz to 9.0 kHz ± 2 dB (1 kHz ref.)Rated loop THD*:

(WI-DL210NET2.0)

Model:Please see description;For Instrument:Please see description;Instrument:Please see description;Amplifier Type:Please see description;Form Factor:Please see description
SKU WI-DL210NET2.0
Brand Williams AV
