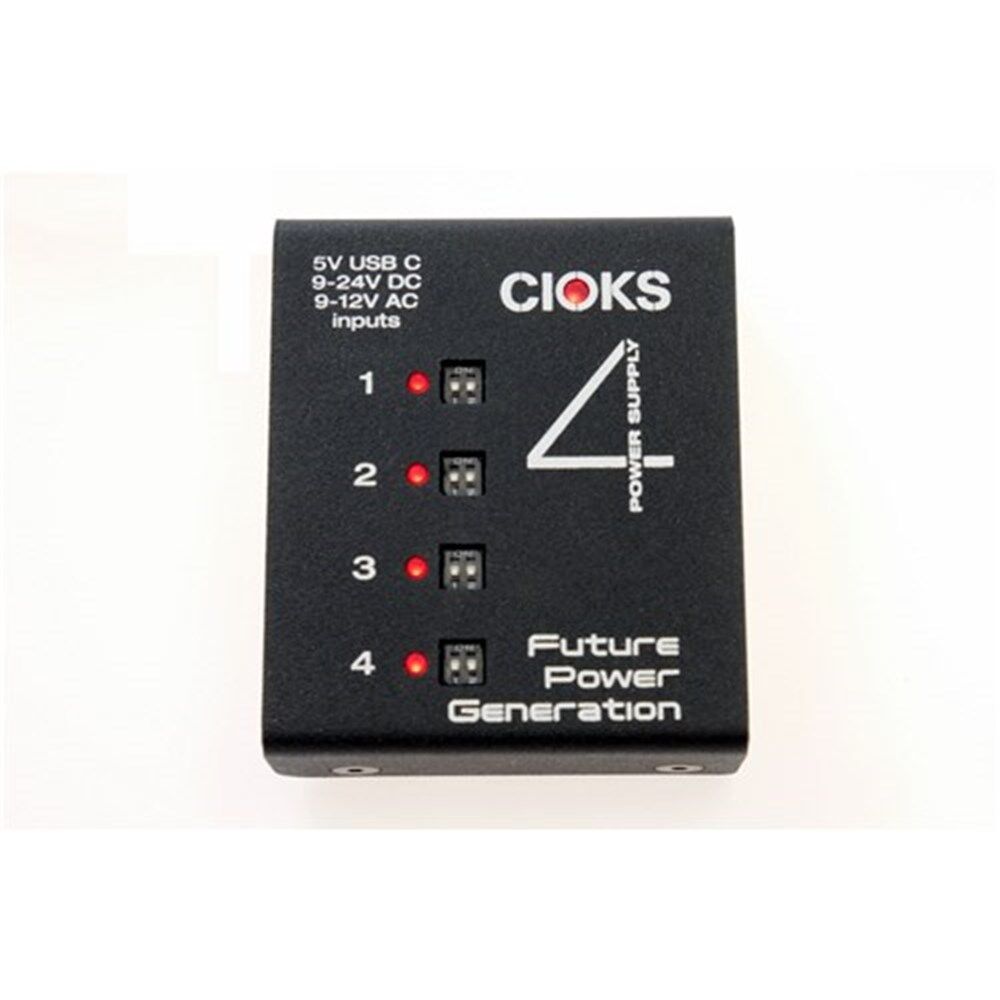

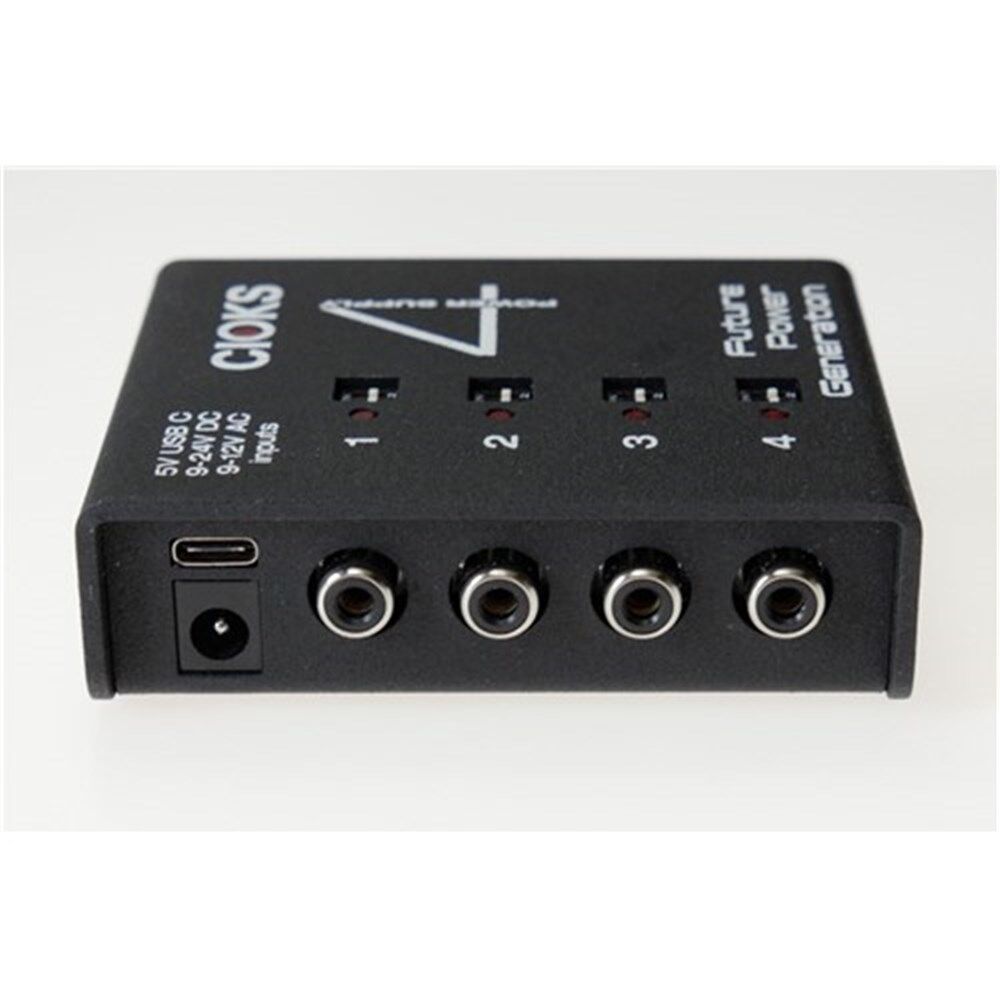

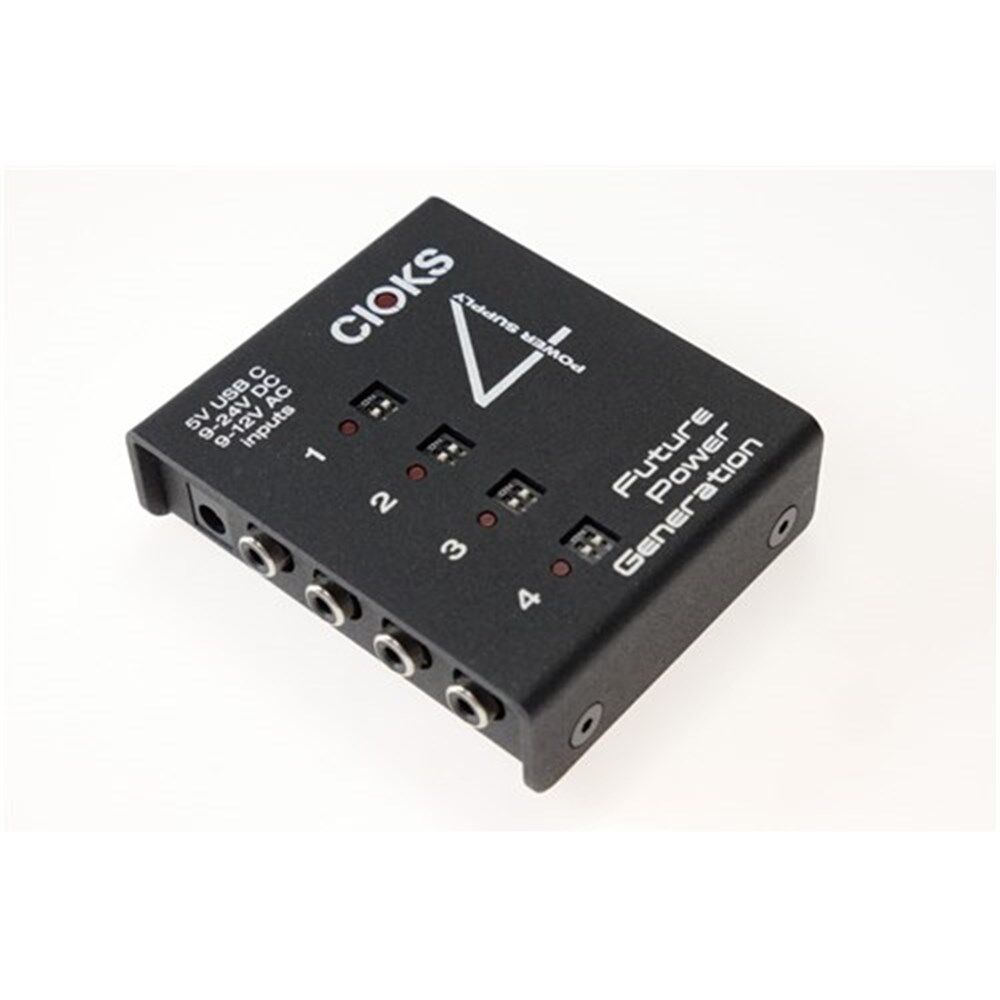

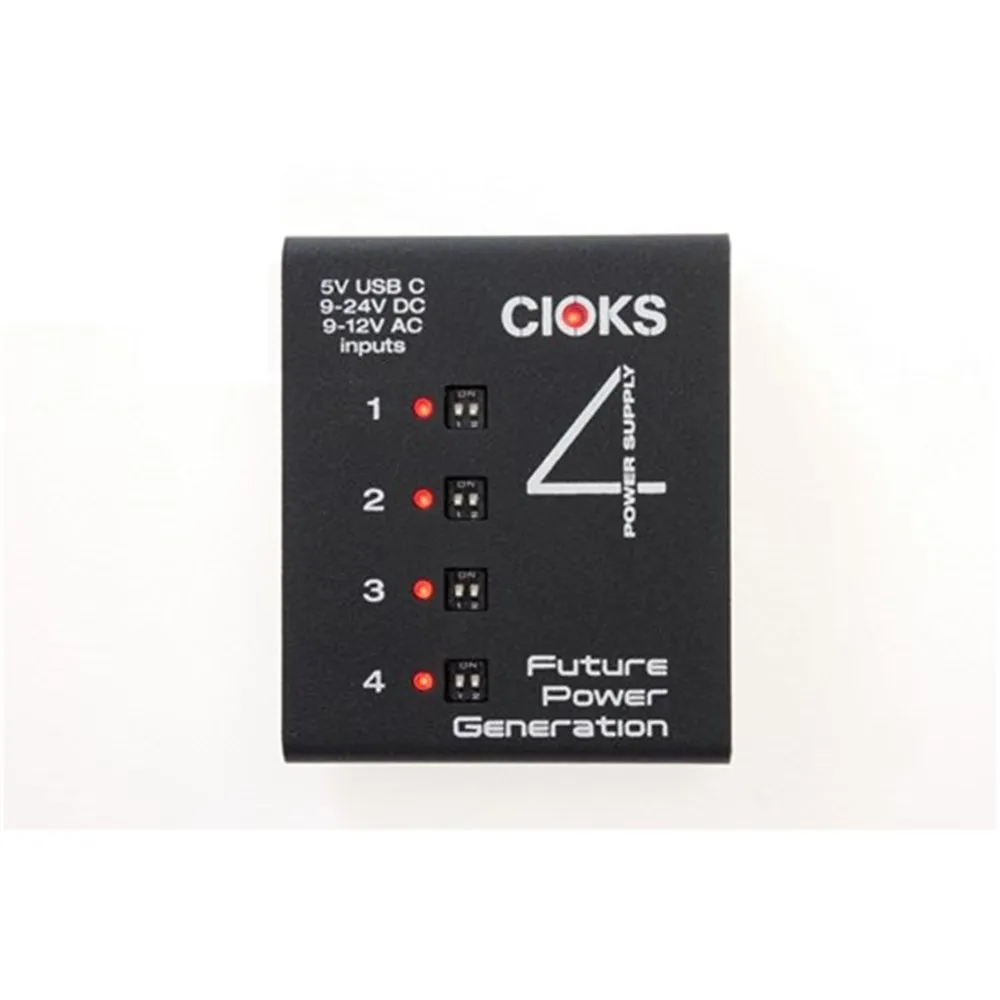

Cioks CIOKS 4 Expander Kit - 4 Isolated Outputs, 660mA at 9V DC, 5V USB C Input, Compatible with CIOKS DC7 Power Supply

CIOKS 4 Expander Power Supplies CIOKS 4 Expander is the perfect companion to CIOKS DC7 in case you would like four additional outlets with four selectable voltages on each tap (9, 12, 15 and 18V DC) which can each deliver 660mA at 9V DC. Simply connect CIOKS 4 Expander to your CIOKS DC7 via the courtesy 24V outlet and you are good to go. Description CIOKS 4 Expander is the perfect companion to CIOKS DC7 in case you would like four additional outlets with four selectable voltages on each tap (9, 12, 15 and 18V DC) which can each deliver 660mA at 9V DC. Simply connect CIOKS 4 Expander to your CIOKS DC7 via the courtesy 24V outlet and you are good to go. But that is definitely not all – what makes CIOKS 4 Expander truly unique is the fact that you can power it with anything from 9V to 24V DC or 9V to 12V AC via the non-polarized DC socket input. Furthermore CIOKS 4 can even be powered by connecting it to a USB powerbank via its 5V USB C input or by using a tablet or laptop power supply with a USB C plug. This flexibility means that you can use CIOKS 4 Expander as a stand-alone unit and power it with almost any adapter including the 1-SPOT or GigRig Generator. You can also use the 24V output on a Strymon Zuma unit to power the CIOKS 4 Expander. It can also convert an unused AC outlet on your existing power supply into 4 isolated DC outlets. Features CIOKS 4 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7 Ultra-low noise achieved by multistage filtering 4 isolated DC-outlets, 6W each 660mA at 9V DC on each outlet 4 selectable voltages on each outlet 5V USB C Input for powering the unit with a powerbank or USB C adapter Non-polarized DC input socket which accepts anything from 9-24V DC or 9-12V AC Global overload status LED Total maximum output power 24W* Mounting hardware for Pedaltrain and Templeaudio boards included Compatible with CIOKS Mini GRIP for drill-free mounting on Pedaltrain boards* 5 Flex cables included 5-year worldwide warranty *Sold separately Specifications Input 1: 5V DC (USB C socket) Input 2: 9-24V DC or 9-12V AC (non-polarized DC socket) 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each What's in the box CIOKS 4 power supply 5 Flex cables 50cm DC Link cable Mounting hardware (2 screws and a hex-key) Product sheet (drill guide) Flex guide Manual 2x 1030 – Type 1 - 5,5/2,1mm DC-plug, centre negative, L-shape, 30cm (black) 2x 1050 – Type 1 - 5,5/2,1mm DC-plug, centre negative, L-shape, 50cm (black) 1 x 1533 3-way daisy chain Flex type 1, 30+30+50cm (black) *Total output power is max. 24W provided an appropriate and sufficient input power source is applied. Full output power can be achieved when a 24V source with min. 30W of power capability is applied.
