Chiayo STAGE100M Stage-100 Lapel Wireless System

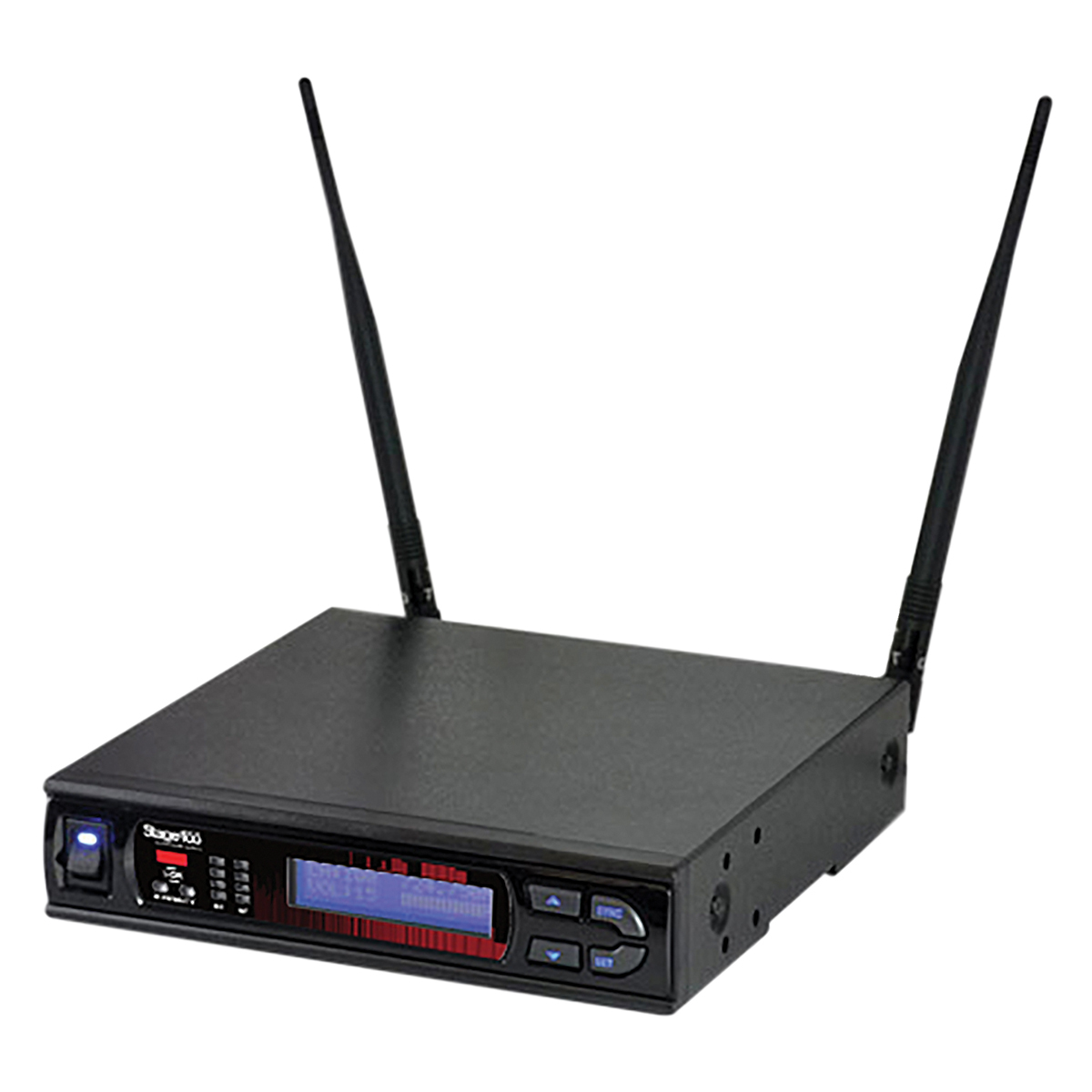

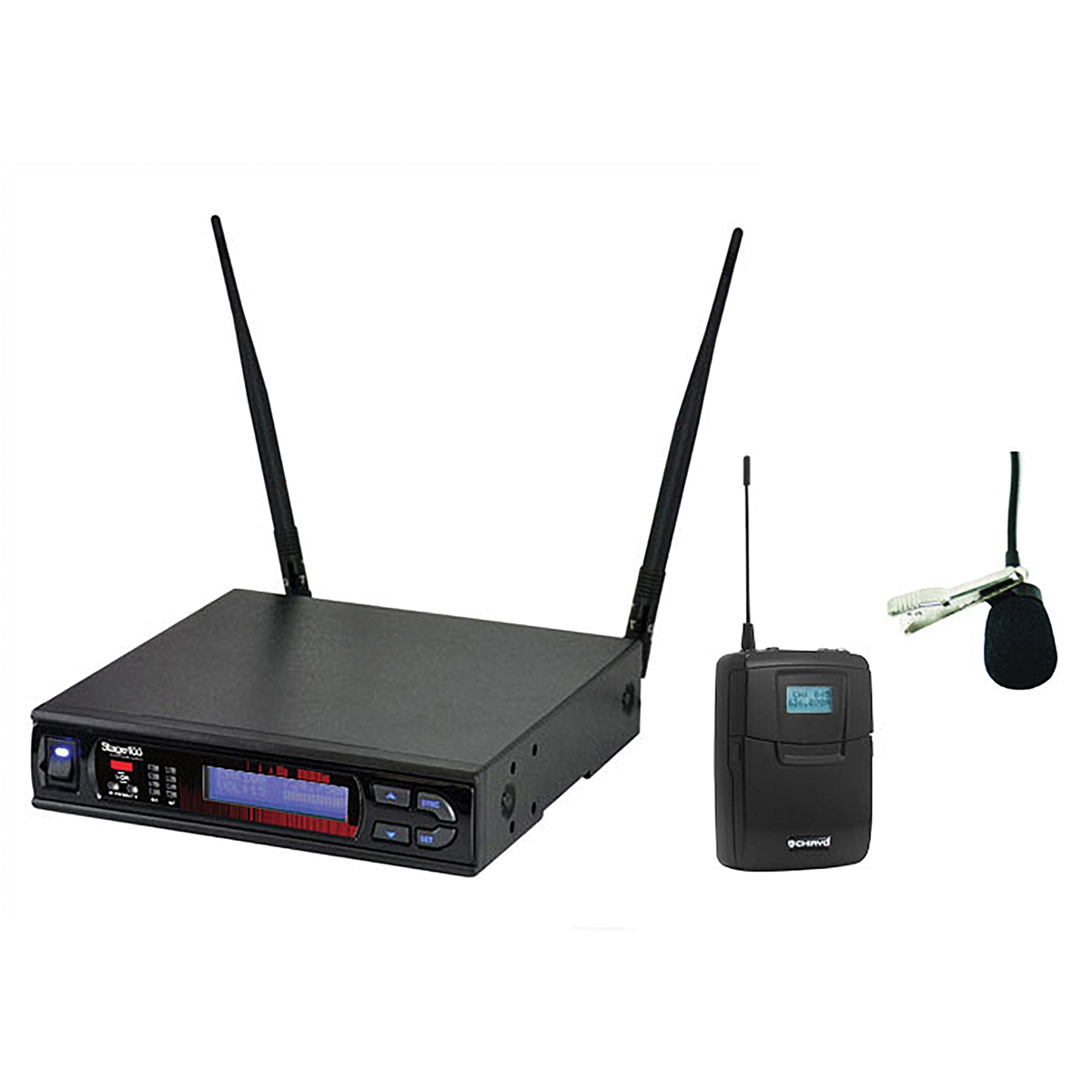

Product Stage-100 Series ; Wireless System Packages STAGE-100 system packages features THAT audio compansion which provides outstanding audio frequency response and also features a transmitter battery status indication on the receiver front panel. The receiver is a metal chassis TRUE DIVERSITY receiver with 100 channels of UHF frequency selection with spectrum scan feature and IR frequency upload/download. XLR patch lead and rack mounting kit are included in each package. Available Packages: (use our drop down selection menu at the top of your screen for exact pricing on your option choices) - Handheld System: Stage-100 Wireless Receiver SQ9000 IrDA Handheld Transmitter Lapel System: Stage-100 Wireless Receiver SM8000 IrDA Beltpack Transmitter MC16 Lapel Mic High Quality Headset System: Stage-100 Wireless Receiver SM8000 IrDA Beltpack Transmitter NHS777-C Headworn Mic (Beige) Guitar System: Stage-100 Wireless Receiver SM8000 IrDA Beltpack Transmitter MC12 Guitar Lead * Receiver also sold separately. Features 100 factory preset user-selectable UHF frequencies Advanced microprocessor control, excellent RF design with improved signal performance for interference free multi-channel operation Patented IrDA technology for 2-way data transfer between transmitter and receiver. Taiwan patent No. : 94128675 More than 10 channels can be operated simultaneously within a selected 25MHz bandwidth True Diversity design for high sensitivity, high selectivity, and high image/spurious rejections Easy to read, programmable, multi-function LCD on receiver SCAN function automatically searches for the next cleanest frequency Antennas can be either rear or front mounted Anti-interference Pilotone control and RF noise squelch circuitries RF/AF signal strength, Diversity A/B indicators Balanced (XLR)*1 / unbalanced (andPhi;6.3mm)*1 audio outputs Digital volume control for precision setting and low noise output Battery signal indicator on receiver panel monitors transmitter battery status Half-rack metal chassis, mountable with optional mount kit.(MP-90 for 1 unit, MP-92 for 2 units) Matching transmitters: SQ-9000 IrDA/SQ-8000 IrDA, SM-9000 IrDA/SM-8000 IrDA Specifications (Wireless Receiver Specifications) Frequency Range: UHF Switching Bandwidth: 25MHz Switchable Frequencies: 100 Channels: 1 Display Screen: LCD (BLUE) Oscillation Type: PLL Synthesised Frequency Stability: andplusmn;0.005% Receiving Method: True Diversity 2-Way synchronisation: Yes Sensitivity: -100dBm Image Rejection: andgt; 85dB S/N Ratio: andgt;110dB Peak Deviation: andplusmn;40KHz T.H.D: andlt; 0.5% Antenna Socket: TNC type Audio Outputs: XLR *1, 6.3mm *1 Squelch: RF/Noise/Pilotone squelch Power Supply: 100-240V AC, 12V DC/1.0A Chassis: Half-rack (metal) Dimensions (W*D*H, mm): 200*220*44 Weight (kg): 1.1 ** Note: The above specifications are subject to change without prior notice.
