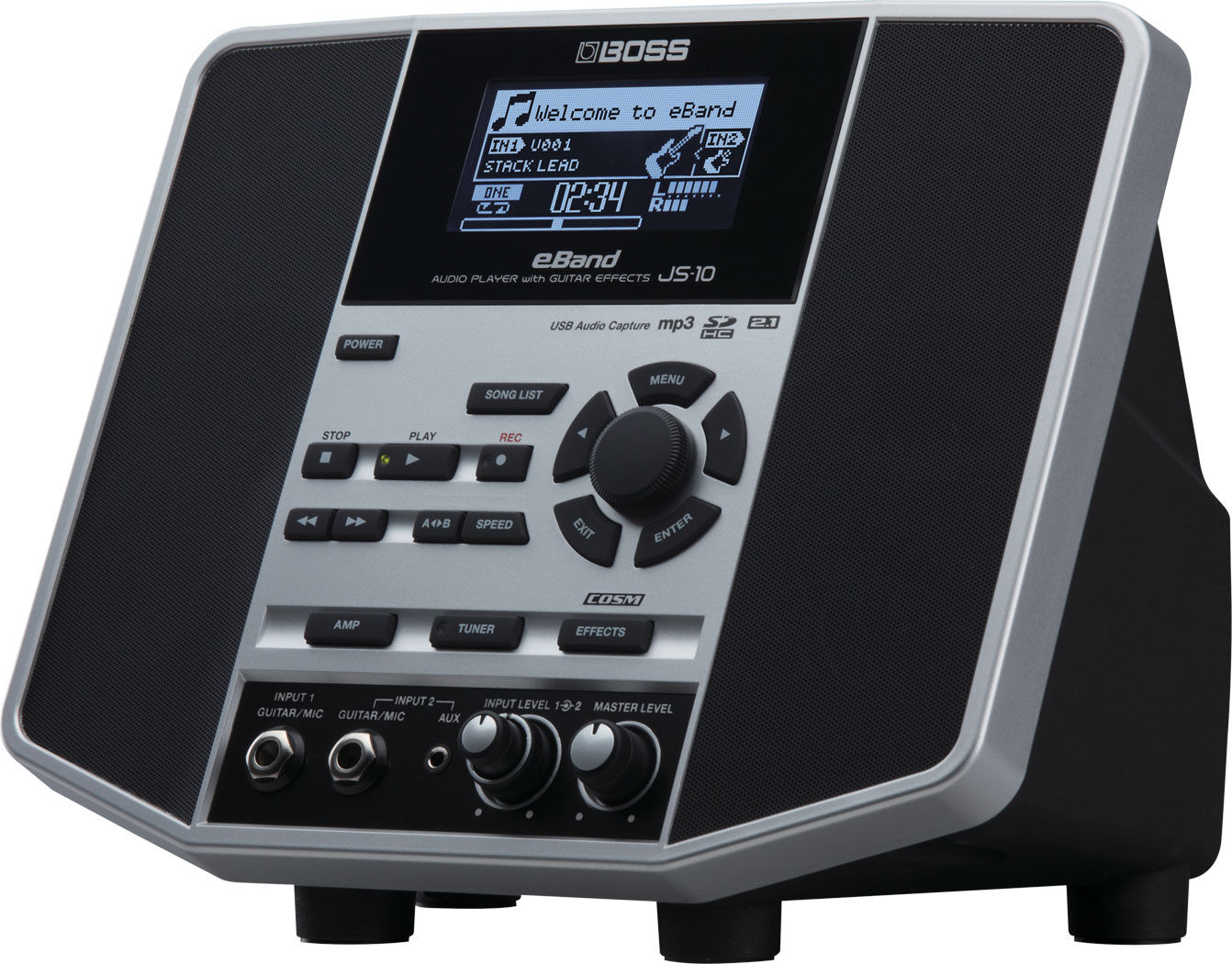

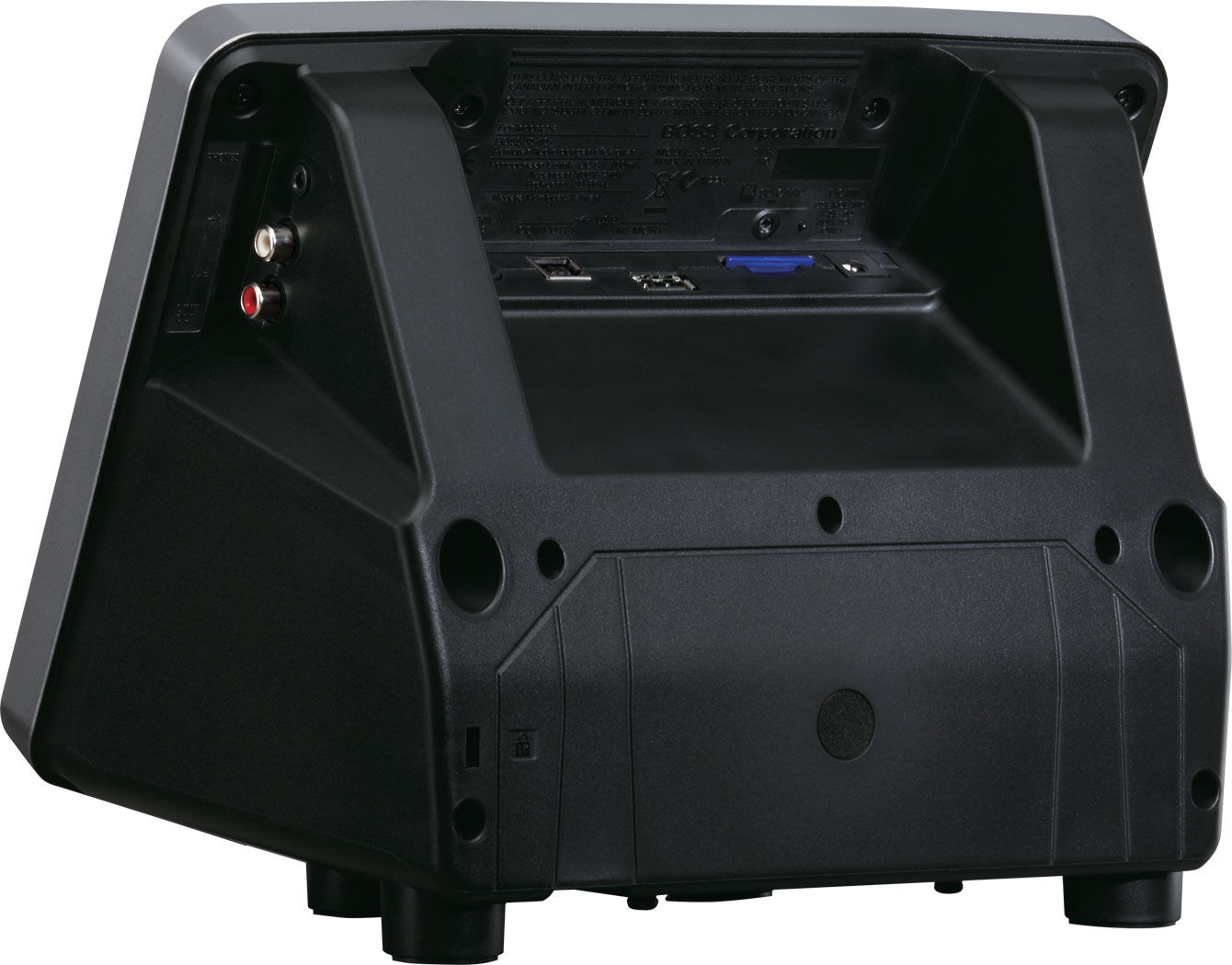

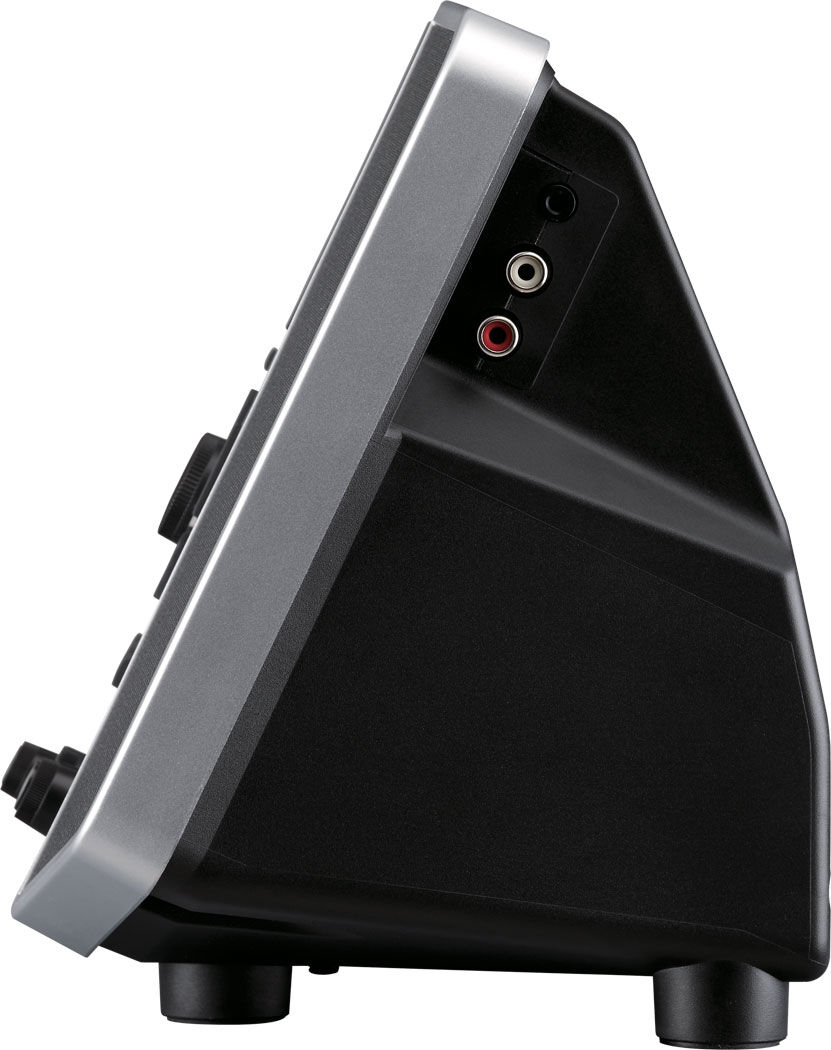

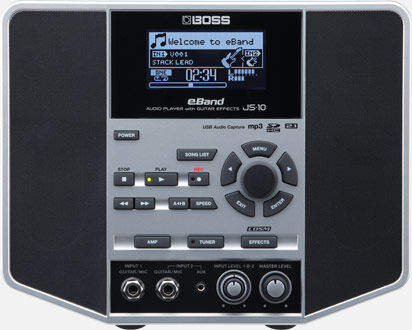

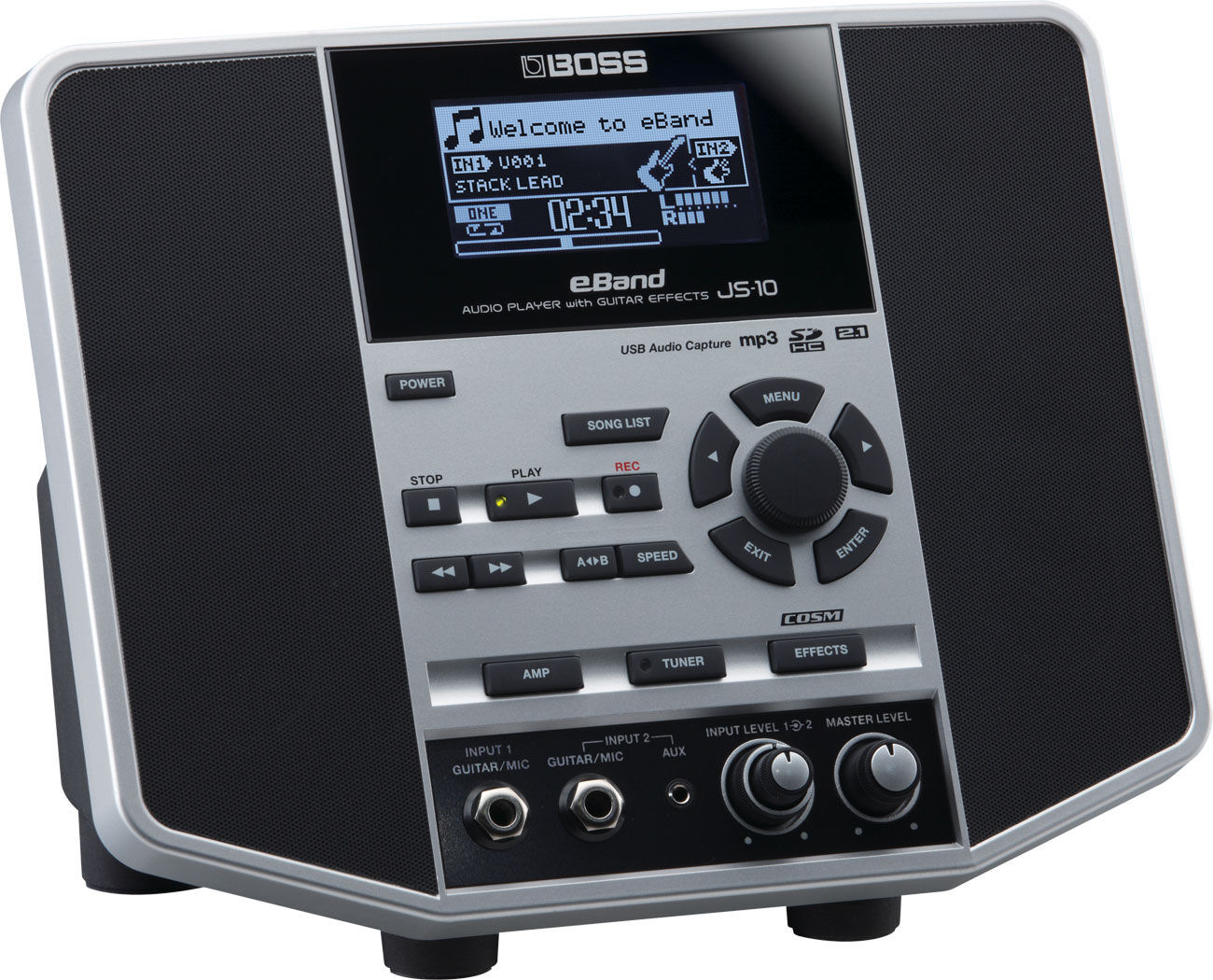

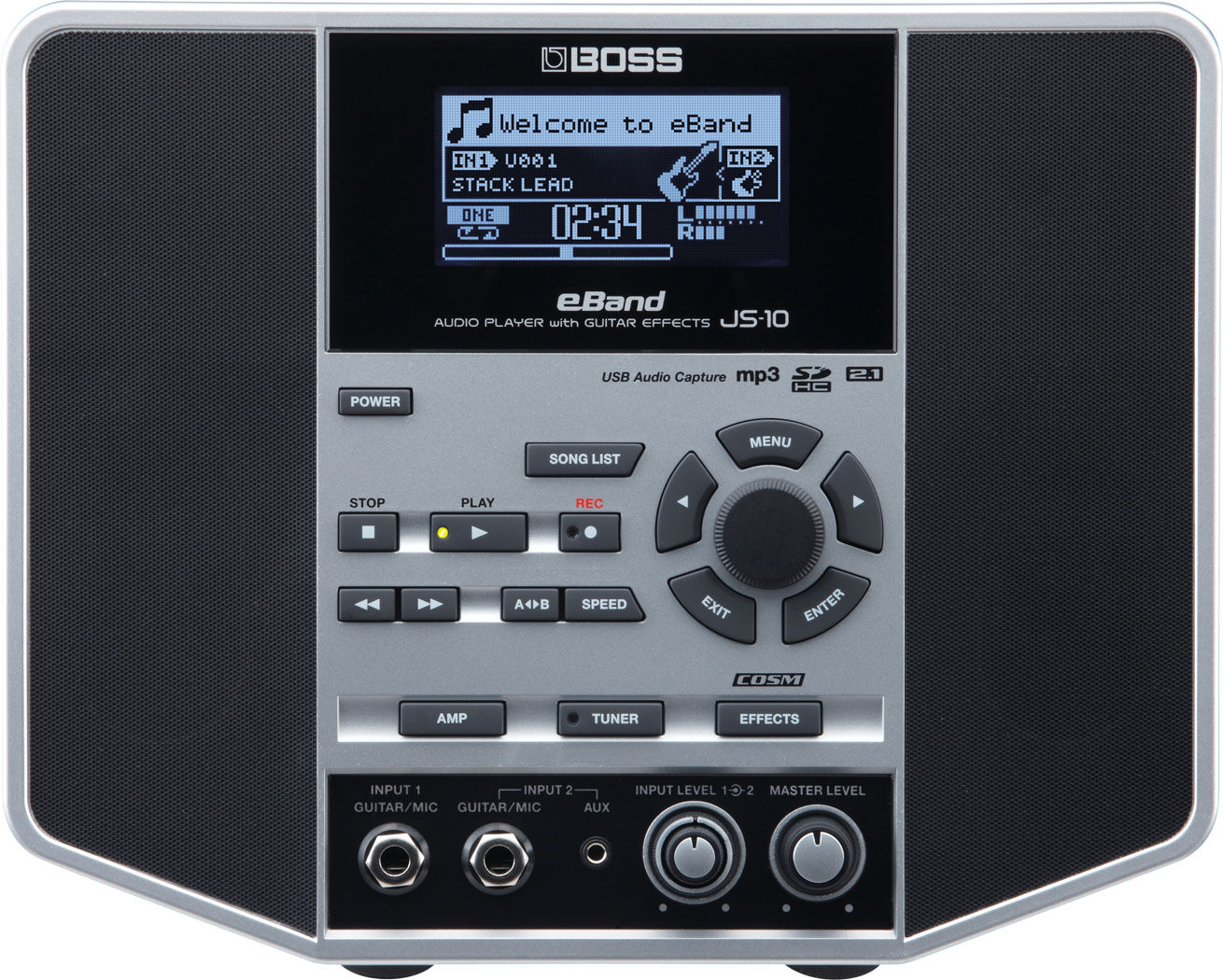

Boss eBand JS-10 Audio Player

New-Generation Jam Band with Full-Range 2.1 Sound

Grab your guitar or bass and microphone, plug into the new eBand from BOSS, and amaze your friends, family, and fans! The eBand JS-10 is self contained and small, but fills the room with full-range sound from its 2.1 sound system and pro BOSS effects. Jam with a large selection of onboard song tracks and audio loops, and add your own library of favorite songs to play along with via USB or SD media. You can easily change the tempo and key signature of the songs with high-quality results, and record your performances, too. eBand is the compact, all-in-one jam station packed with pro features and larger-than-life sound.

Capacity

SD/SDHC Card: 1 G to 32 GB

Data Types

eBand Songs (Recording/Playback)
WAV (Quantization bit rate: 16 bits, Playback only)
MP3 (Bit rate: 64 K to 320 Kbps, Playback only)

External Memory

USB Flash Memory (sold separately)

AD Conversion

24 bits + AF method

DA Conversion

24 bits

Sampling Frequency

44.1 kHz

Effect Patches

Preset: 130
User: 100

Effect Types

AMP
COMP/LIMITER
OD/DS
NOISE SUPPRESSOR
EQ
MODULATION
(PHASER, FLANGER, CHORUS, TREMOLO, ROTARY, UNI-V, PAN)
DELAY
REVERB
WAH

Recording Time (eBand Songs)

Hours per GB: 4 hours
32 GB: 130 hours
*The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs that were created.

Recording Time (WAV/16 bits/Stereo)

Hours per GB: 1.5 hours
32 GB: 50 hours
*The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs that were created.

Recording Time (MP3/128 Kbps/Stereo)

Hours per GB: 17 hours
32 GB: 550 hours
*The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs that were created.

Nominal Input Level

INPUT 1/2 GUITAR/MIC (INPUT GAIN = GUITAR): -10 dBu
INPUT 1/2 GUITAR/MIC (INPUT GAIN = MIC): -32 dBu
INPUT 2 AUX: -20 dBu

Input Impedance

INPUT 1/2 GUITAR/MIC jacks: 1 M ohm
INPUT 2 AUX jack: 47 k ohms

Nominal Output Level

LINE OUT jacks: -10 dBu

Output Impedance

LINE OUT jacks: 1 k ohm

Internal Speakers

2.1 channels (2-channel Stereo and Woofer)

Rated Power Output

12 W (Stereo Speaker 3.5 W x 2 + Woofer 5 W)

Display

Graphic LCD 132 x 64 dots (with backlit)

USB

Audio Mass Storage Class

Connectors

INPUT 1 GUITAR/MIC jack (1/4-inch phone type)
INPUT 2 GUITAR/MIC jack (1/4-inch phone type)
INPUT 2 AUX jack (Stereo miniature phone type)
PHONES jack (Stereo miniature phone type)
LINE OUT jacks (RCA phono type)
EXP PEDAL/CTL 1, 2 jack (1/4-inch TRS phone type)
USB MEMORY port (USB A)
USB COMPUTER port (USB B)
DC IN jack

Current Draw

700 mA

Accessories

AC adaptor (PSB-1U + AC Cord Set)
SD card
USB cable
Owner's Manual

Options (sold separately)

Footswitch (FS-5U)
Dual Footswitch (FS-6, FS-7)
Expression Pedal (FV-500L,FV-500H, EV-30, Roland EV-5)
AC adaptor (PSB-1U)

*When purchasing an AC adaptor, be sure to specify the adaptor (from the list that follows) that is designed for the region in which it will be used, and the voltage supplied there.
(PSB-120/PSB-120TW/PSB-230EU/PSB-230UK/PSB-240A)

Size and Weight

Width

264 mm
10-7/16 inches

Depth

169 mm
6-11/16 inches

Height

209 mm
8-1/4 inches

Weight

1.8 kg
3 lbs. 16 oz.
