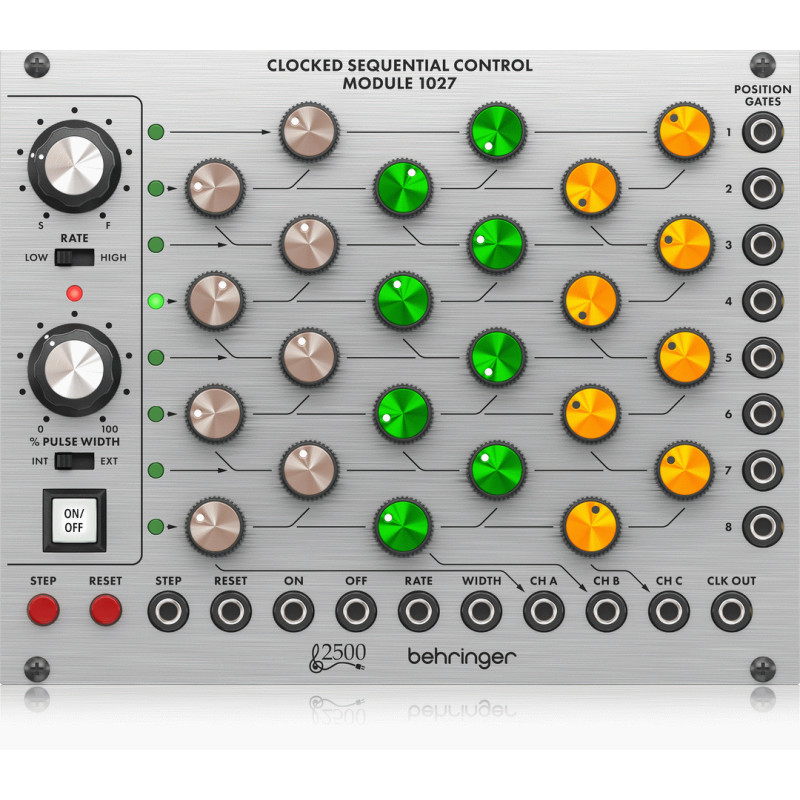

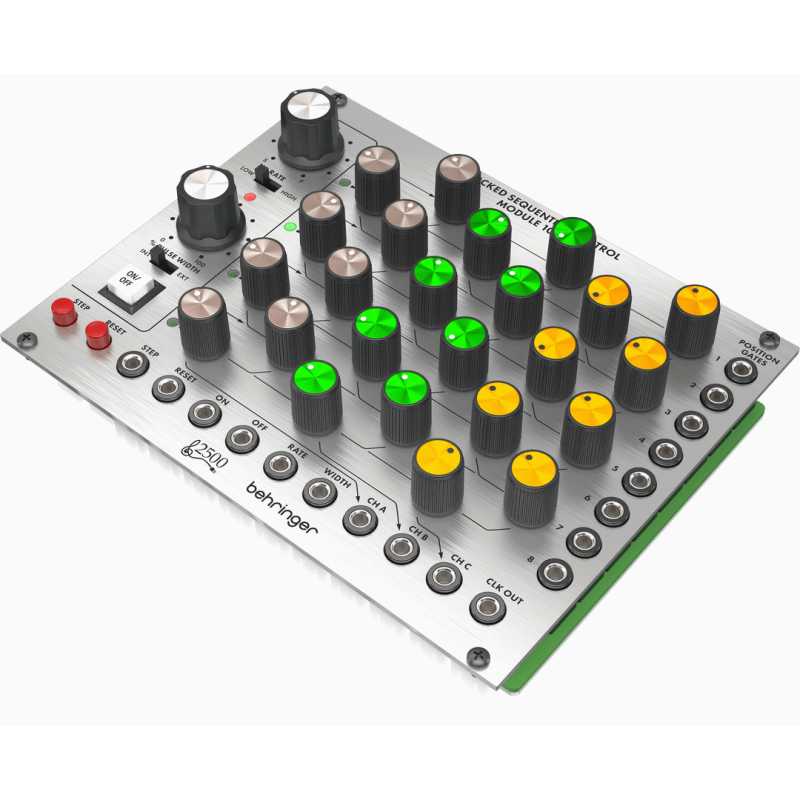

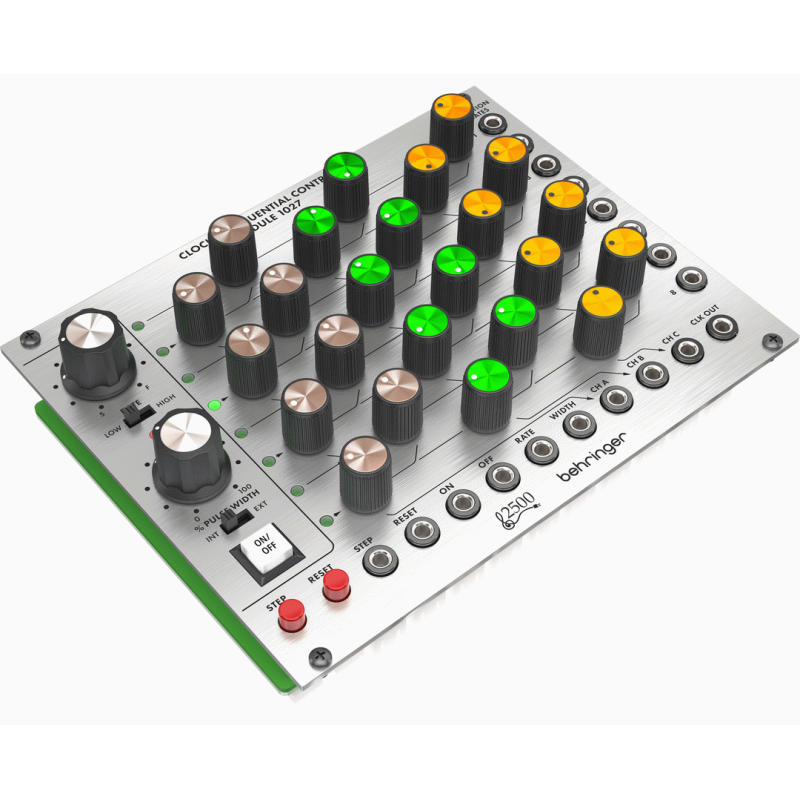

Behringer 1027 Clocked Sequential Control Module

Modular Synthesis The first 2500 series synth modules came out in the 70's and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better. CLOCKED SEQUENTIAL CONTROL MODULE 1027 This is the Behringer 2500 series CLOCKED SEQUENTIAL CONTROL MODULE 1027. An authentic reproduction of the original “System 2500” circuitry from the 70s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the CLOCKED SEQUENTIAL CONTROL MODULE 1027 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun. Sample and Hold The CLOCKED SEQUENTIAL CONTROL MODULE 1027 is a classic 8-step 3 channel sequencer. The 1027 features integral 8-step counter with a large rate control knob and low/high range switch to set the perfect tempo for your masterpiece, the counter also features a pulse width control and a switch to enable external control for added flexibility, a large illuminated on/off switch and manual step and reset switches. The 3 sets of 8 color coded knobs allow you full control over the 3 CV output voltages to control external VCO frequency or filter cut off frequency for each step of the sequence. Ins and Outs The 1027 gives you comprehensive connectivity. The step and reset inputs allow remote control of the step rate and sequencer reset, while the on/off inputs allow other modules to start and stop the sequence. With the rate and width inputs you have full CV control of step rate and pulse width. Included are 3 sequencer outputs, provided to control any modules of your choice, as well as a clock output from the step counter. And finally, 8 position gate outputs that allow you to trigger other modules from any of the 8 steps. Eurorack Ready Installing the CLOCKED SEQUENTIAL CONTROL MODULE 1027 is easy as it is designed to fit into a standard Eurorack case. Just connect the power cable to the power supply and screw in the module using the included screws. This allows for the 1027 to be mixed with other synth modules for a truly unique set up. Complete Your Setup Whether you’re just getting into modular synths or looking to complete your collection, the CLOCKED SEQUENTIAL CONTROL MODULE 1027 from Behringer is a great tool to have when creating amazing music. Get the CLOCKED SEQUENTIAL CONTROL MODULE 1027 from your local Behringer dealer today! Specifications Inputs On / of Type 2 x 3.5 mm TS jacks, DC coupled Impedance 100 K?, unbalanced Maximum input level 10 V Minimum switching threshold 2.5 V, trigger Rate Type 1 x 3.5 mm TS jack, DC coupled Impedance 100 K?, unbalanced Maximum input level 10 V, 1 V/oct. Width Type 1 x 3.5 mm TS jack, DC coupled Impedance 100 K?, unbalanced Maximum input level 10 V Step / reset Type 2 x 3.5 mm TS jacks, DC coupled Impedance 100 K?, unbalanced Maximum input level 10 V Minimum switching threshold 2.5 V Outputs Ch A / B / C Type 3 x 3.5 mm TS jacks, DC coupled Impedance 1 K?, unbalanced Maximum output level 10 V Clock out Type 1 x 3.5 mm TS jacks, DC coupled Impedance 1 K?, unbalanced Maximum output level 5 V Position gates Type 8 x 3.5 mm TS jacks, DC coupled Impedance 1 K?, unbalanced Maximum Output level 5 V Controls Rate 1 x rotary knob, Low (0.3 Hz to 15 Hz) High (10 Hz to 400 Hz) % Pulse width 1 x rotary knob, 5% to 95% Low / high 1 x sliding switch Int / ext 1 x sliding switch On / of 1 x button, LED backlit Sequencer voltage knobs 24 x rotary knob, 0 V to 10 V Step / reset 2 x momentary switch Power Power supply Eurorack Current draw 70 mA (+12 V), 30 mA (-12 V) Physical Dimensions 43 x 162 x 129 mm (1.7 x 6.4 x 5.1") Rack units 32 HP Weight 0.37 kg (0.81 lbs)
