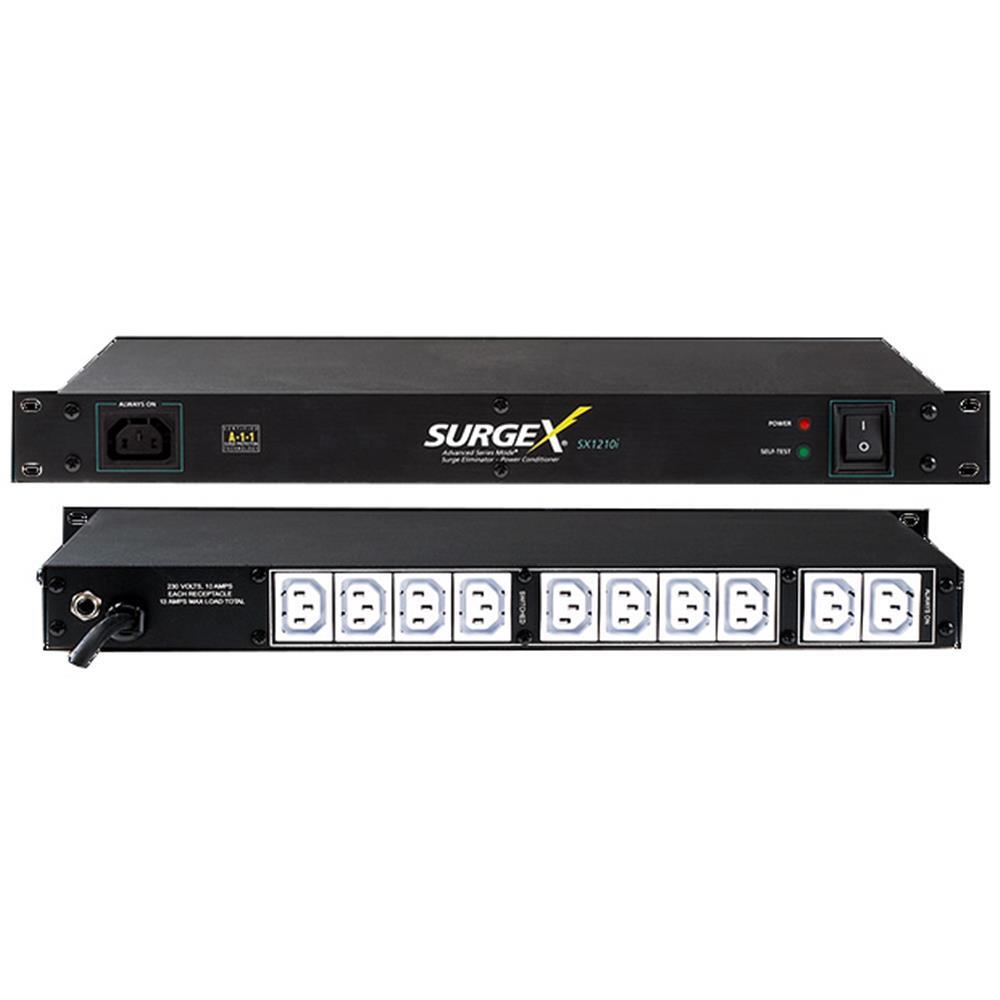

ASM surge eliminator 11 IEC 1RU EMI/RFI filter Surgex

THIS PRODUCT IS FOR ONLINE ORDER ONLY. SX-1210IRACK MOUNT Premium protection and conditioning for rack equipmentFeaturing Advanced Series Mode surge elimination technology the SurgeX Rack Mount product line safeguards sensitive equipment that relies on audio and video performance. Unlike common protection solutions our patented protection technology is non-sacrificial and eliminates surge energy up to 6000 volts without producing harmful side effects such as earth contamination or common-mode disturbances that can degrade the performance of AV systems. With SurgeX your connected equipment will be protected from destructive spikes surges and inductive transients that can cause disruptions and catastrophic damage.FEATURES:Steel magnetic shielding rackmount case2.5m power cordThermal circuit breaker overload protectionProtection Level: Advanced Series ModePower Configuration: 10A / 230VOutlets: 11 IEC OutletsRack Size: 1 RUSpecificationsLoad Rating: 10 Amps @ 230 Volts 50Hz/60Hz (single phase)Power Requirement (no load): 3 wattsSurge Let-Through Voltage (6000-volt surge): 0 voltsSafety Specification: IEC/EN 61643-1Performance Rating: Grade A Class 1 Mode 1EMI/RFI Filter Normal Mode (50-ohm load): 40dB @ 100 kHz; 50 dB @ 300 kHz; 50 dB @ 3 MHz; 50 dB @ 30 MHzEMI/RFI Filter Common Mode (50-ohm load): 18dB @ 300 kHz; 30 dB @ 1 MHz; 50 dB @ 5 MHz; 50 dB @ 20 MHzMaximum Applied Surge Voltage: 6000 voltsMaximum Applied Surge Current: Unlimited due to current limiting*Maximum Applied Surge Energy: Unlimited due to current limiting*Endurance (C62.41-1991 Category B3 pulses): 1 kV>500000; 3 kV>10000; 6 kV>1000Undervoltage Shutdown: N/AOvervoltage Shutdown: N/AMaximum Load Inrush Current During Power-up: N/ARemote Turn-on Applied Voltage Range: N/ARemote Turn-on Current Draw: N/AAuxiliary Relay Contact Rating: N/ALED Output: N/ALittlite** Connectors (QTY 2): N/ADimensions: 4.5cm H x 48.3cm W x 26.7cm D 1.75 H x 19 W x 10.5 DWeight: 5.0 kg (11 lbs)Temperature Range: 5º to 35º CHumidity Range: 5% to 95% R.H. non-condensing
