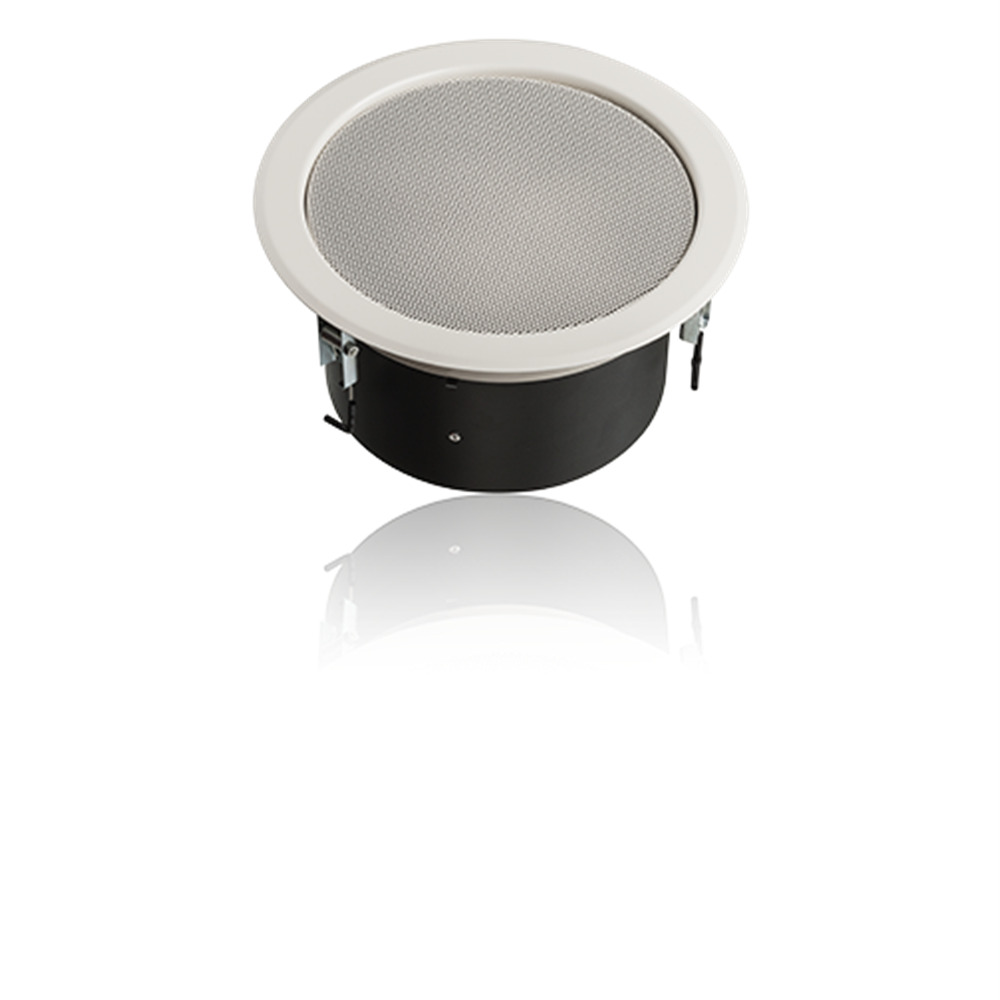

AS-SPCF-06W-65EN - 6W 6.5 En54 Ceiling Speaker SPCF-06W-65-EN54

THIS PRODUCT IS FOR ONLINE ORDER ONLY. SPCF-06W-65-EN54 EN54 CEILING SPEAKER6W 100V LOUDSPEAKERSIZE 6.5 (165MM)QUICK MOUNTSHOCK-RESISTANT HOUSINGHIGH EFFICIENCYEXCELLENT SOUND QUALITYFULLY CERTIFIED TO EN54-24The SPCF-06W-65-EN54 is a 6W 100V flush mount ceiling loudspeaker which has a 6.5 (165mm) full-range chassis providing excellent sound quality with speech and background music and which is certified to EN54-24. The speaker is fitted with a 100V transformer which has three power adjustment tappings of 6W 3W and 1.5W.The SPCF-06W-65-EN54 has a powder coated metal chassis and grille with the high quality finish giving good long-term protection and resistance to corrosion. The speaker is supplied with a rear fire dome and its enclosure is ingress protection rated to IP21C. As standard the speaker is coloured to match RAL9010 €œPure White' however the speakers can be supplied in any four-digit RAL or NCS colour as a special order.Quick and easy ceiling mounting is provided through the use of spring clamps with a possible ceiling thickness of between 2mm and 45mm and an inner ring attachment prevents the grille from falling. The 100V loudspeaker line cabling is connected by means of a two-pin ceramic block with rubber grommets being provided for the connections. or additional reliability a thermal fuse is provided and the speaker chassis is damp-resistant.Please note that although very thin ceilings can be used as a mounting surface it should be ensured that the ceiling thickness and strength are appropriate to the weight of the speaker and to the thickness and weight of the 100V line cable.The loudspeaker is optionally available with a DC blocking capacitor fitted in order to provide compatibility with DC loudspeaker line monitoring systems. The part number for this DC monitoring compatible version is SPCF-06W-65-EN54-DC. EASE data is available for this speaker on request.PRODUCT ATTRIBUTESPower Tappings: 6W / 3W / 1.5WFrequency Range: 404 10100 HzFrequency Response: 80 24000 HzSPL 1W / 1m peak: 102.5 dBSPL 1W / 4m peak: 90.5 dBSPL Pmax / 4m peak: 98.2 dBSensitivity: EN54-24 1W / 4m 78.0 dBDispersion (-6dB 500Hz): 180°Dispersion (-6dB 1KHz): 180°Dispersion (-6dB 2KHz): 128°Dispersion (-6dB 4KHz): 55°Temperature Range: -20 / +80 °CDimensions: 220 x 112 mmWeight (net): 1.30 kgColour: RAL 9010 €œPure White'Connector: 2-pin ceramic blockMounting: Quick fit mountingCeiling Cut-out: 198 mmIP Rating: IP21Maximum cable cross section: 8mm²Maximum cable cross section loop: 2 x 2mm²Packing Unit: 12
