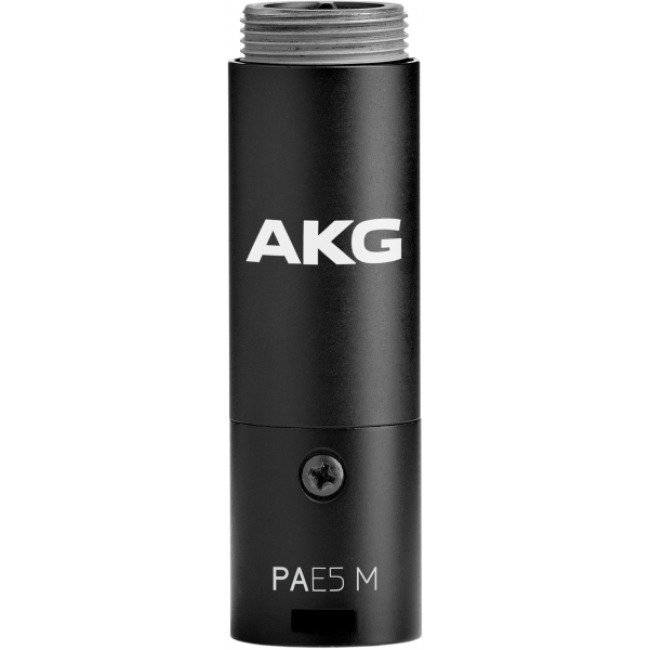

AKG 5-PIN XLR Phantom Power Module

Product Information: EXECUTIVE MODULARITY for use in theatres, houses of worship and conference rooms The PAE5 M reference phantom power module for fixed and mobile installation provides a five-pin XLR connector that allows the audio signal and the control voltage for a LED ring to be fed separately. Thus, the LED ring can be activated remotely by a 9-52V logic output from any automatic mixer to show the “mic on” status. With its wide voltage range the module will fit most available microphone mixers.The PAE5 M features a bass roll off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module. Extra feeding of LED ring to show mic statusfor use with automixers including logic outputs Highly reliable contacts to mounting modulesprevent contact problems and ensure extra-long life RFi Shield technologyprovides high immunity to radio-frequency interference Feeds all DAM+ Series capsulesfor highest flexibility Switchable bass roll offfor reduction of body noise and proximity effect Specifications: General Audio frequency bandwidth 20 to 20000 Hz Bass cut filter 150 Hz Recommended load impedance 2000 Ohms Powering Interface Voltage 9 to 52 V Current 3.5 mA Audio Output Type Balanced XLR Gender Male Contacts 5-pin Dimensions / Weight Height 65.5 mm Diameter 19.1 mm Net Weight 43 g
