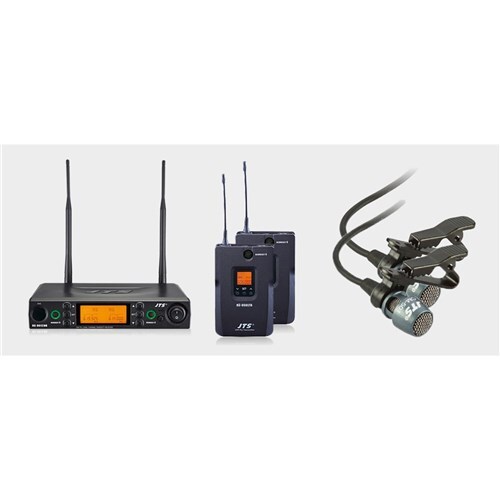

8012DB system 520-556MHz RU-8012DB+2 x RU-850LTB/CM-501 with 2 x beltpack transmitters

THIS PRODUCT IS FOR ONLINE ORDER ONLY. JP-8012DBKITBBB18012DB 2-channel system 520-556MHzincludesRU-8012DB receiver2 x RU-850LTB belt-pack transmitters2 x CM-501 lapel mics RU-8012DBBased on US-8001 successful experience RU-8012 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option. SPECIFICATIONSFrequency PreparationPLL Synthesized ControlCarrier Frequency Range520-556MHzFrequency SettingUltrasonic / REMOSET (Transmit)Receiving ModeAntenna DiversityBandwidth36MHzS/N Ratio> 105dBT.H.D 80dBRejection Ratio>80 dBFrequency Response50Hz~16KHz±2dBAntenna TypeBNC SocketAntenna Booster PowerDC12~15V/100mADisplay ContentsGroup Channel Frequency Antenna A/B Mute Display AF Meter RF Meter Battery StatusDisplayLCDControlsPower On/Off Group Channel Frequency Up/Down Frequency Scan Audio Level Lock-on Output PadAudio Output LevelRef/ ±22.5KHz Dev@1KHz ToneÃ�Ë€ 6.3 Phone Jack/ -10dBVXLR Jack/ -4dBV(Line) . -24dBV(MIC)AF Output Impedance600ÃŽ©SquelchPilot Tone Noise and MuteOutput Connector2 independent balanced XLR and 2 Ø6.3mm unbalanced.Power SupplyDC12~15V/500mADimension(m/m)212.3mm(W)* 38.3mm(H)* 144mm(D)RU-850LTB This innovative bodypack transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency Group/Channel Sensitivity RF Power and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver's front panel. Auto Power Off feature can be set OFF or ON with selection of 10 30 and 60 minutes without audio input. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.To cope with music instruments a pad of -20 dB is designed. Recharging circuit and connector are already built in case users want to upgrade the system. SPECIFICATIONSFrequency PreparationPLL Synthesized ControlCarrier Frequency Range520-556MHzFrequency SettingREMOSET U(Receive)RF OutpusLow / HighStability
