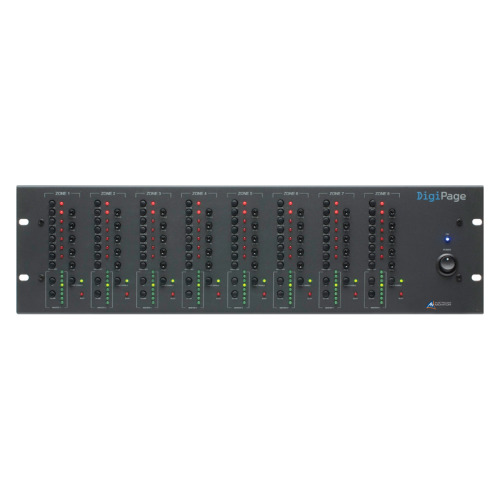

8 Zone Paging & Bgm System DIGIPAGE Australian Monitor

THIS PRODUCT IS FOR ONLINE ORDER ONLY. Product Number: DIGIPAGE The DigiPage is a 3 rack unit multi zone paging and source selection system that offers unprecedented flexibility for multi zone paging and source routing applications. 6 program inputs and one dedicated local microphone/line input are available to each of the 8 zone outputs. With LED indication for program/local input selection zone output level paging enable/disable and network busy the DigiPage provides extensive status indication to the user. The DigiPage is also expandable to 16 zones via a simple link cable to a second unit. Paging stations are available in 8 or 16 zone models allowing paging into any individual zone any combination of zones or All Call. Remote control panels are also available allowing source selection and volume control from within each remote zone. Both paging stations and remote control panels connect via an inexpensive and industry standard CAT5 cable network. An overall priority input is also provided for emergency or evacuation signals. The DigiPage is an incredibly versatile and well-featured product that provides a simple solution to the complex applications of multi zone paging and source routing. Features 6 balanced microphone/dual RCA line program inputs8 dedicated local inputs (one per output zone)8 Zone outs (expandable to 16 zone outs)Capacity for multiple remote paging microphonesRemote wall panels for source select and Volume controlEmergency input4 CAT5 ports which are used to connect to remote zone paging microphones DPRM remote panelsEasy front panel input selectionAC/DC operationSpecificationsZones: 8 MonoPaging Stations Connected: 16 (minimum)Program Inputs: 6 MIC or LinePaging Station P/N: DP8M or DP16MLocal Inputs: 1 MIC or Line per zoneRemote Source Control: DPRMB or DPRMWTones: YesMounting: 3RUInput Voltage: 100-240Vac 50-60HzWarranty: 5 yearsProduct Dimensions:(W x D x H) 483mm x 180.5mm x 133mm Shipping Dimensions(W x D x H) 537mm x 255mm x 258mmNet Weight: 7.0 KgShipping Weight: 7.6 KgGTIN EAN: 9323383010895
