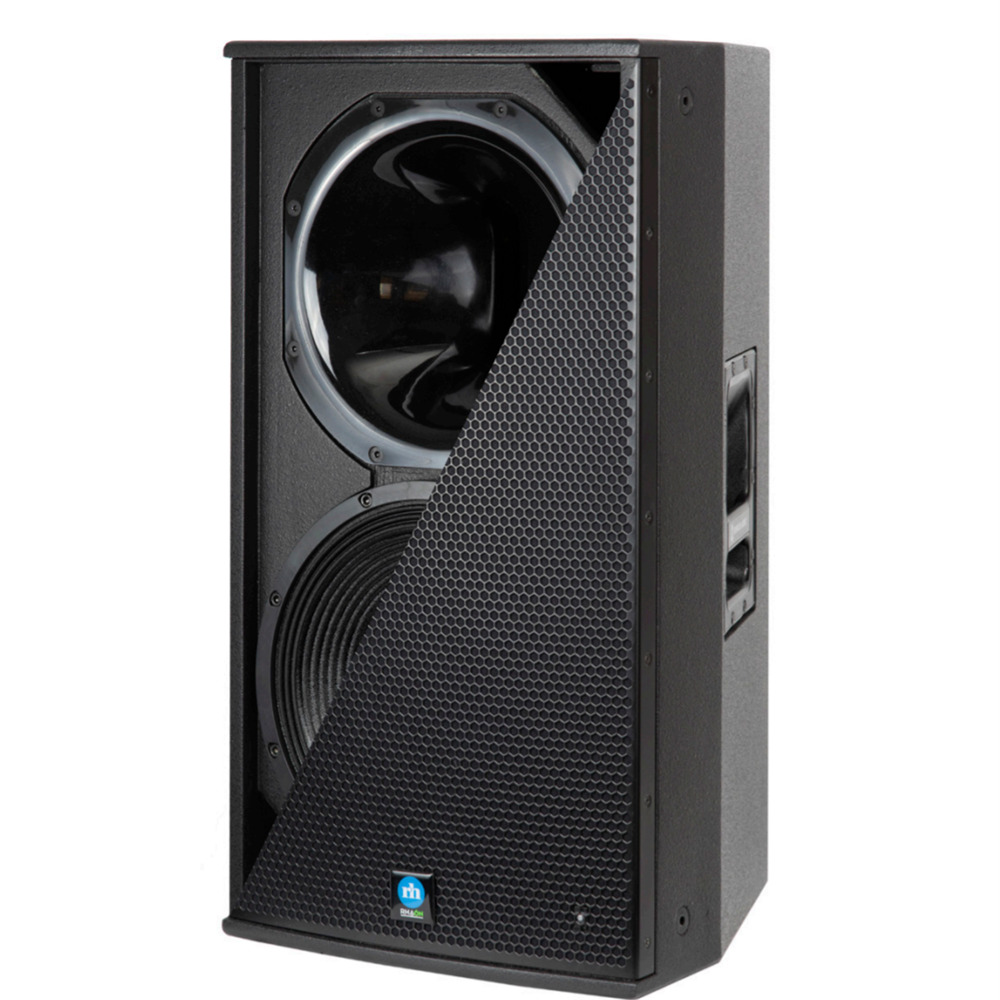

3-Way 12 Powered+Dsp P3-12-RN Renkus Heinz

THIS PRODUCT IS FOR ONLINE ORDER ONLY. P3-12The P3-12 offers the sonic and performance advantages of a three-way loudspeaker in a cabinet the size of most two-ways. The CoEntrant CDT3 mid-high driver allows the use of a single optimally sized Complex Conic horn. Not only does this insure consistent directivity through crossover but also allows the horn to be ideally sized for consistent directivity through the low-mid crossover as well. Only Renkus-Heinz can combine this level of performance fidelity and power in such a compact easy to install or transport loudspeaker.Technical DataFrequency Response: 60 Hz. to 20 kHz. (+ or - 3 dB)Sensitivity: 1.0 volt for rated output analogMaximum Peak SPL: 133 dB-SPL@1 watt/1 meterDispersion: 90 h x 40 v (Optional 60 h x 40 v)Crossover Frequency: All Models 480 Hz & 2.5 kHz active electronicEnclosure: 3/4 in./19 mm Lite Ply plywoodGrille: 16 GA powder coated plated steelFinish: Black (RAL9010) or White (RAL9011) paint standard. Custom colors optional.Weight: 59 lbs/27 kgDimensions: 3620 mm w x 699 mm h x 394 mm dSA1250 Amplifier SpecificationsAudio Connections: All Models 2 x XLR-3 In & Loop-out Analog and AESNetwork Connections: All Models 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)All Models 2 x RJ45 Looping Ethernet/RHAONMax Input Level: All Models +22 dBu Analog 0 dBFS digitalUser DSP: All Models Eight fully parametric filters high and low shelf high and low pass filters delay to 340 ms. Software: All Models RHAON IIPower Output: All Models LF= 1000 watts @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on both channels protects the drivers.Mains Voltage: All Models 100-240 volts 50/60 Hz auto-switchingPower Consumption: All Models Idle: 200 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)Power Connector: All Models Neutrik powerCON TRUE-1Temperature Limits: All Models Max.: 140º F/60º C with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.Latency: All Models 6.25 msAll Models 6.25 ms Analog & AES6.25 ms + Dante transport latency
