2-Way Full Range 2X8 Power TA82-A Renkus Heinz

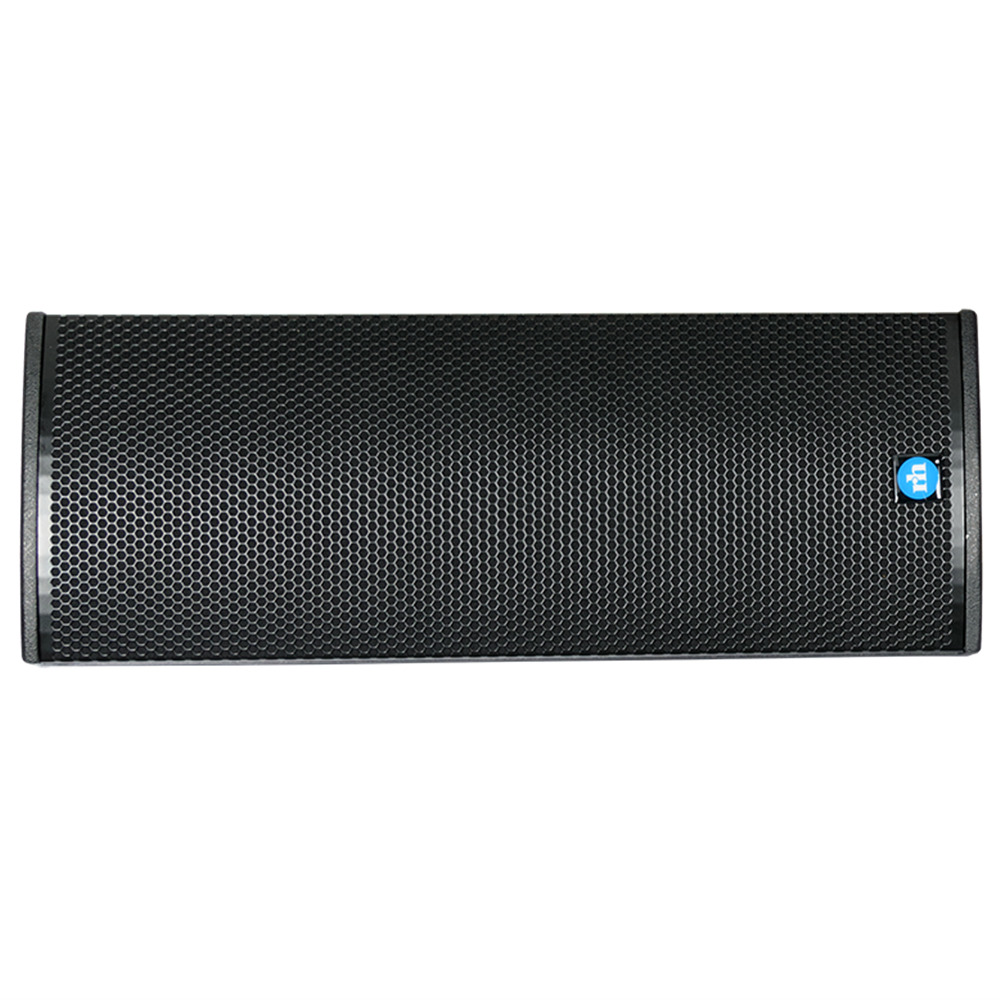

THIS PRODUCT IS FOR ONLINE ORDER ONLY. TA82-ATwo-Way Complex Conic Loudspeaker SystemThe T82 features dual 8-inch Heavy-Duty LF drivers with carbon fiber cones and a 1-inch Extended Range Titanium HF Driver.TA82 Powered LoudspeakersEquipped with SA625 Series AmplificationTX82 Non-Powered LoudspeakersFor use with external amplificationKey FeaturesMiniaturized Design Outstanding full-range 90 Hz to 20 kHz performance in a extremely compact space-saving design.Exclusive Complex Conic Design Complex Conic Horn provides superior pattern control with low distortion.Coverage Pattern Complex Conic Horn provides smooth 120º x 60º coverage.1-inch Extended Range Titanium HF Driver Provides smooth low distortion high frequency performance to 20 kHz and beyond.Dual Heavy-Duty 8-inch Woofers With carbon fiber cones easily handles 500 Watts of program power.Built-in Crossover Eliminates need for a separate electronic crossover and bi-amplification.ApplicationsVirtually any application where size is a critical issue and high output and outstanding sonic performance is required.Ideal for many side and front fill applications; mounts inconspicuously in walls or ceilings under andover balconies etc.Foreground music systems in shopping malls retail stores offices etc.Multi-channel playback systems in dance clubs (with optional subwoofers) compact floor monitors cue loudspeakers for live music etc.Technical InformationMax SPL: 126 dB PeakDispersion: 120° H x 60° V or 90° H x 60° V RotatableFreq. Response: ± 3 dB 90 Hz to 20 kHzHF Driver: 1 Titanium driver model SSD1445-16; 20 W AESLF Driver: Dual 8 woofer model SSL8-20; 1 VC; 125 W AES @ 16 OhmsPower Rating: See SA625 AmplifierConnectors: See SA625 AmplifierEnclosure: 19 mm Lite Ply perforated metal grilleHardware: 12-point Universal Mounting Hardware (Metric M6 threads)M10 U-bracket attachment pointsFinish: Black or White Paint standard. Custom Color Weather Resistant optional.Dimensions: 724 mm H x 262 mm W x 267 mm DWeight: 34 Lbs / 15.4 kg NetSA625 Amplifier SpecificationsAudio Connections: 2 x XLR-3 In & Loop-out AnalogMaximum Input Level: +22 dBu AnalogLatency: 6.25 msPower Output: LF= 500 watts @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.Mains Voltage: 100-240 volts 50/60 Hz auto-switchingPower Consumption: Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)Power Connector: Neutrik powerCON TRUE-1Temprature Limits: Max.: 140º F/60º C with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
